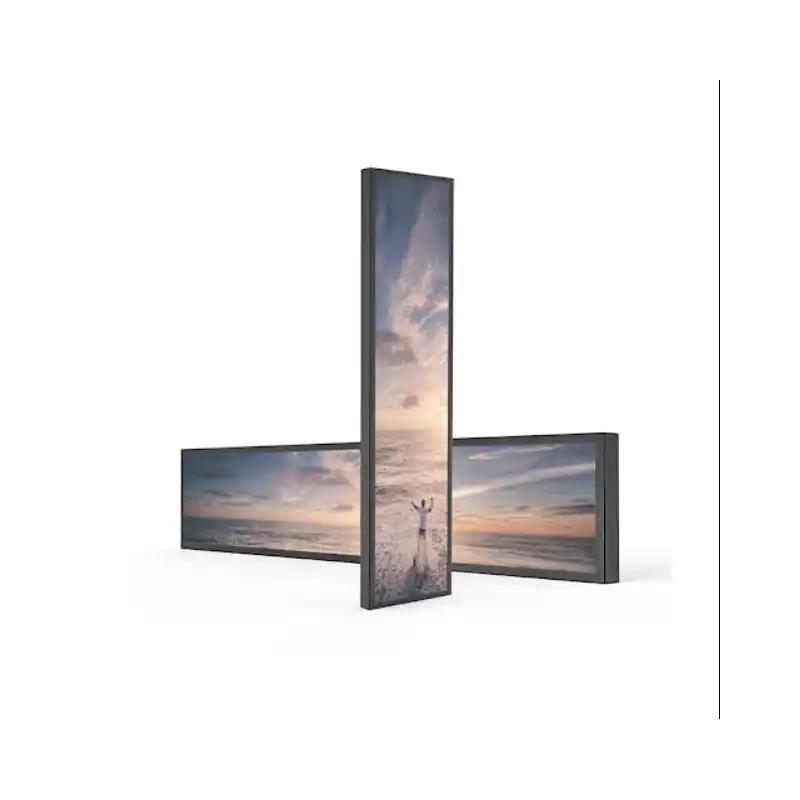

16.4" High-Brightness Bar-Type Android Advertising Display for Retail & Supermarket

The 16.4-inch high-brightness advertising screen (BR16L1B-N) from Shenzhen Brownopto Technology is a premium Android-based digital signage display engineered for both indoor and semi-outdoor environments. With an impressive brightness of 1000 cd/m², this screen delivers outstanding visibility even under direct sunlight, making it ideal for storefronts, gas stations, transportation hubs, and drive-thru menu boards. It features a unique 1366×238 resolution in a narrow widescreen format, perfect for dynamic scrolling text, real-time updates, and multi-zone content display.

Powered by a Rockchip PX30 Quad-Core Cortex-A35 processor running at 1.5GHz and equipped with Android 8.1, the BR16L1B-N supports smooth video playback, web rendering, and remote content management. It comes with 1GB DDR3 RAM and 8GB eMMC storage (expandable up to 64GB), ensuring reliable performance for continuous operation. Connectivity includes 2.4GHz WiFi and Bluetooth 4.0, enabling seamless over-the-air updates and scheduled power control.

Key Features

• Display Size: 16.4 inch TFT-LCD

• Resolution: 1366 × 238 pixels (Narrow Widescreen)

• Brightness: 1000 cd/m² (High Brightness)

• Operating System: Android 8.1

• Processor: Rockchip PX30 Quad-Core Cortex-A35 @ 1.5GHz

• Memory & Storage: 1GB DDR3 + 8GB eMMC (selectable up to 2GB/64GB)

• External Storage: Supports up to 64GB TF card

• Connectivity: 2.4GHz WiFi, Bluetooth 4.0

• Power Supply: DC 12V 3A (included)

• Remote Management: Scheduled on/off, OTA updates

• Viewing Angle: 178° H / 178° V

• Contrast Ratio: 3000:1

• Mounting: Wall-mount plate included

• Certifications: CE, FCC

• Warranty: 1 year

Technical Specifications

Optional Information Release System

• Multiple Format Playback: Displays images, text, videos, web pages, and more.

• Multi-Zone Visual Editing: Supports flexible content layout with template management.

• Distributed Remote Management: Enables remote updates and scheduled power on/off.

• Multi-Account Management: Assign over 50 types of permissions for team access.

• System Monitoring & Logs: Real-time status tracking and log export to Excel.

Application Scenarios

• Retail: Storefront ads, promotional banners, product info

• Drive-Thrus: Menu boards with high sunlight readability

• Gas Stations: Fuel price signs, digital advertising

• Transportation: Bus stops, parking lots, directional signs

• Hospitality: Hotel lobbies, restaurant waitlist displays

• Industrial: Factory dashboards, warehouse logistics
