24 INCH Android Bar Display 1920x360 – High Brightness

Model:BR24XCB-N Size:24inch Display Type:BAR Touchscreen:NO Interface:USB Resources: 24 INCH Strip Type Advertising Screen

Inquiry Custom

DESCRIPTION

Model: BR24XCB-N | 1920×360 | 300 Nits | Android 8.1

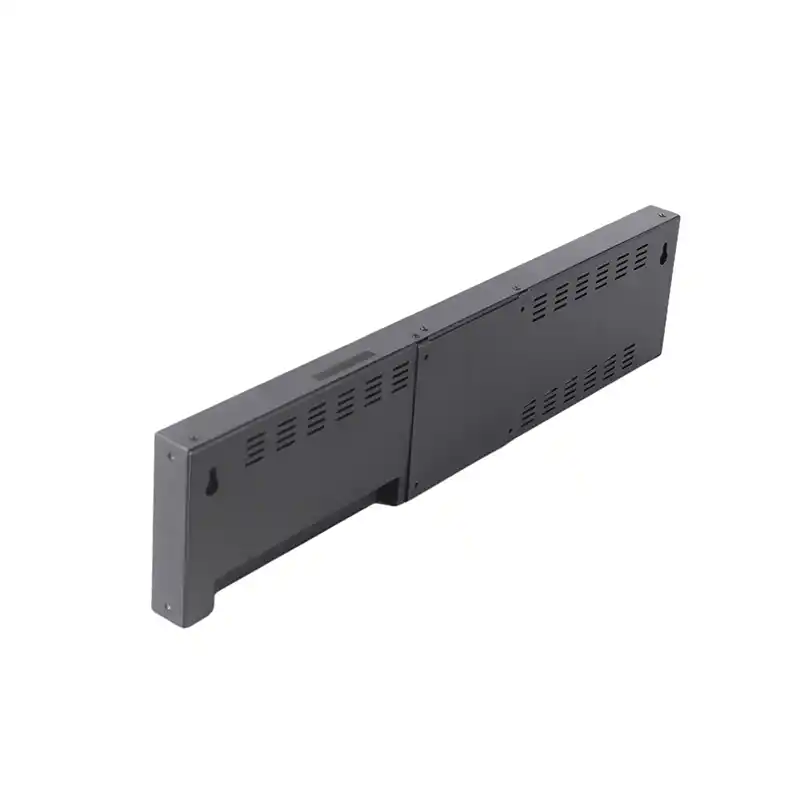

The Brownopto BR24XCB-N is a 24-inch ultra-long bar display designed for premium digital signage in retail, transportation, and public spaces. With a unique 1920×360 resolution, this display offers **double the vertical pixels** compared to standard narrow bar screens, enabling richer content layout, multi-row text, and dynamic video playback.

Powered by Android 8.1 and a Rockchip PX30 Quad-Core processor, it supports seamless playback of images, videos, web pages, and real-time data. Integrated 2.4GHz WiFi and Bluetooth 4.0 enable remote content updates, scheduled power on/off, and centralized management via cloud-based software—perfect for deploying across multiple locations.

📏 24" Bar Display

Extra-long format ideal for above-door signage, shelf strips, and transit boards

🖼️ 1920×360 Resolution

High vertical resolution for multi-zone layouts and smooth video

🤖 Android 8.1 OS

Supports apps, web content, and OTA updates for flexible deployment

📡 Remote Management

Schedule content, power control, and monitor status across fleets

Technical Specifications

Model	BR24XCB-N
Display Size	24 inch
Display Area	597.888(H) × 112.104(V) mm
Resolution	1920 × 360
Brightness	300 cd/m²
Contrast Ratio	1000:1
Viewing Angle	89°/89°/89°/89° (CR≥10)
Color Depth	16.7M, 72% NTSC
Backlight	WLED
Processor	Rockchip PX30 Quad-Core A35
Operating System	Android 8.1
RAM	1GB
Built-in Storage	8GB (optional 16/32/64GB)
External Storage	Up to 64GB TF card
Connectivity	2.4GHz WiFi, Bluetooth 4.0
Power Input	DC 12V via Type-C
Power Consumption	≤25W
Dimensions	617.5 × 137 × 27.2 mm
Net Weight	≤2.6 kg
Certifications	CE, FCC
Warranty	1 year
