Ultra-Wide IPS Screen with MIPI Interface | Model: BR109-I4018J30A1
Key Features
✅ Large Size: 10.9 inch Active Area
✅ High Resolution: 1480 x 320 Pixels
✅ High-Speed: MIPI DSI Interface
✅ Wide Viewing: IPS Technology
✅ Industrial Grade: -20°C to 70°C
✅ Brightness: 800 nits (Typ)
Typical Applications
This 10.9-inch ultra-wide format is engineered for complex data visualization and embedded control systems.
🏭 Industrial Automation
PLC Touchscreens & Process Control: The 1480px width is ideal for displaying long conveyor timelines, ladder logic diagrams, and multi-channel monitoring data without horizontal scrolling.
🏠 Smart Home & Building
Wall-Mounted Control Panels: Perfect for smart home hubs and building management systems where a sleek, horizontal form factor integrates seamlessly into modern architecture.
🏥 Medical Equipment
Diagnostic & Monitoring: The MIPI interface and industrial temperature range suit patient monitors and diagnostic devices requiring high reliability and low power consumption.
🚚 Transportation
Vehicle-Mounted Terminals: The robust design ensures stable performance in logistics handhelds, forklift displays, and car infotainment systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display Size | 10.9 inch (Diagonal) |
| Resolution | 1480 x 320 (WXGA) |
| Active Area | 57.98(H) x 268.18(V) mm |
| Pixel Pitch | 0.1812 x 0.1812 mm |
| Interface | MIPI DSI (4 Data Lanes) |
| Viewing Angle | Full Viewing (IPS) |
| Backlight | White LED, 180mA (Typ) |
| Operating Temp | -20°C to +70°C |
| Storage Temp | -30°C to +80°C |
Product Overview

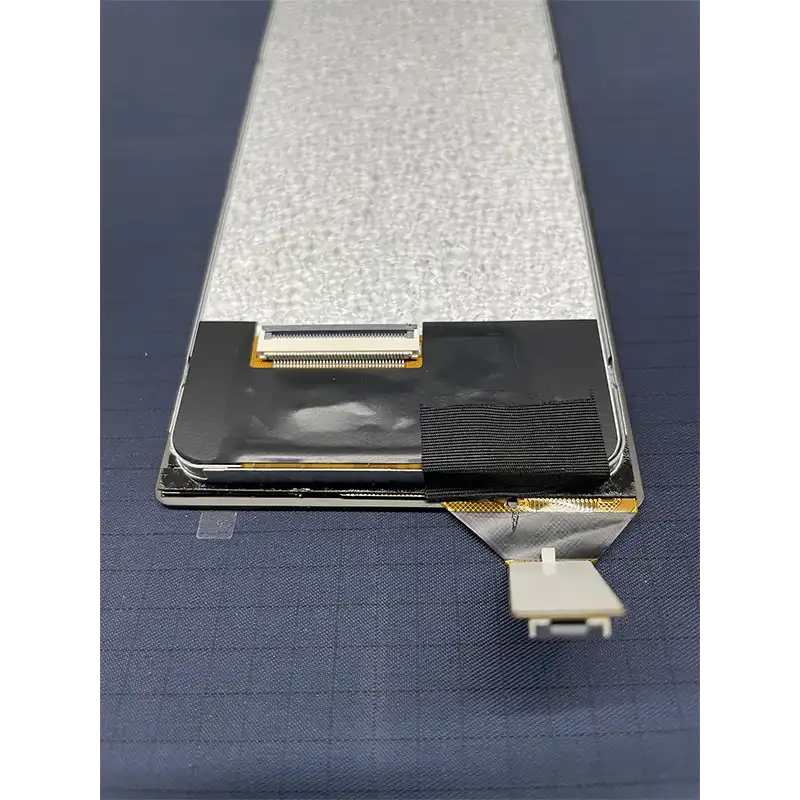

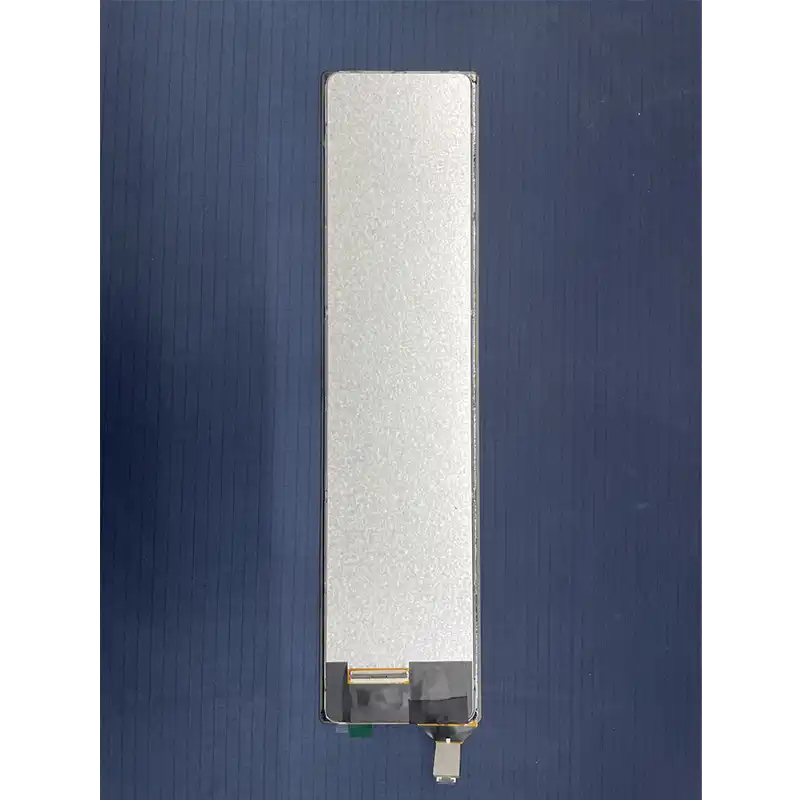

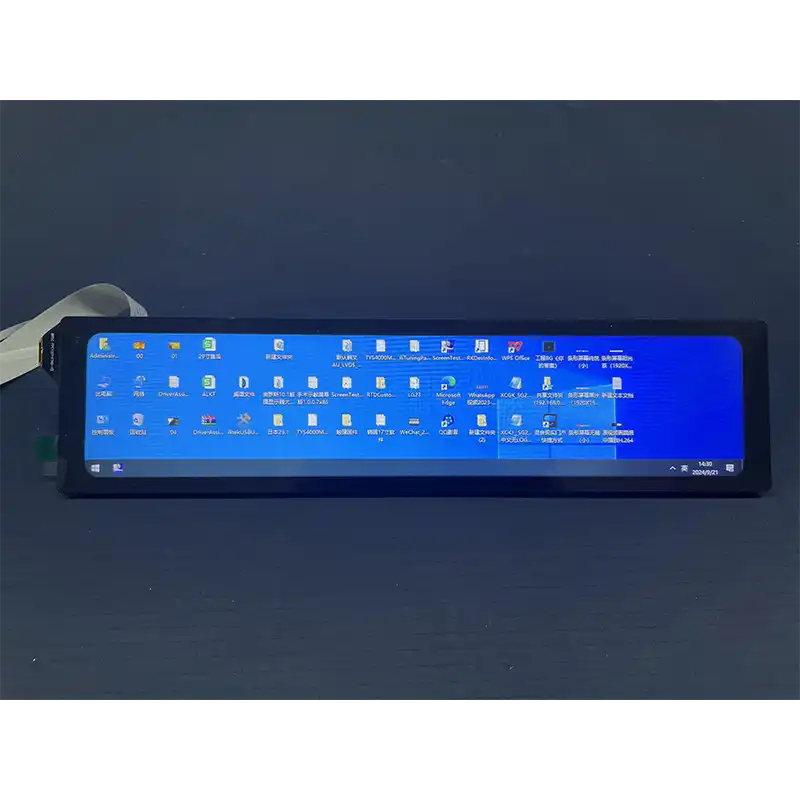

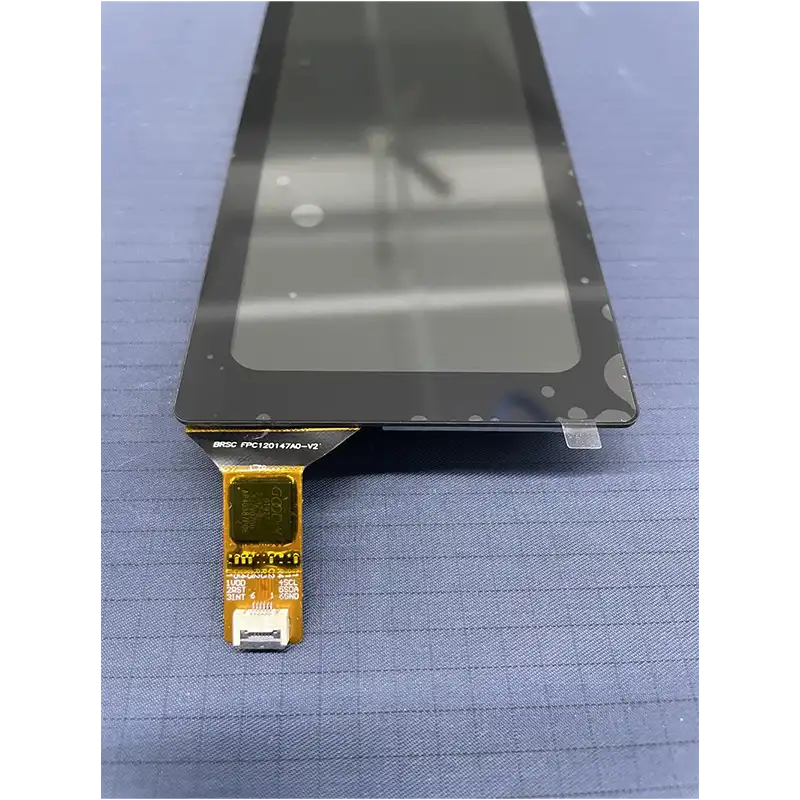

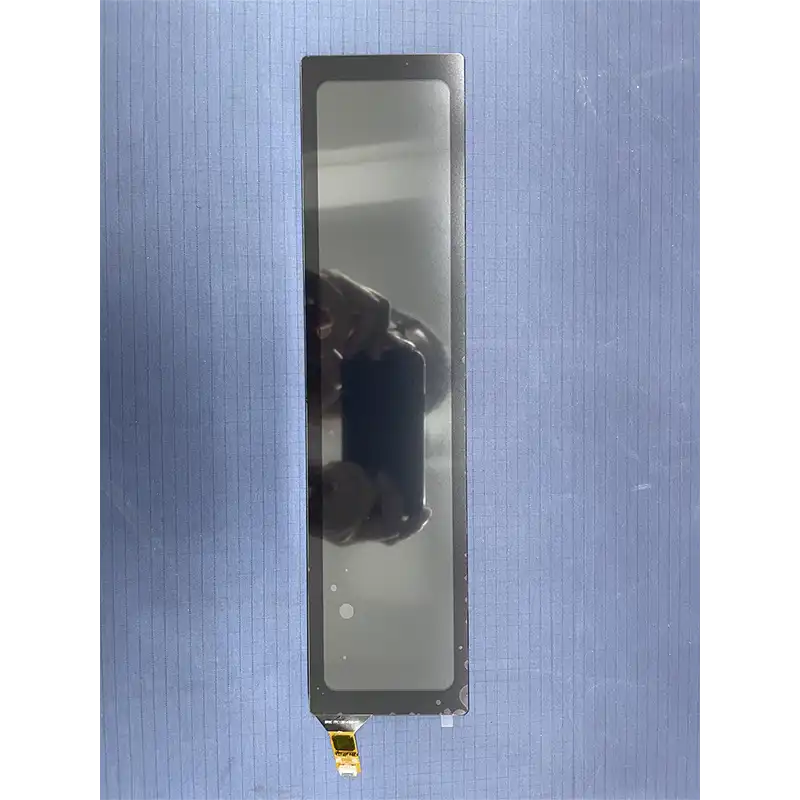

The BR109-I4018J30A1 is a high-performance 10.9-inch TFT LCD module designed for demanding embedded applications.Utilizing advanced amorphous silicon TFT technology, this display offers a unique 1480x320 resolution, providing an expansive horizontal workspace ideal for data-intensive interfaces.

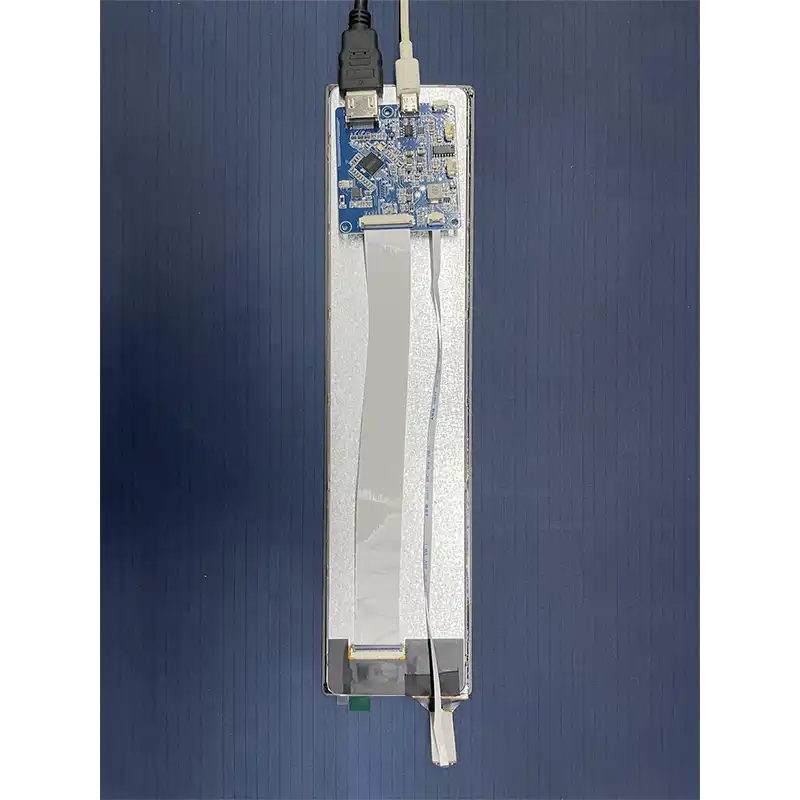

Equipped with a MIPI DSI interface, this module ensures seamless integration with modern embedded processors and Android systems, supporting high-speed data transmission for fluid graphics and video playback. The IPS (In-Plane Switching) panel guarantees excellent color reproduction (16.7M colors) and wide viewing angles, ensuring consistent image quality from any perspective.
Built for industrial environments, this module features a rugged design with an operating temperature range of -20°C to 70°C. It includes a high-brightness White LED backlight delivering 800 cd/m² (typical), ensuring clear visibility even in bright ambient light conditions.
