The 8-inch Industrial Monitor is a high-performance surveillance display designed for industrial environments, security systems, and control rooms. Featuring a native resolution of 1024×768, excellent brightness, wide viewing angles, and rugged construction, this monitor ensures clear visibility and reliable operation under demanding conditions.
Key Features
Resolution: 1024 (RGB) × 768
Aspect Ratio: 4:3 standard format
High Contrast: 800:1 for sharp image quality
Brightness: 300 cd/m² for clear visibility
Viewing Angles: 89°/89°/89°/89° (CR≥10)
Response Time: ≤12ms for smooth motion
Frequency: 60Hz–75Hz adaptive
Signal System: PAL / NTSC compatible
Durability: Operating temperature 0°C–50°C
Technical Specifications
| Parameter | Value |
|---|---|
| Screen Size | 8 inches |
| Resolution | 1024 × 768 |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 800:1 (Typ.) |
| Brightness | 300 cd/m² |
| Viewing Angle | 89°/89°/89°/89° (CR≥10) |
| Response Time | ≤12 ms |
| Frequency | 60Hz–75Hz |
| Signal System | PAL / NTSC compatible |
| Input Signal | BNC |
| Power Supply | DC 12V |
| Operating Temperature | 0°C – 50°C |

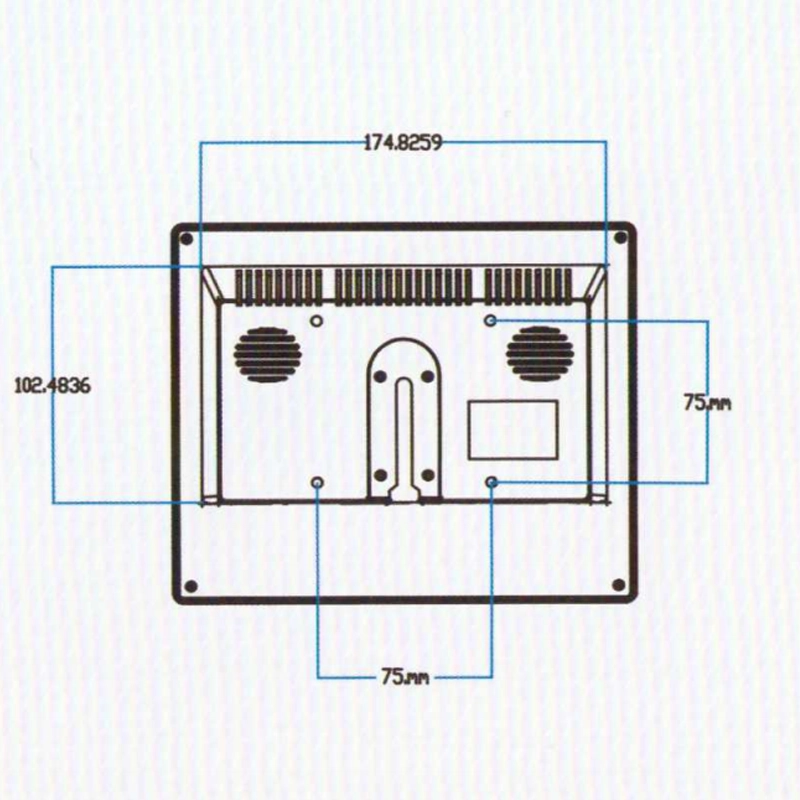

| Mounting Options | VESA 75×75mm, desktop stand |

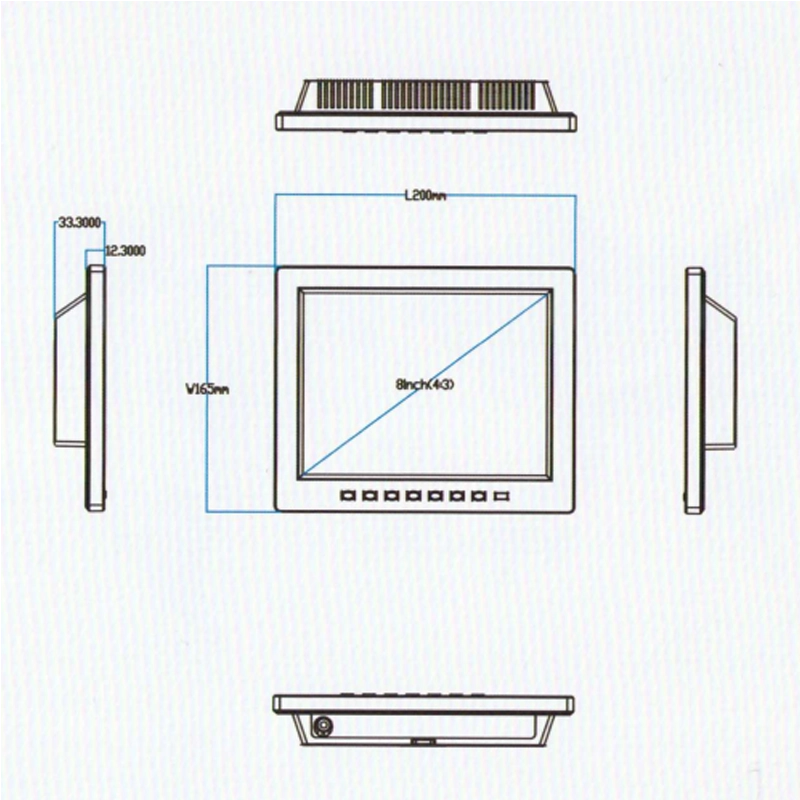

| Dimensions | 330 × 250 × 70 mm |
Applications
This 8-inch industrial monitor is widely used in:
Security & Surveillance: CCTV monitoring, control rooms
Industrial Automation: Machine vision, HMI systems
Transportation: Monitoring in railway stations and airports
Healthcare: Medical diagnostic display systems
Commercial Use: POS terminals, retail display systems
Standard Accessories
Power Adapter (12V)
Ox Horn Base (stand)
Column support
Base sticker
User manual (Chinese & English)
Why Choose This 8-Inch Industrial Monitor?
With its combination of reliability, clear imaging, and industrial-grade performance, the 8-inch industrial monitor is ideal for businesses seeking durable and cost-effective display solutions. The wide range of input options and mounting flexibility make it suitable for both standalone and integrated surveillance systems.
