Ultra-Bright. Smart. Always On.

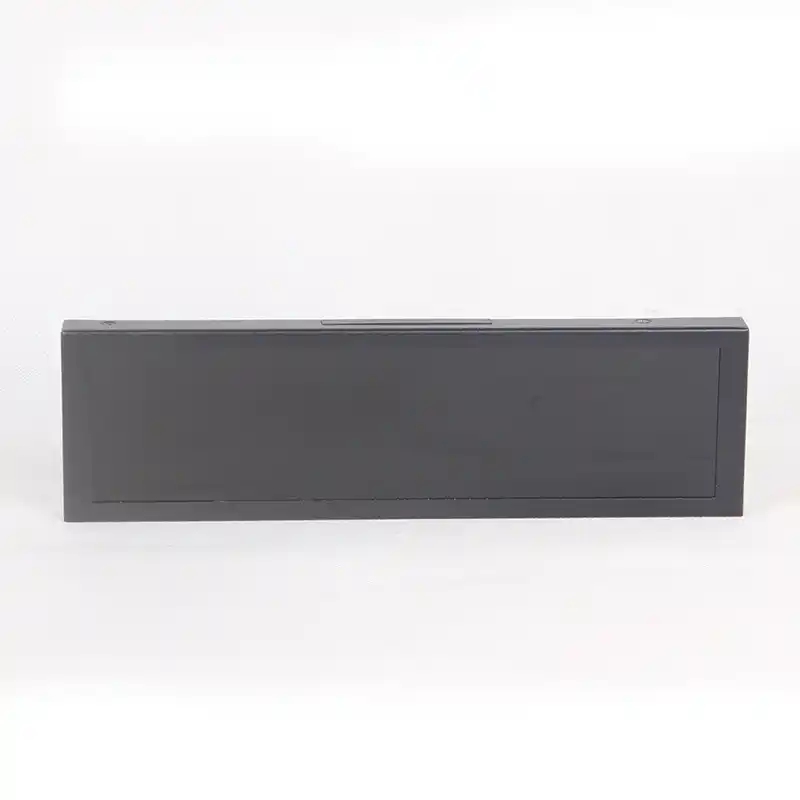

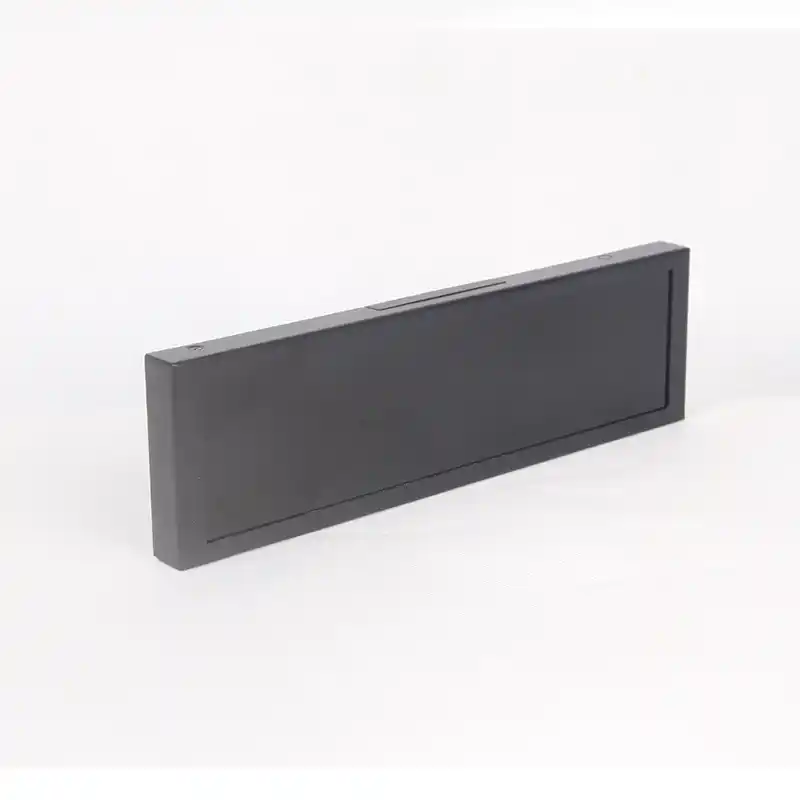

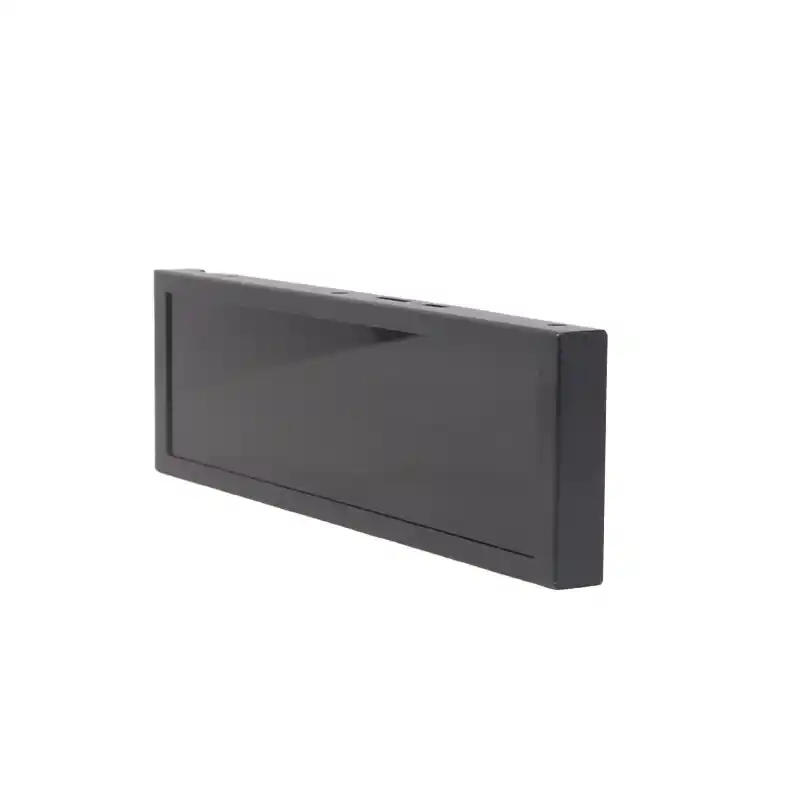

The 8.8-inch high-brightness advertising screen (BR09XCB-N) from Shenzhen Brownopto Technology is a powerful Android-based digital signage solution designed for indoor and semi-outdoor environments. With a peak brightness of 600 cd/m², this display ensures crystal-clear visibility even under strong ambient light. It features a unique 1920×480 ultra-wide resolution, perfect for dynamic scrolling text, full HD video playback, and multi-zone content layouts. Powered by a Rockchip PX30 Quad-core processor and running Android 8.1, the screen supports seamless multimedia playback, remote management, and scheduled operations via WiFi and Bluetooth connectivity.
Ideal for retail stores, transportation hubs, gas stations, and drive-thrus, this rugged display operates reliably in harsh conditions from -20°C to +70°C. Equipped with dual Type-C power inputs, TF card support, OTG, and wall-mounting hardware, it offers flexible installation and maintenance-free operation. The optional information release system enables centralized control of thousands of devices, making it a scalable solution for enterprise-level digital signage networks.
Key Features
Display Size: 8.8 inch TFT-LCD
Resolution: 1920 × 480 pixels (Ultra-Wide)
Brightness: 600 cd/m² (High Brightness)
Operating System: Android 8.1
Processor: Rockchip PX30 Quad-Core Cortex-A35
Memory & Storage: 1GB DDR3 + 8GB eMMC (up to 2GB/64GB)
External Storage: Supports up to 64GB TF card
Connectivity: 2.4GHz WiFi, Bluetooth 4.0
Power Supply: DC 12V via Dual Type-C ports
Remote Management: Scheduled on/off, content updates
Working Temp: -20°C to +70°C
Mounting: Wall-mount plate included
Certifications: CE, FCC
Warranty: 1 year
Technical Specifications
| Parameter | Value |
|---|---|
| Display Size | 8.8 inch |
| Display Area | 218.88(H) × 54.72(V) mm |
| Resolution | 1920 × 480 |
| Brightness | 600 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle | 85°/85°/85°/85° (CR≥10) |
| Backlight Source | WLED |
| Frame Rate | 60 Hz |
| Color Depth | 16.7M, 50% NTSC |
| Response Time | 30 ms (Tr+Td) |
| Lifespan | 30,000 hours |
| Processor | Rockchip PX30 Quad-Core A35 |
| System Memory | 1GB DDR3 (selectable up to 2GB) |
| Built-in Storage | 8GB eMMC (selectable up to 64GB) |
| External Storage | Up to 64GB TF card |
| Wireless Connectivity | 2.4GHz WiFi, Bluetooth 4.0 |
| Operating System | Android 8.1 |
| Power Supply | DC 12V via Dual Type-C |
| Power Consumption | ≤10W |
| Module Size | 240.6 × 69.6 × 16 mm |
| Net Weight | 0.5 kg |
| Working Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Certifications | CE, FCC |
| Warranty | 1 year |
Optional Information Release System
Multiple Format Playback: Supports images, text, videos, web pages, and more.
Multi-Zone Editing: Flexible layout design with template management.
Remote Management: Schedule power on/off and content updates across networks.
Multi-Account Control: Over 50 permission types for team collaboration.
Application Scenarios

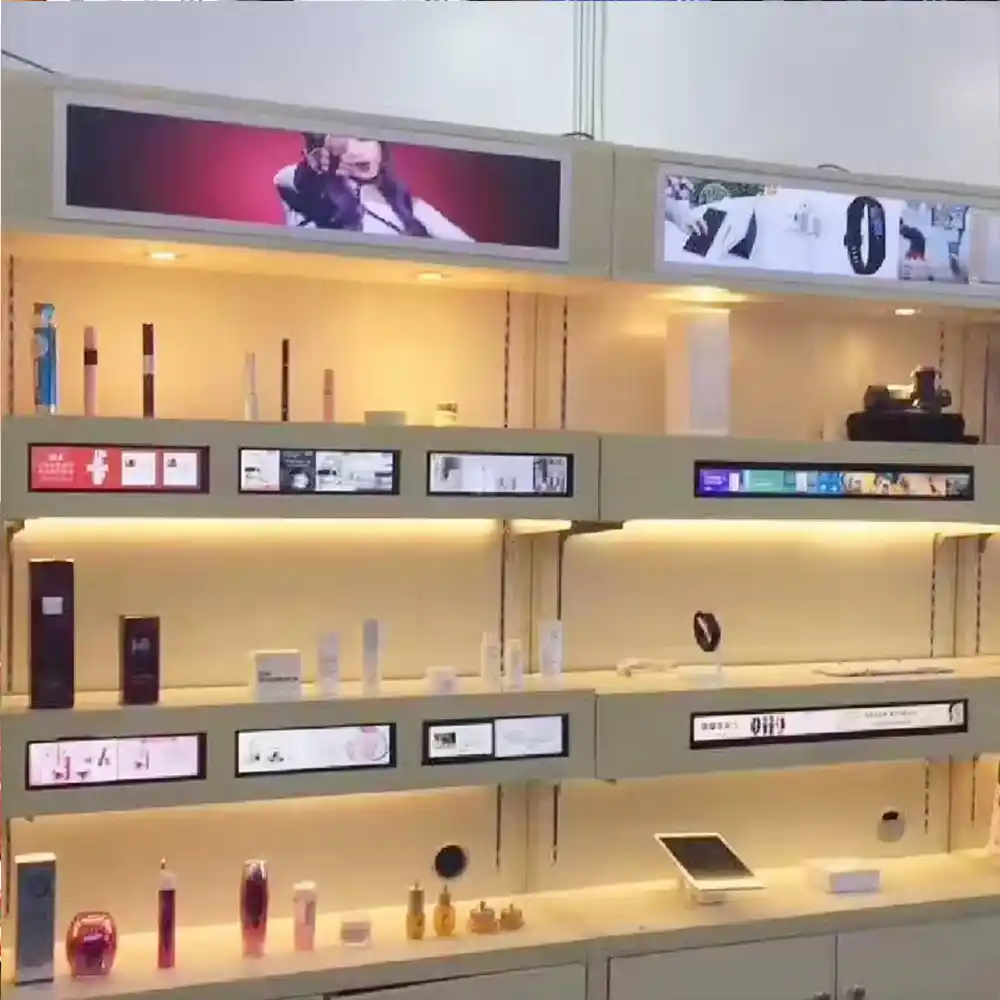

Retail: Storefront promotions, price displays, product info
Transportation: Bus stops, train stations, airport info boards
Drive-Thrus: Fast food menu boards, order confirmation
Gas Stations: Fuel pricing, promotional ads
Industrial: Factory status dashboards, warehouse logistics
Hospitality: Hotel lobbies, restaurant menus
Support & Accessories
Includes power adapters, wall mounting plate, and optional OTG cable. Full technical documentation and SDK available upon request.
Ready to Deploy Digital Signage?
Contact us for bulk orders, OEM services, or technical support.
Get a Quote
