Model: BR47X1B-N | 3840×160 | 500 Nits | Android 9.0

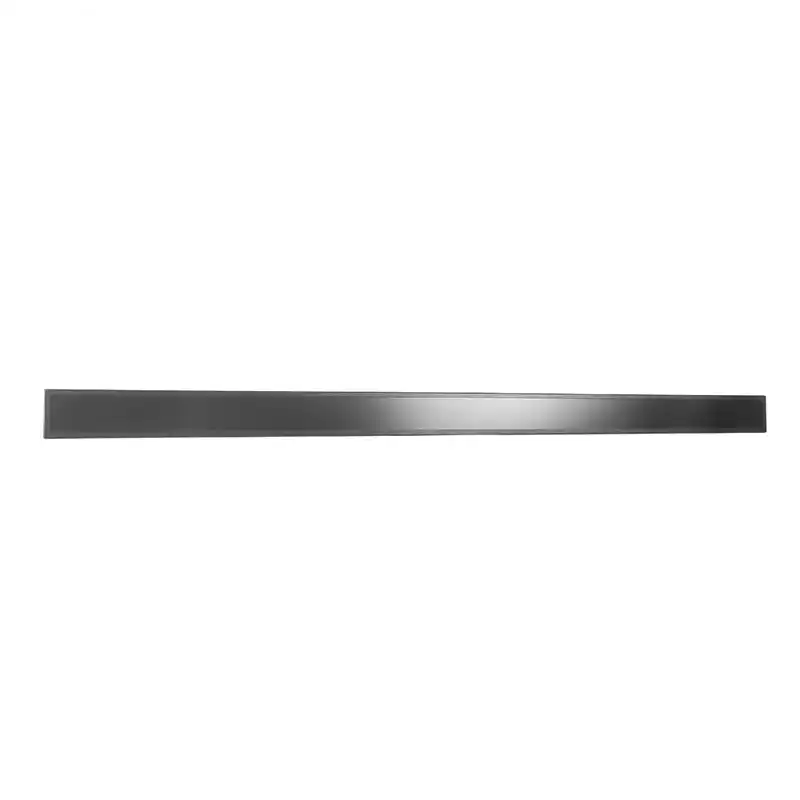

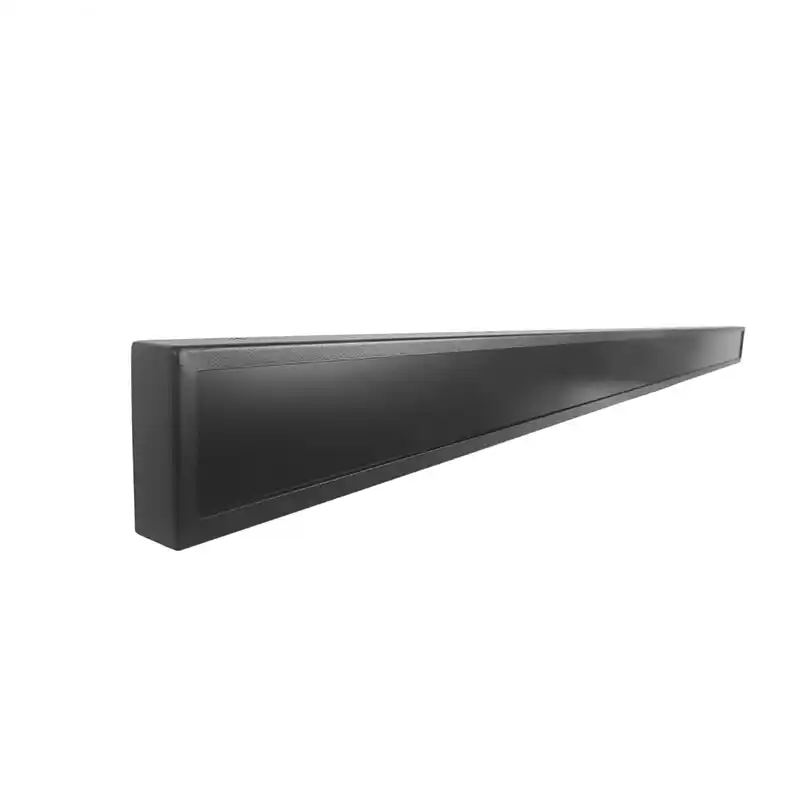

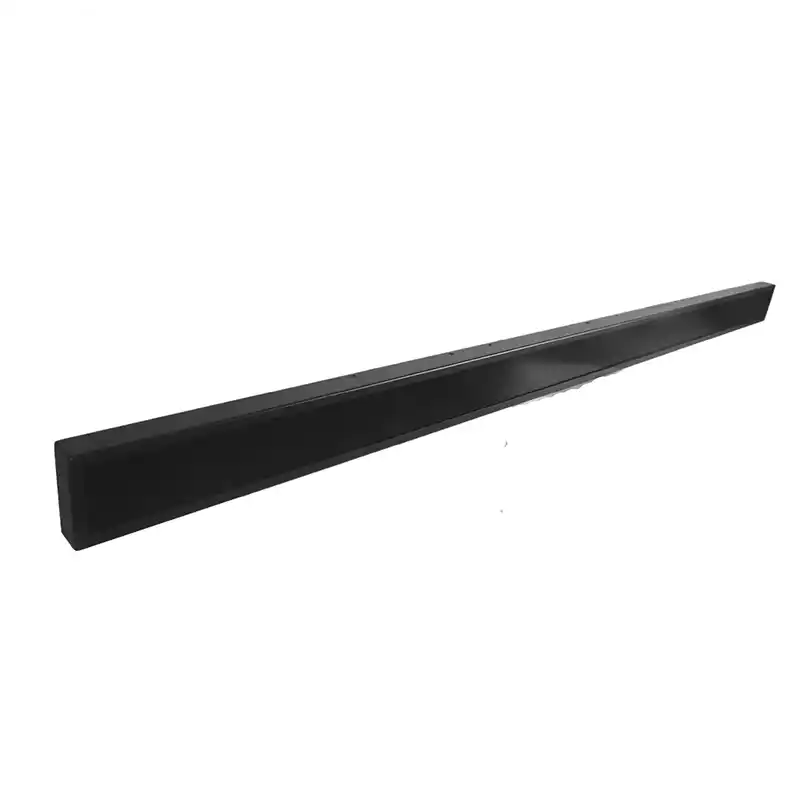

The Brownopto BR47X1B-N is a 47.1-inch strip-type advertising screen designed for seamless integration into narrow spaces where traditional displays won’t fit. With an ultra-wide 3840×160 resolution and a display area of 1196.16mm (H) × 49.84mm (V), this vertical or horizontal bar display maximizes visibility in tight environments such as elevator doors, glass partitions, bus interiors, and retail shelves.
Delivering a bright and clear image with 500 cd/m² brightness and a 1000:1 contrast ratio, the BR47X1B-N ensures excellent readability under various indoor lighting conditions. Its 178° wide viewing angle (CR≥10) guarantees consistent color and contrast from both sides, making it ideal for dual-sided installations or narrow corridors.
Powered by a high-performance Amlogic T972 Quad-Core Cortex-A55 processor (1.9GHz) and running Android 9.0 with 2GB RAM and 16GB internal storage (expandable to 32/64GB), this display supports smooth playback of HD videos, animations, scrolling text, web pages, and multi-zone content. It supports up to 128GB TF card for extended media storage.
With built-in WiFi (2.4G or dual-band 2.4G/5G configurable) and Bluetooth 4.2, the BR47X1B-N enables wireless content updates and remote management. It integrates seamlessly with a powerful information release system that supports multi-zone editing, scheduled power on/off, remote updates, multi-account management (50+ permission types), and real-time system monitoring—perfect for managing large-scale digital signage networks.
📏 47.1 INCH Strip Design
Ultra-narrow 49.8mm height fits in tight spaces like elevators, doors, and shelves
💡 500 Nits Brightness
Clear visibility in indoor retail, transit, and office environments
⚡ Amlogic T972 Quad-Core
High-performance CPU for smooth 4K video and app playback
🌐 Remote Management Ready
Schedule content, power, and monitor status across multiple units
Technical Specifications
| Model | BR47X1B-N |
| Display Size | 47.1 inch |
| Display Area | 1196.16(H) × 49.84(V) mm |
| Resolution | 3840 × 160 |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 89°/89°/89°/89° (CR≥10) |
| Color Depth | 16.7 million colors |
| Backlight | WLED |
| Frame Rate | 60 Hz |
| Lifespan | 50,000 hours |
| Processor | Amlogic T972 Quad-Core Cortex-A55, 1.9GHz |
| Operating System | Android 9.0 |
| RAM | 2GB |
| Built-in Storage | 16GB (optional: 32GB/64GB) |
| External Storage | Supports up to 128GB TF card |
| Connectivity | WiFi (2.4G or dual-band), Bluetooth 4.2 |

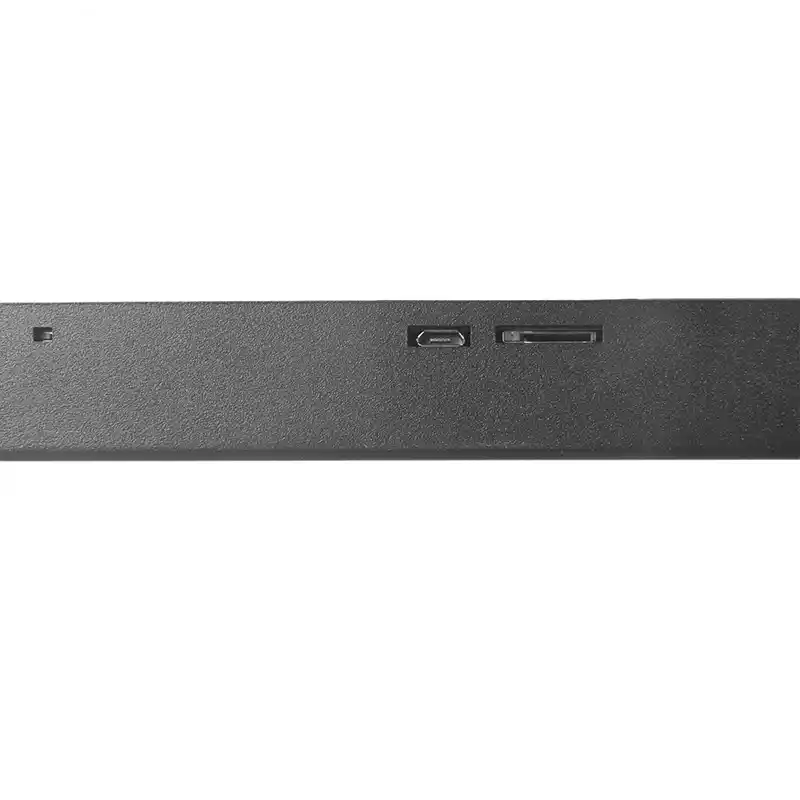

| Interfaces | Micro USB (OTG), USB 2.0, TF card slot, Type-C (for DC 12V power) |
| Power Input | DC 12V |
| Power Consumption | ≤30W |
| Dimensions | 1214.8 × 68.8 × 25 mm |
| Net Weight | ≤3 kg |
| Operating Temp. | 0°C ~ 50°C |
| Storage Temp. | -20°C ~ 60°C |
| Certifications | CE, FCC |
| Warranty | 1 year |
Ideal Applications
Elevator Doors: Vertical strip ads on elevator cabins or door frames
Bus & Metro Interiors: Ceiling-mounted or side-mounted scrolling info

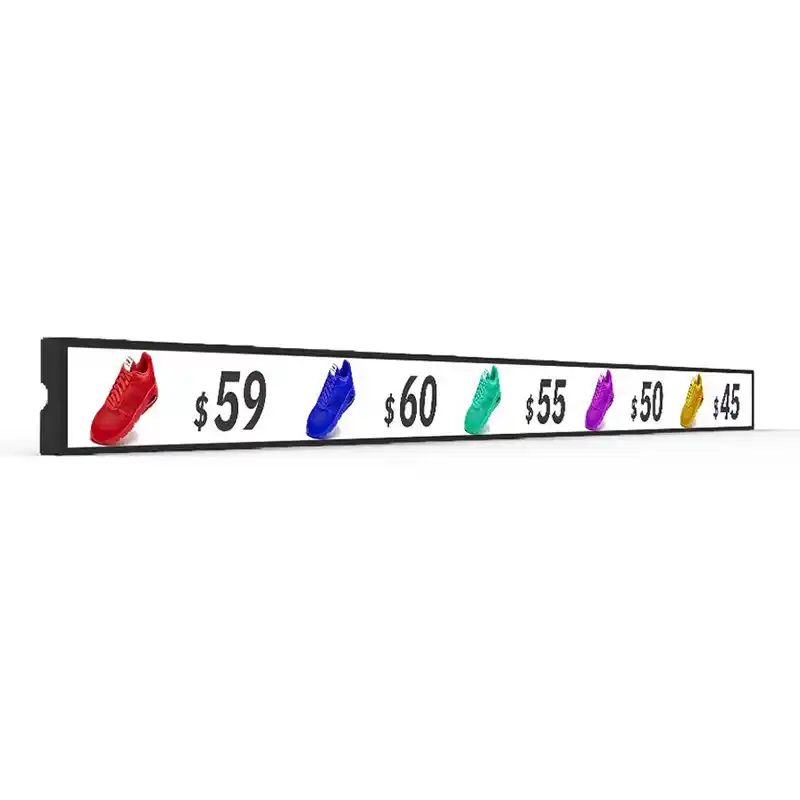

Retail Shelves: Shelf-edge digital labels or promotional strips
Office Partitions: Thin displays on glass walls or cubicle dividers
Transit Stations: Narrow space signage for schedules or ads
