Model: BR23X1B-T | 700 Nits | 1920×158 Resolution | Android 11

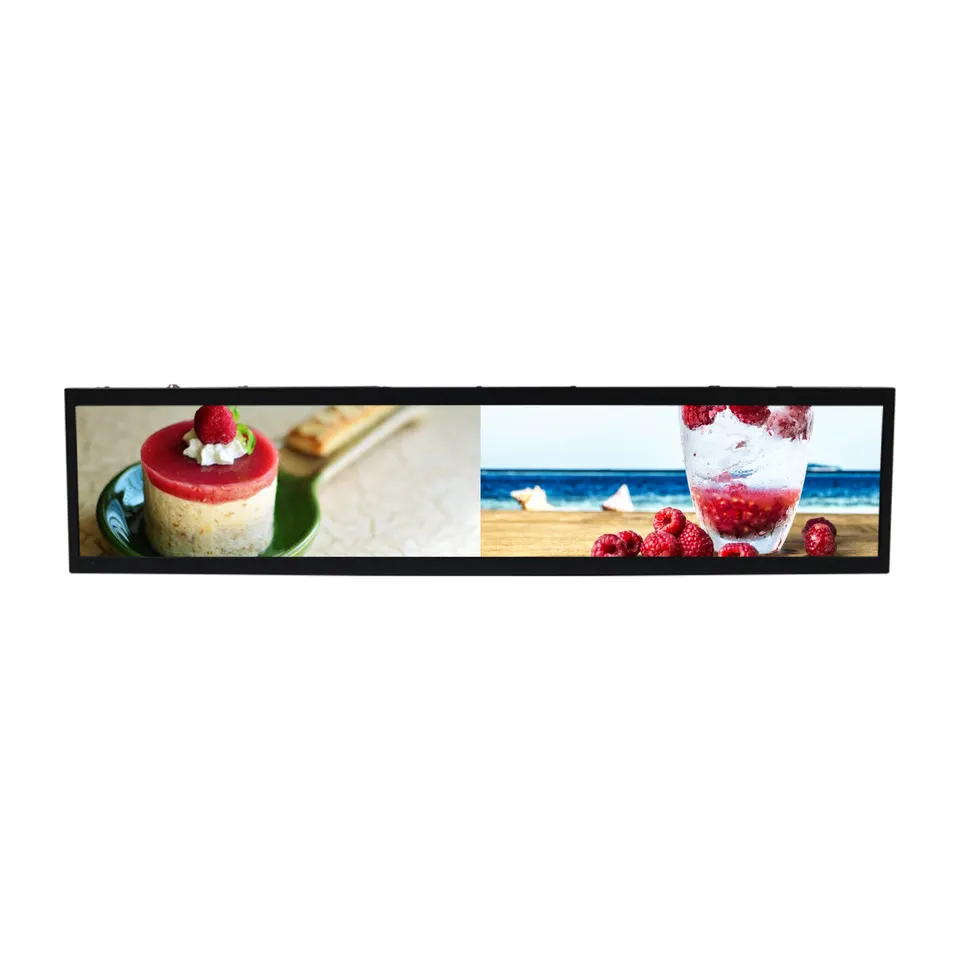

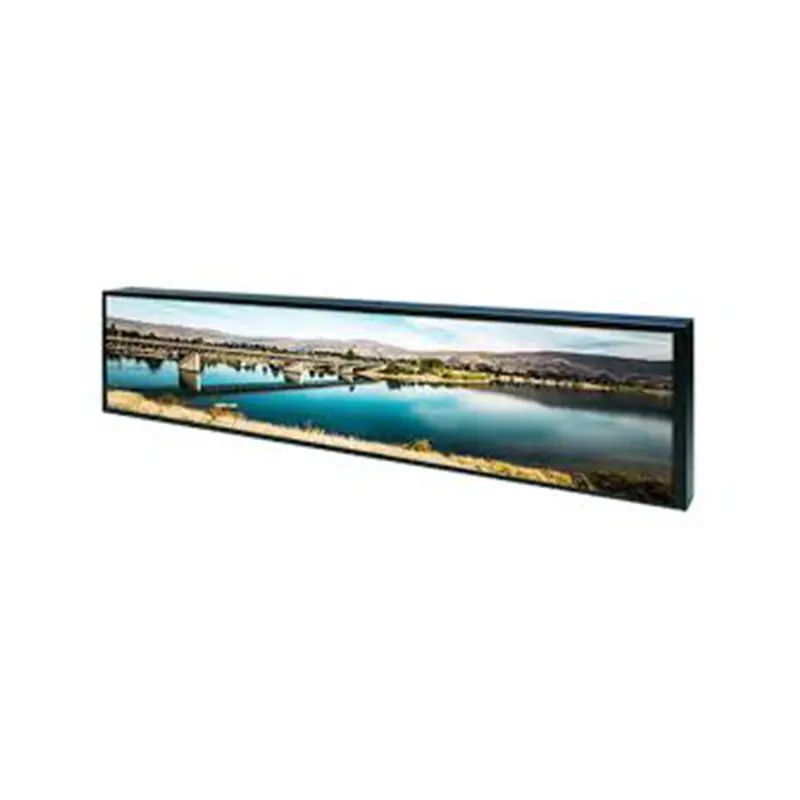

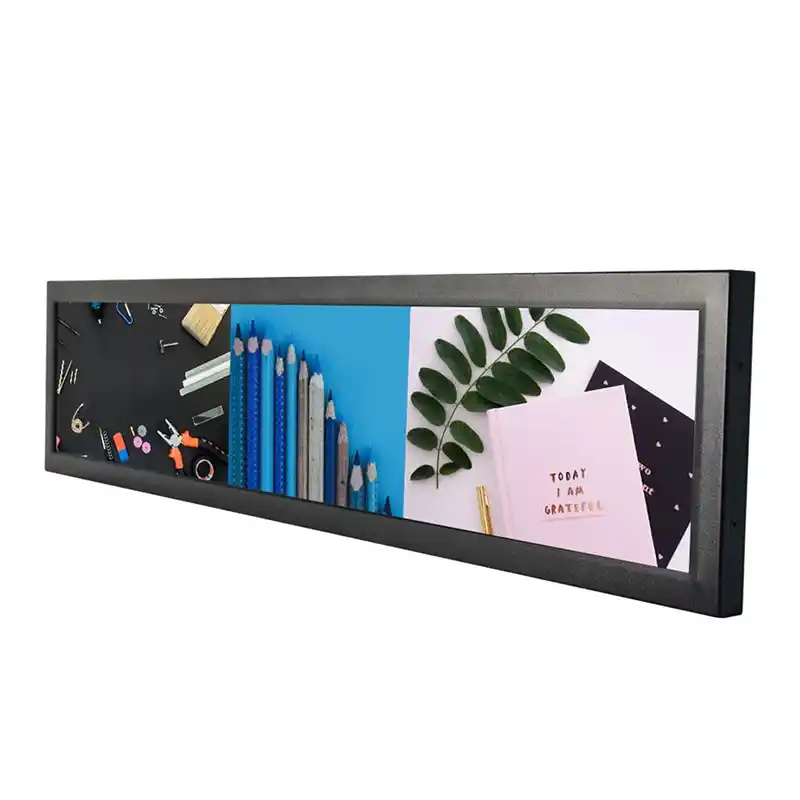

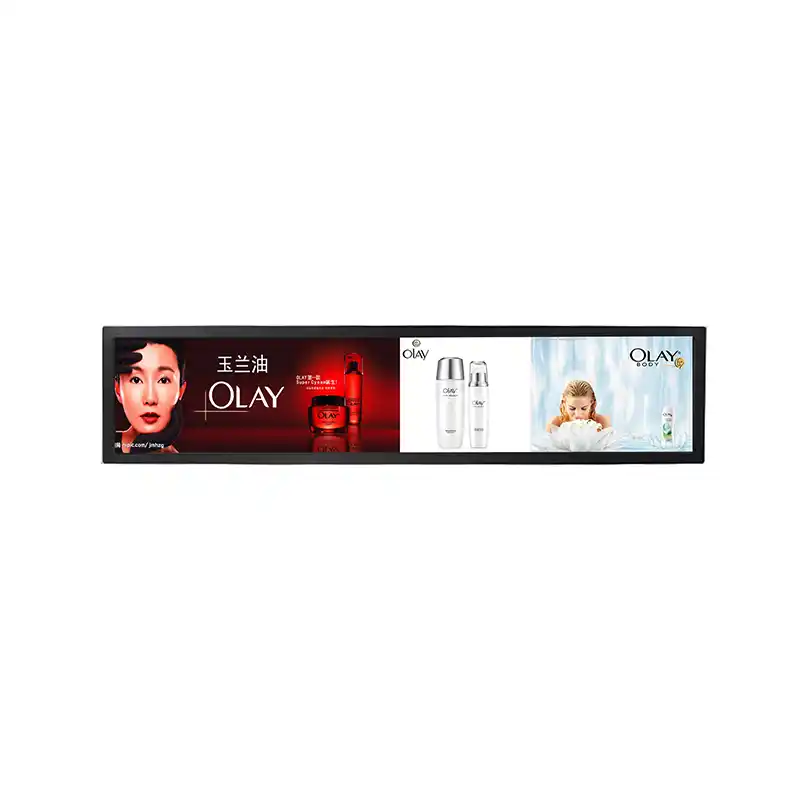

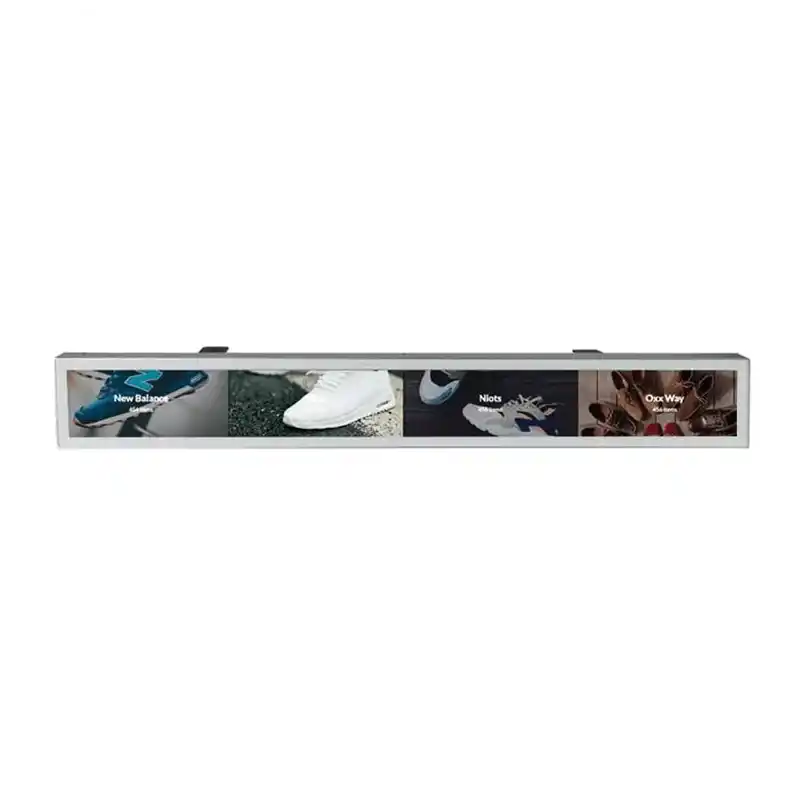

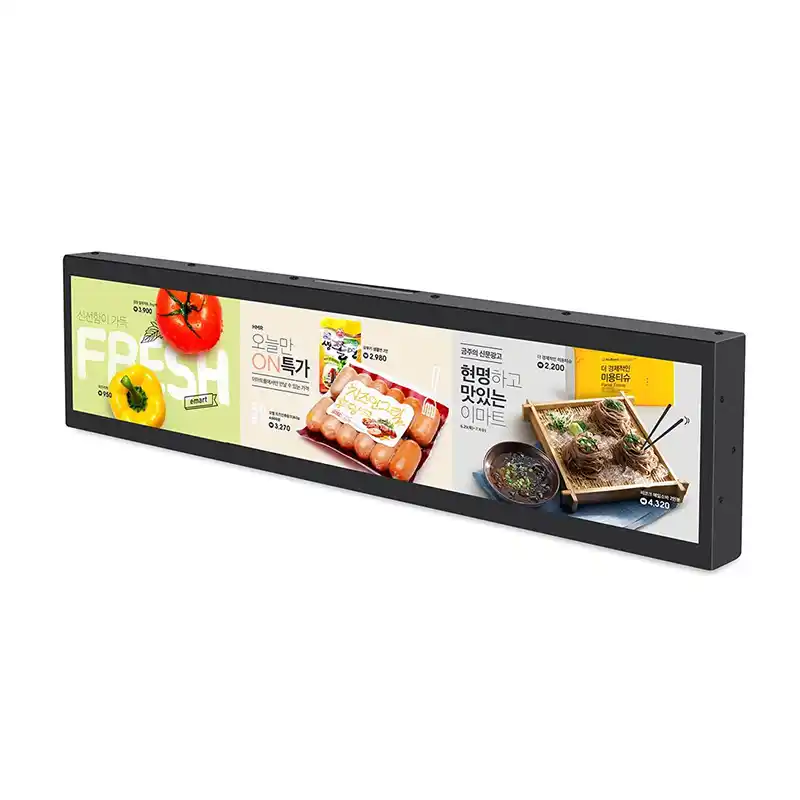

The Brownopto BR23X1B-T is a 23.1-inch ultra-narrow touchscreen bar display engineered for interactive digital signage in retail, transportation, and self-service kiosks. With a high brightness of 700 cd/m² and a sleek 1920×158 resolution, it delivers crisp visuals even in bright indoor environments—perfect for price strips, arrival boards, and dynamic info bars.
Powered by Android 11 and a Rockchip RK3566 Quad-Core processor (up to 1.8GHz), this display supports smooth multitasking, web rendering, and video playback. It features a 10-point capacitive touchscreen (G+G structure) with anti-glare coating, enabling intuitive user interaction. Integrated 2.4GHz WiFi and Bluetooth 4.0 allow for remote content updates, scheduled power control, and centralized fleet management.
📱 10-Point Touchscreen
G+G capacitive touch with AG coating for responsive, glare-free interaction
💡 700 Nits High Brightness
Excellent visibility under strong indoor lighting or near windows
🤖 Android 11 OS
Latest Android version for better security, performance, and app compatibility
📡 Remote Management
Schedule content, power on/off, and monitor status across multiple units
Technical Specifications
| Model | BR23X1B-T |
| Display Size | 23.1 inch |
| Display Area | 585.216(H) × 48.1584(V) mm |
| Resolution | 1920 × 158 |
| Brightness | 700 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 85°/85°/85°/85° (CR≥10) |
| Color Depth | 16.7M, 72% NTSC |
| Touchscreen | Capacitive, G+G, 10-point touch, AG coating |
| Processor | Rockchip RK3566 Quad-Core, up to 1.8GHz |
| Operating System | Android 11 |
| RAM | 2GB |
| Built-in Storage | 16GB (optional 32GB/64GB) |
| External Storage | TF card supported |
| Connectivity | 2.4GHz WiFi, Bluetooth 4.0 |
| Power Input | DC 12V via Type-C |
| Power Consumption | ≤16W |
| Dimensions | 600.32 × 64.09 × 19.1 mm |
| Net Weight | 1.05 kg |
| Certifications | CE, FCC |
| Warranty | 1 year |
Ideal Applications
Interactive Kiosks: Self-checkout, menu ordering, info lookup

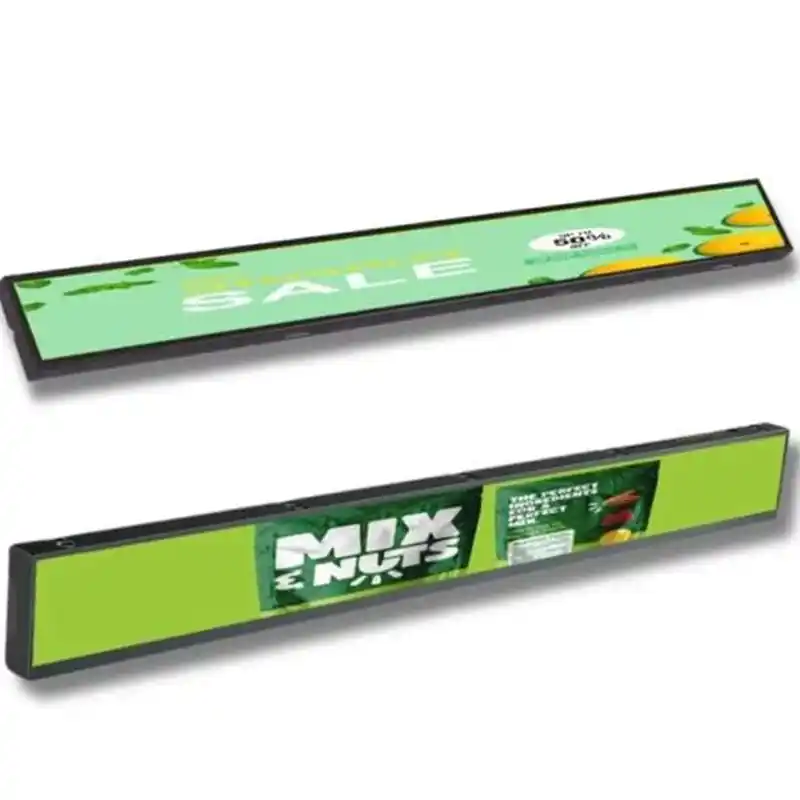

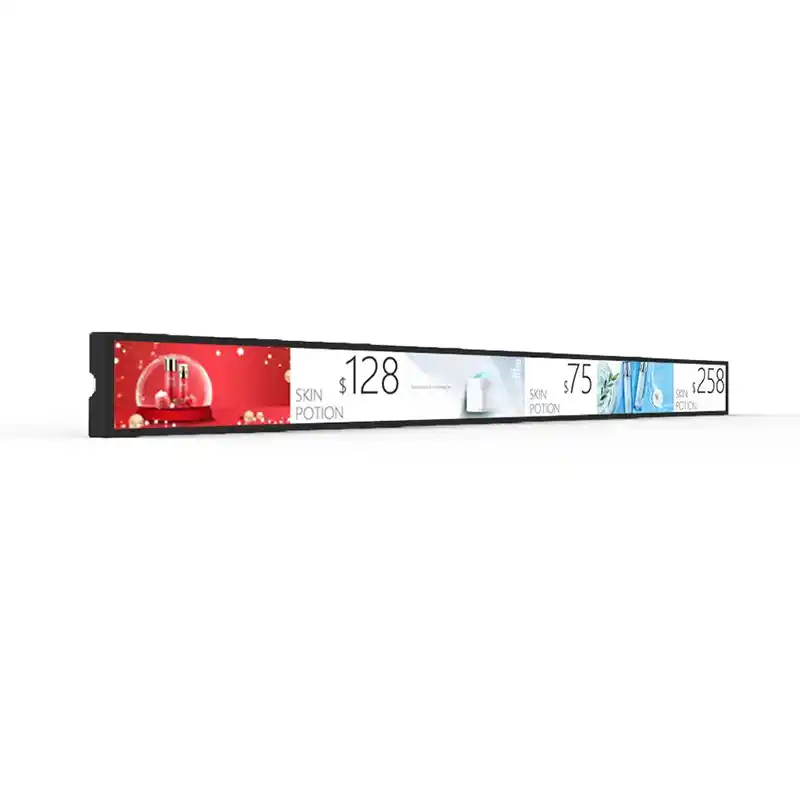

Retail: Touch-enabled price strips, product details, promotions
Transit: Touch-to-see arrival times, route maps, service alerts
Hospitality: Hotel check-in bars, restaurant waitlist systems
Industrial: Touch control panels, machine status displays
