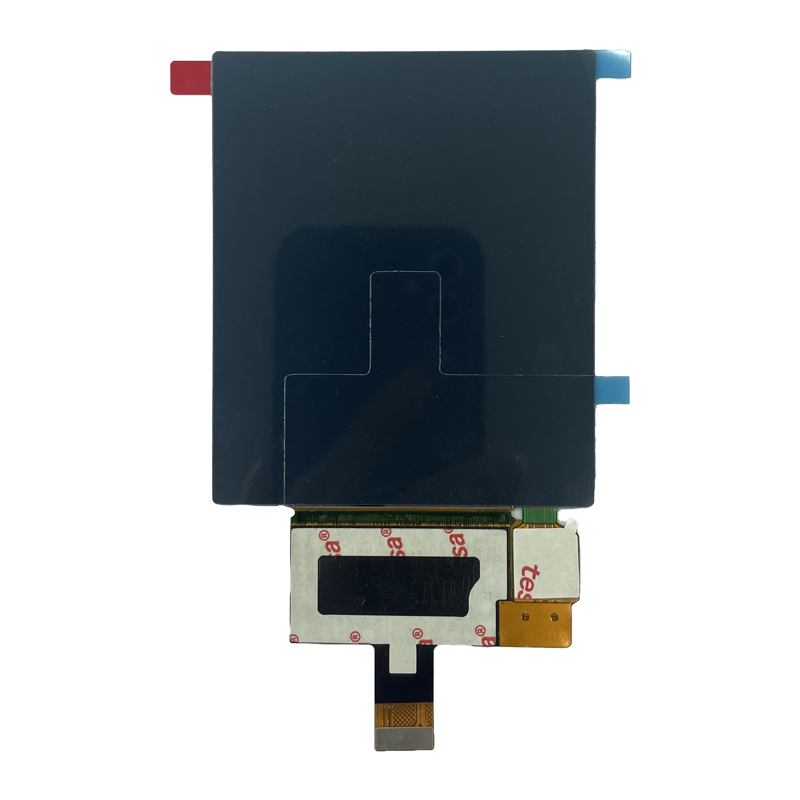

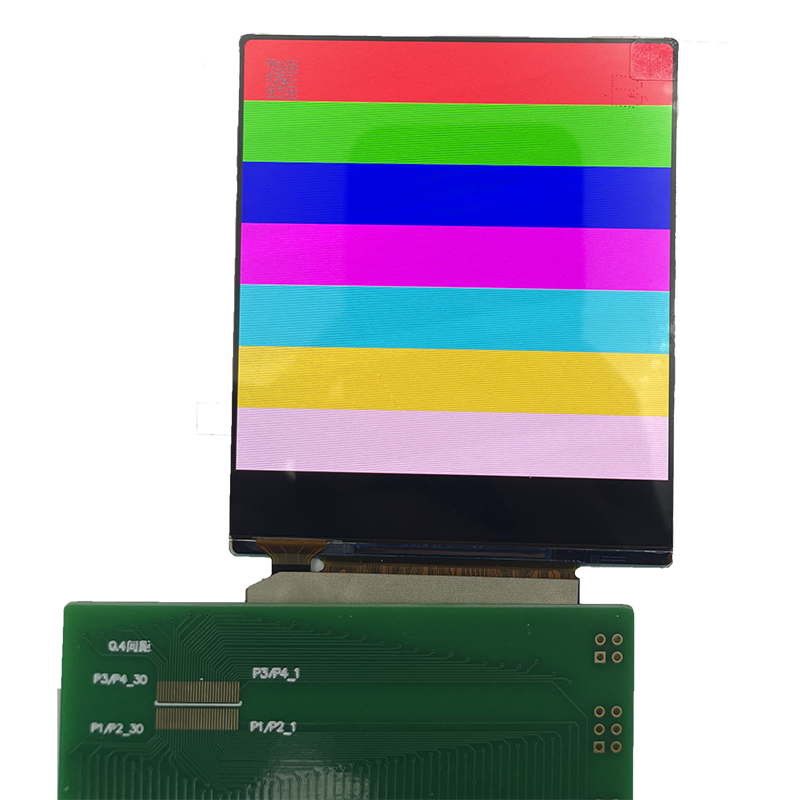

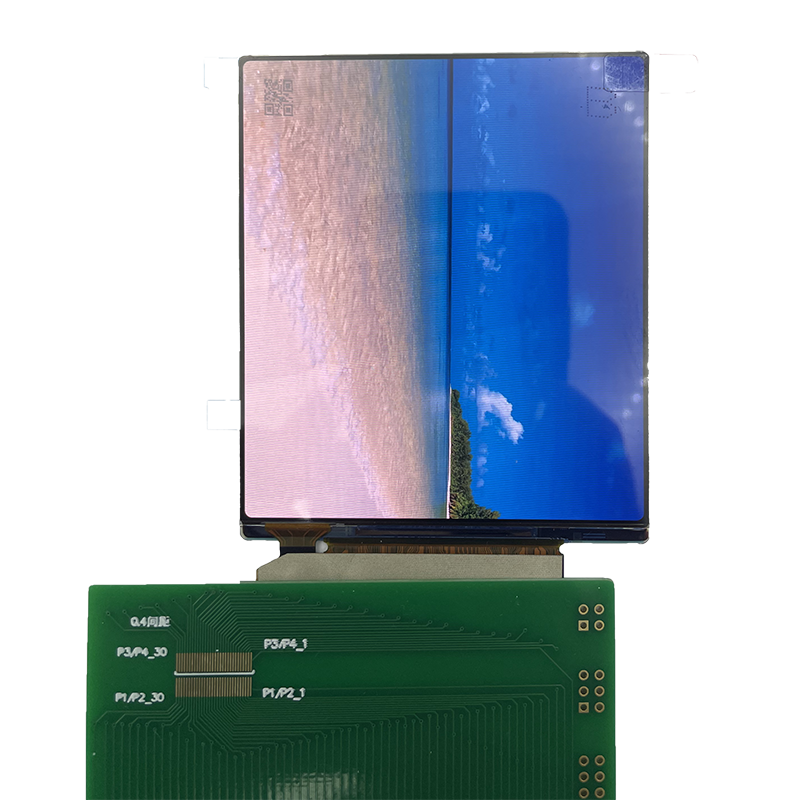

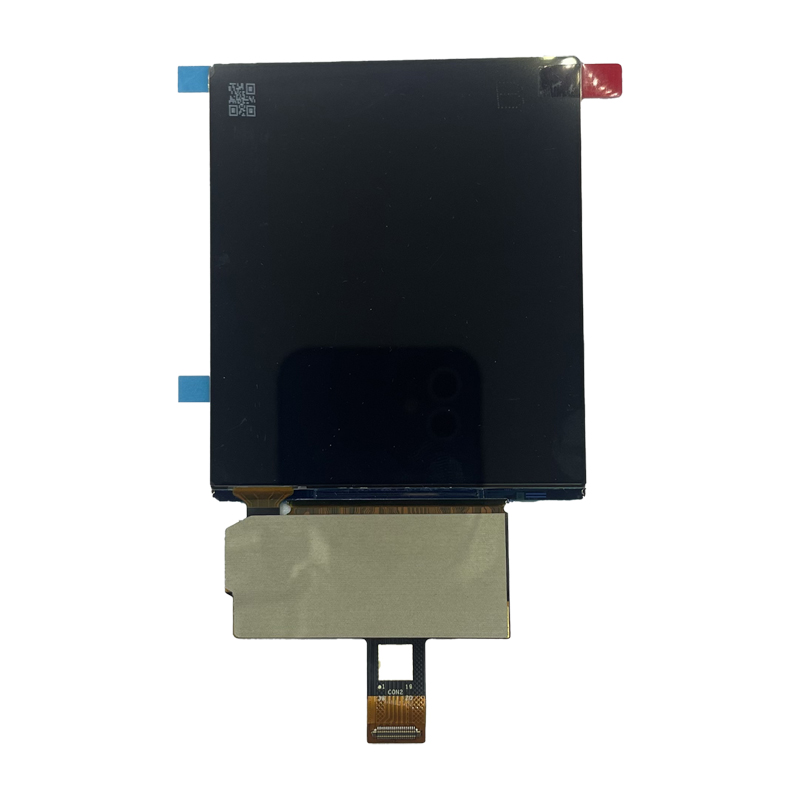

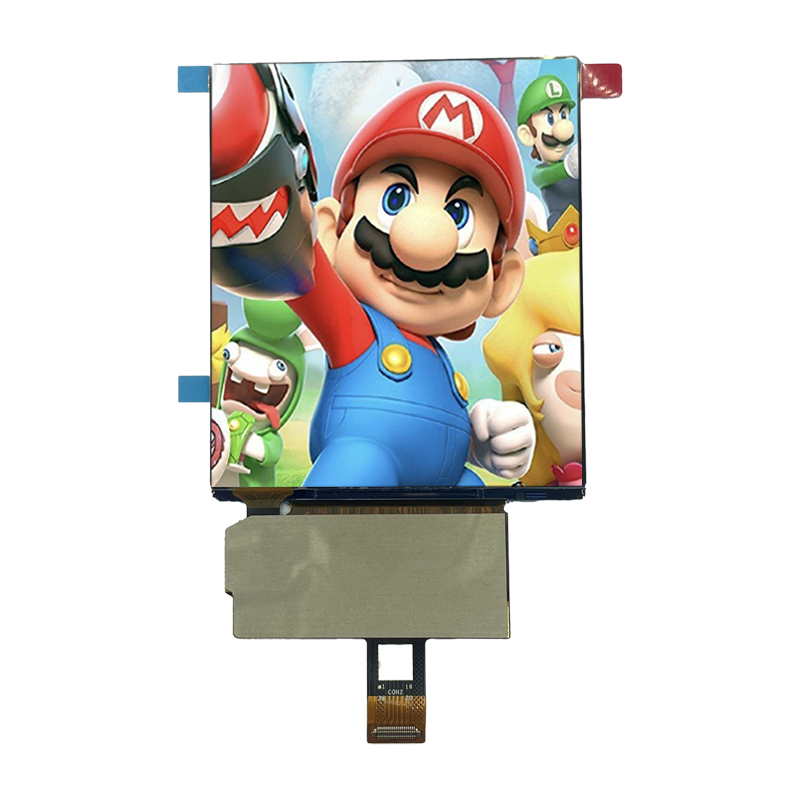

The 3.92-inch AMOLED Display Module (Model: BR1392FH101GG-013) is a high-performance display solution designed for industrial equipment and smart terminals, widely used in applications such as 86 box panels, gaming console casings, and POS terminals. This module utilizes advanced AMOLED+LTPS technology, offering a resolution of 1080×1240, high brightness of 500 cd/m², and a refresh rate of 60Hz. Combined with its ultra-thin design (0.8mm thickness) and industrial-grade reliability, it meets the demands for stable operation in high-requirement environments.
Core Advantages
1.High-Performance Display
1080×1240 Resolution (134 PPI): Delivers fine pixels for clear image reproduction.
500 cd/m² Typical Brightness: Meets visibility requirements in bright environments.
16.7M Color Depth: Accurately reproduces colors (White Point x=0.299, y=0.3152).
Low Power Design: Optimized power management (ELVDD ±4.5–5.0V) for extended device battery life.
2.Industrial Grade Durability
Wide Temperature Range: Operates from -20°C to +70°C, stores from -40°C to +80°C (tested per IEC60068-2 standard).
Anti-Static and Thermal Shock Resistance: 30 thermal cycles (-40°C ↔ +80°C) ensure reliability in extreme conditions.
RoHS 2.0 Certification: Eco-friendly materials, compliant with international environmental standards.
3.Multi-Scenario Adaptability Design
MIPI 4 Lane Interface: Compatible with DSI protocol for fast data transmission (supports integration with external touch screens).
Ultra-Thin and Lightweight (67.25×79.87×0.8mm): Suitable for compact devices with limited space.
No Built-in Touch Screen: Offers flexibility for customers to choose external touch solutions (integration required separately).
4.Professional Optical and Mechanical Characteristics
0.0606μm Pixel Pitch: Enhances display detail performance.
2H Hardness Polarizer: Scratch-resistant design, suitable for frequent operation scenarios.
Wide Viewing Angle and Deep Black Presentation: AMOLED technology achieves a 178° viewing angle and high contrast.
Technical Specifications
| DisplayMode | AMOLED |
| Screen Size (inch) | 3.92 |
| Resolution | 1080(H) × 1240(V) |
| ActiveArea(mm) | 65.448 (W) × 75.144 (H) |
| PixelPitch (um) | 0.0606(H) × 0.0606(V) |
| Outline(mm) | 67.25mm*79.87mm*0.8mm |
| TP Outline | TBD |
| TechnologyType | LTPS |
| ColorDepth | 16.7M |
| Interface | MIPI 4LANE |
| Surface Treatment | Hard Coating |
| Driver IC | CH13726A |
| TouchIC(Type) | NC |
| Luminance | 500 cd/m² |
| Viewing Angle | Full view |
| Light Source | Self-luminous |
| Temperature Operation | -20°C to 70°C |
| Temperature Storage | -30°C to 80° |
| Note 1: Requirements on Environmental Protection: RoHS | |

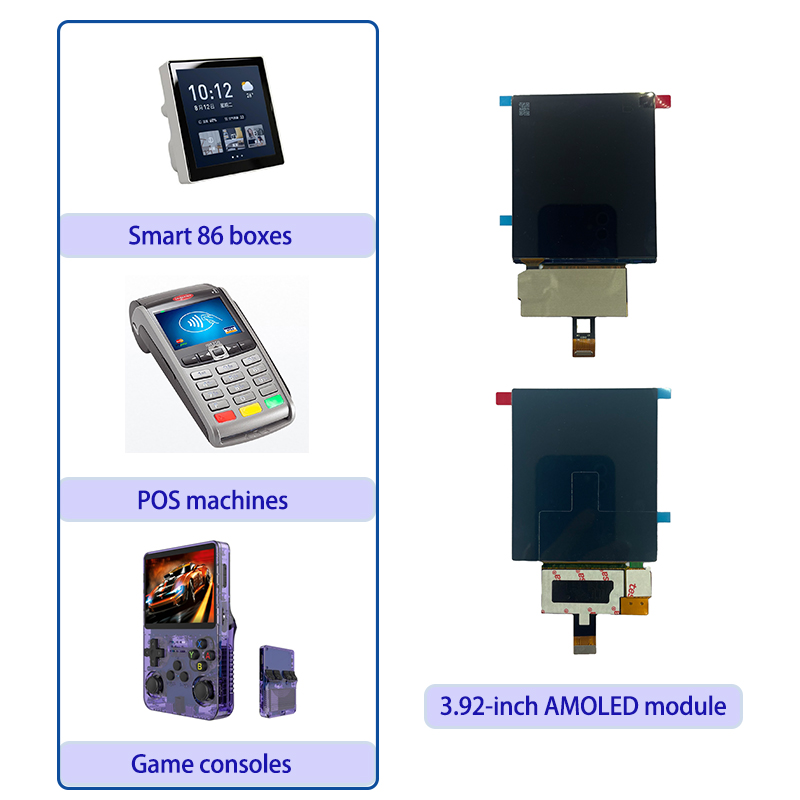

Application Scenarios
1.86 Box Panel
Ultra-thin Body Design: Saves installation space, fits modern smart home devices.
High Brightness Display: Maintains a clear interface in living rooms or commercial environments.
2.Gaming Console Casing
Fast Response and Immersive Graphics: Low latency display enhances gaming experience.
MIPI Interface Compatibility: Seamlessly integrates into customized hardware designs.
3.POS Terminal
Durability and Stability: Adapts to high-frequency operations and complex environments (such as cash registers, self-service machines).
Precise Color Calibration: Ensures accurate display of commodity information.
