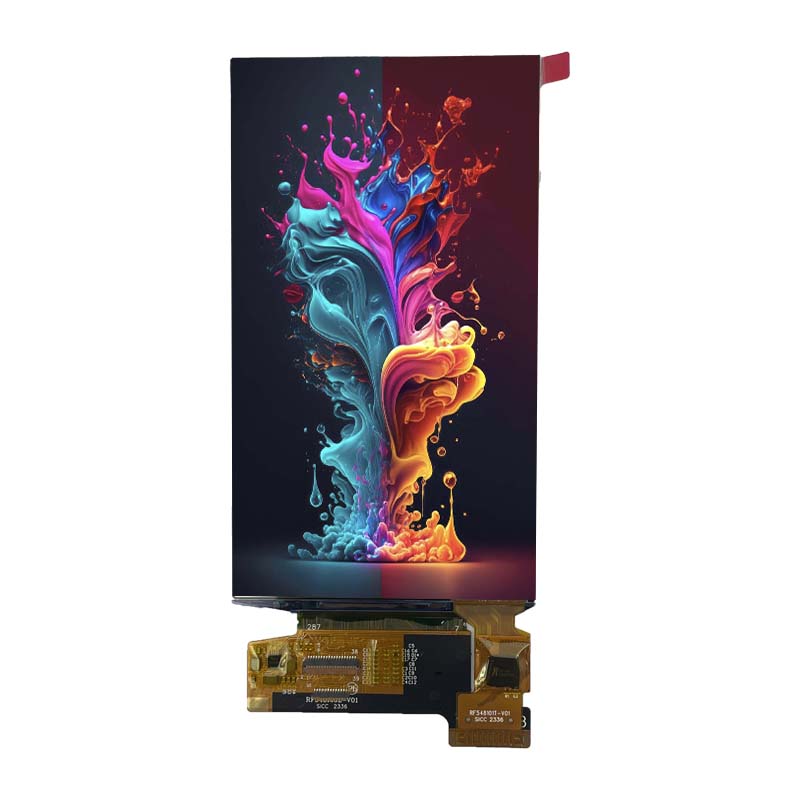

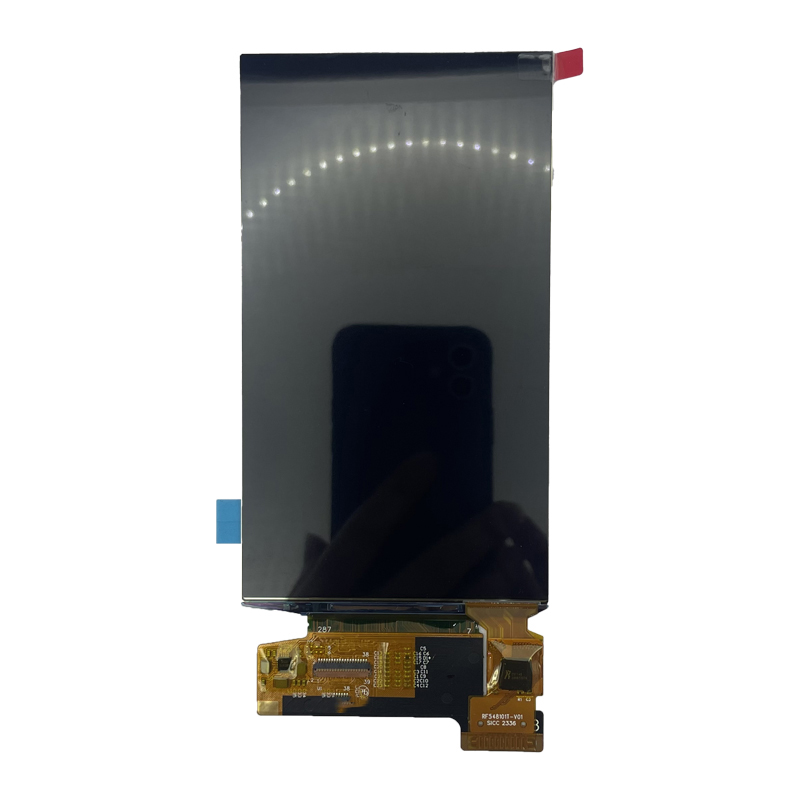

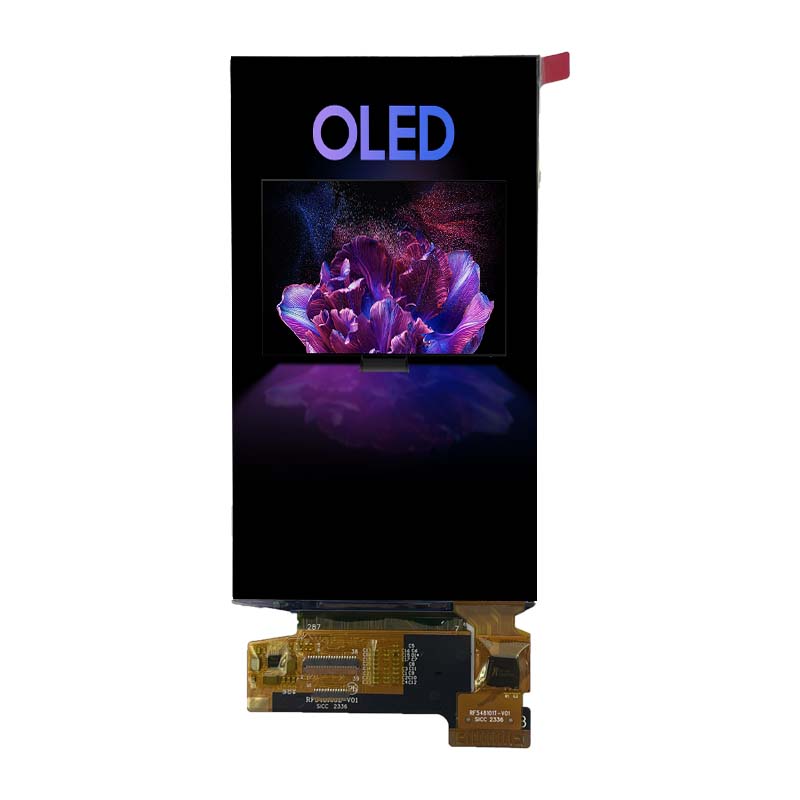

5.48" AMOLED Display
Model: BR548105-A1 (Industrial-Grade Wide-Temperature Touch Solution)
Key Specifications
Display Technology: LTPS AMOLED | Resolution: 1080×1920 (FHD, 403 PPI)
Brightness: 305~495 cd/m² (Typical value 450 cd/m²) | Color Gamut: 97%~105% NTSC
Interface: MIPI DSI 4-lane | Touch: Capacitive 10-point touch (IC: CST148)
Thickness: 2.17mm (module) | Operating Voltage: VDDIO 1.65-3.3V / VCI 2.65-3.6V
Wide-Temperature Operation: -20°C ~ +70°C (Industrial-grade reliability)
Response Time: ≤1ms | Contrast Ratio: 100,000:1
| DisplayMode | AMOLED |
| Screen Size (inch) | 5.48 |
| Resolution | 1080(W)×1920(H) |
| ActiveArea(mm) | 68.26(W)×121.34 (H) |
| PixelPitch (um) | -(W)×-(H) |
| Outline(mm) | 70.36(W)x127.34(H)x2.17(D) |
| TP Outline | TBD |
| TechnologyType | LTPS |
| ColorDepth | 16.7M |
| Interface | MIPI 4LANE |
| Surface Treatment | Hard Coating |
| Driver IC | CH13721 |
| TouchIC(Type) | CST148 |
| Luminance | 450 cd/m² |
| Viewing Angle | Full view |
| Light Source | Self-luminous |
| Temperature Operation | -20°C to 70°C |
| Temperature Storage | -30°C to 80° |
| Note 1: Requirements on Environmental Protection: RoHS | |
Key Features
✅ Ultra-Thin & Highly Integrated: Compact 2.17mm design, integrating MIPI interface and touch driver
✅ Industrial-Grade Protection: Passes ±8kV air discharge / ±4kV contact discharge ESD certification (IEC61000-4-2)
✅ Accurate Color Reproduction: 105% NTSC wide color gamut coverage, White point chromaticity coordinates (x=0.300, y=0.310)
✅ Low Power Consumption Design: Standby current ≤168μA (VDDIO), supports PWM dimming command (Register 51h)
Differentiating Highlights

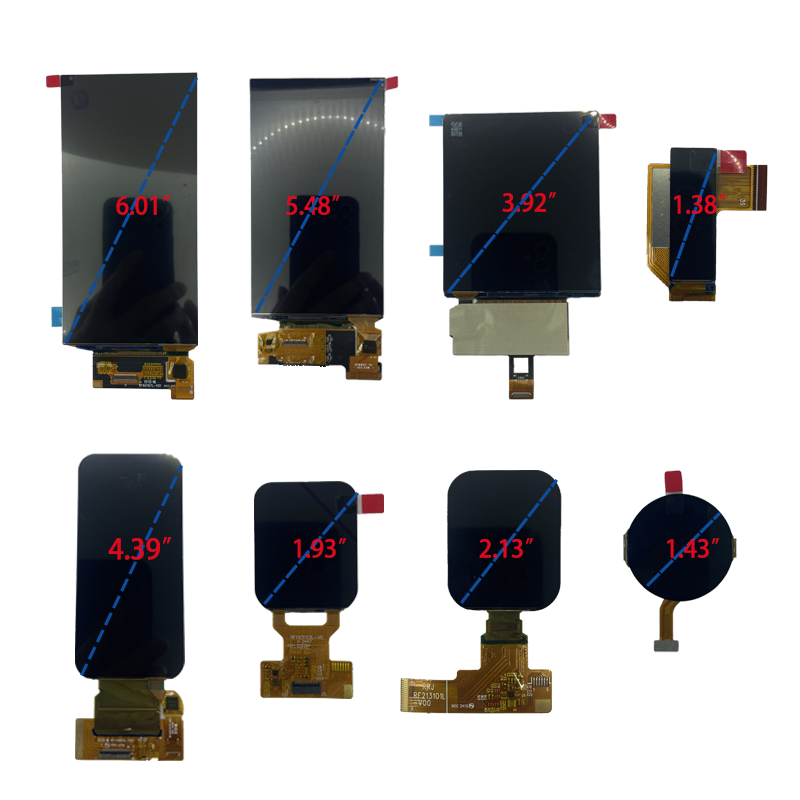

Brightness Adaptability: Peak brightness of 495 cd/m² (measured value, see Page 17 optical table), 10% higher than the 6.01-inch module.
Energy Efficiency Optimization: Standby power consumption as low as 168μA (VDDIO), suitable for battery-powered devices.
Environmental Tolerance: Operates at -20°C (the 6.01-inch module operates down to -30°C), meeting requirements for mainstream industrial scenarios.
Color Accuracy: 105% NTSC color gamut coverage; blue chromaticity coordinates (x=0.140, y=0.047) enhance cool color performance.
Compatibility & Certifications
Driver Support: Built-in TE (Tearing Effect) prevention signal.
Reset Requirements: RESX pulse width >10μs (ESD protection details in Section 5.2).
Certifications: RoHS, CE
Lifespan: >30,000 hours (at half brightness)

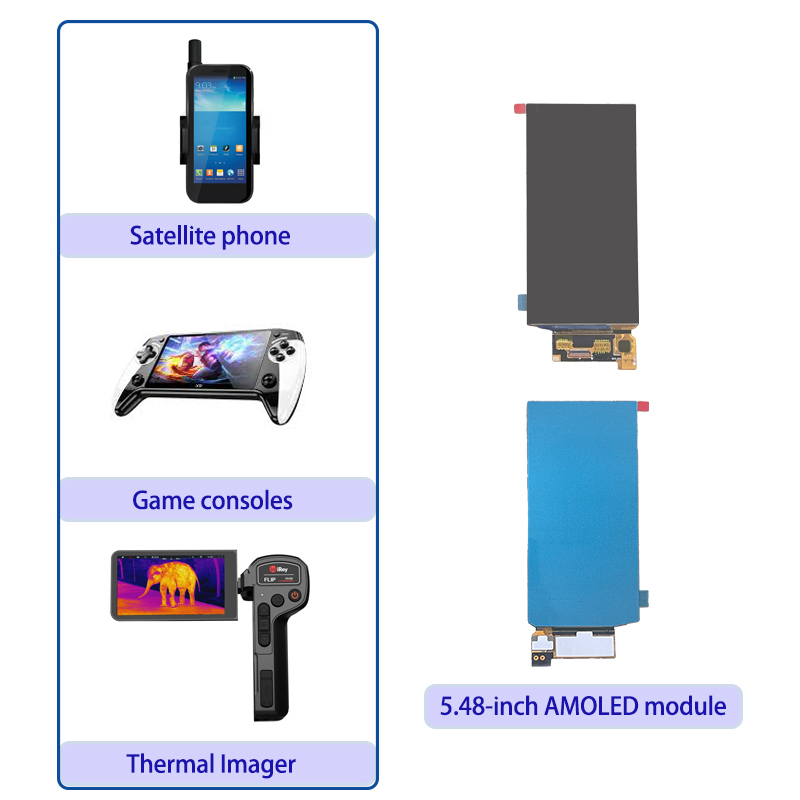

Target Application Fields
▶ Satellite Communication Terminals
-20°C low-temperature startup ensures reliable operation in polar/high-altitude environments; 450 cd/m² brightness handles strong light conditions.
▶ Portable Gaming Devices
1ms ultra-fast response eliminates motion blur, and the wide color gamut enhances visual immersion in gaming.
▶ Thermal Imager Display Units
100,000:1 high contrast ratio clearly presents temperature gradients; wide temperature support enables field operations.
▶ Industrial Handheld Terminals
MIPI interface compatible with embedded systems; ESD protection resists electrostatic interference in workshops.
