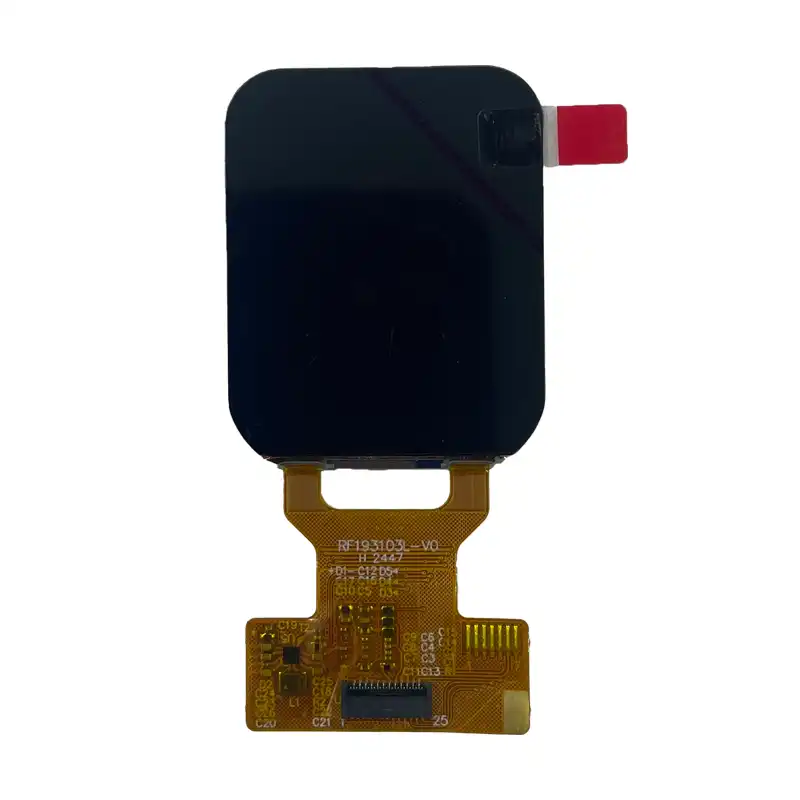

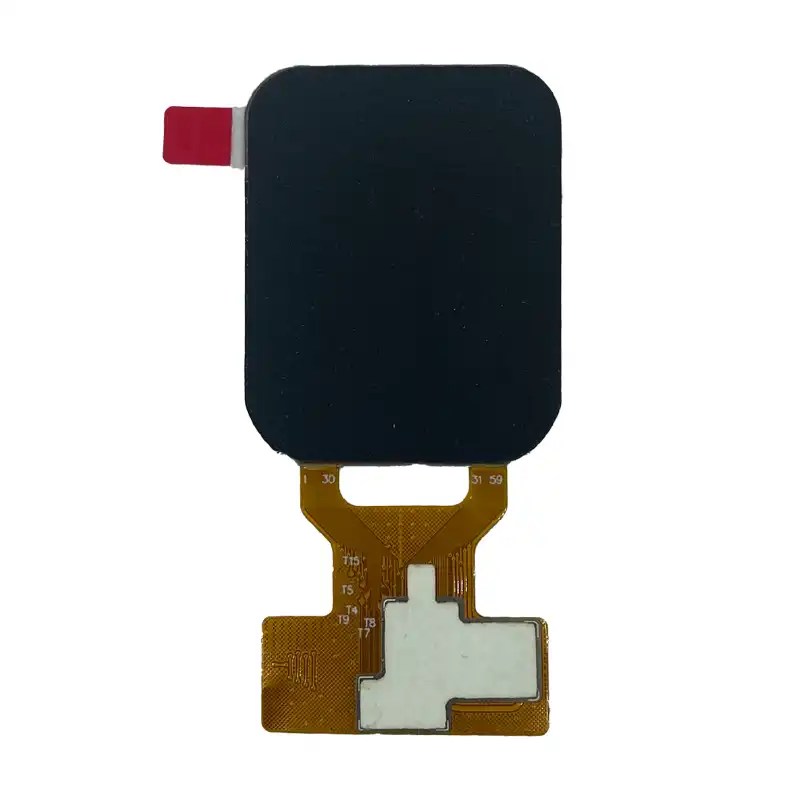

The 1.93-inch AMOLED Display Module (Model: BR193103-A1) is a high-performance, ultra-thin display solution designed for smart instruments, wearable devices, and action cameras. Built on advanced AMOLED + LTPS technology, this module delivers 368×448 resolution, 550–600 cd/m² brightness, and 60Hz refresh rate, combining vibrant visuals with industrial-grade durability for demanding environment
Key Features
1. High-Performance Display
368×448 Resolution (144 PPI): Sharp pixels for clear, detailed visuals.
550–600 cd/m² Brightness: Ensures visibility in bright outdoor conditions.
16.7M Color Depth: Accurate color reproduction (White Point: x=0.299, y=0.3152).
60,000:1 Contrast Ratio: Deep blacks and dynamic range for immersive visuals.
2. Industrial-Grade Durability
Wide Operating Temperature Range: -20°C to +70°C (Storage: -30°C to +80°C).
Thermal Shock Resistance: Passes 10 thermal cycles (-20°C ↔ +70°C).
RoHS 2.0 Compliance: Eco-friendly materials for global market compatibility.
3. Versatile Integration
QSPI Interface: Supports QUAD SPI protocol for fast data transmission.
Ultra-Thin Design (0.85mm Thickness): Ideal for compact, space-constrained devices.
No Built-In Touch Panel: Flexible integration with external touch solutions (if required).
4. Optimal Optical & Mechanical Performance
0.075μm Pixel Pitch: Enhances clarity and detail.
2H Hardness Polarizer: Resists scratches for frequent use in rugged environments.
178° Wide Viewing Angle: Consistent color and brightness from any angle.
Technical Specifications
| DisplayMode | AMOLED |
| Screen Size (inch) | 1.93 |
| Resolution | 368 x(W)×448(H) |
| ActiveArea(mm) | 30.912 (H)×38.1696(V) |
| Outline(mm) | 32.672(H) ×41.0596(V)×0.85(T) |
| TechnologyType | LTPS |
| ColorDepth | 16.7M |
| Interface | QSPI |
| Surface Treatment | Hard Coating |
| Driver IC | CH13620 |
| TouchIC(Type) | —— |
| Luminance | 600 cd/m² |
| Viewing Angle | Full view |
| Light Source | Self-luminous |
| Temperature Operation | -20°C to 70°C |
| Temperature Storage | -30°C to 80° |
| Note 1: Requirements on Environmental Protection: RoHS | |

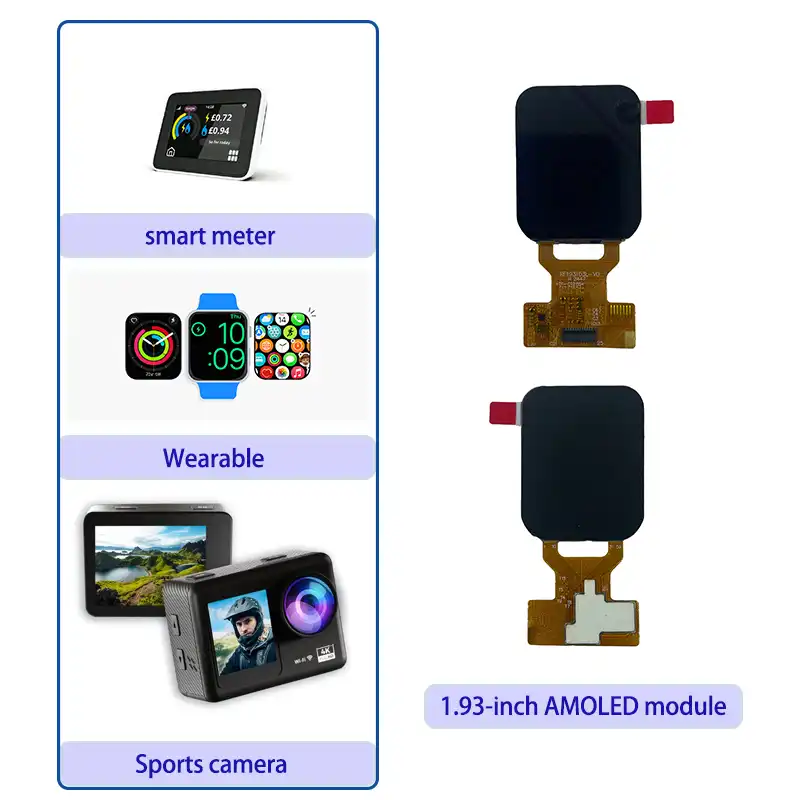

Why Choose This AMOLED Module?
For Smart Instruments
Ultra-Thin Profile (32.67×41.06×0.85mm): Enables sleek, space-saving designs.
High Brightness (550–600 cd/m²): Maintains visibility in industrial or outdoor settings.

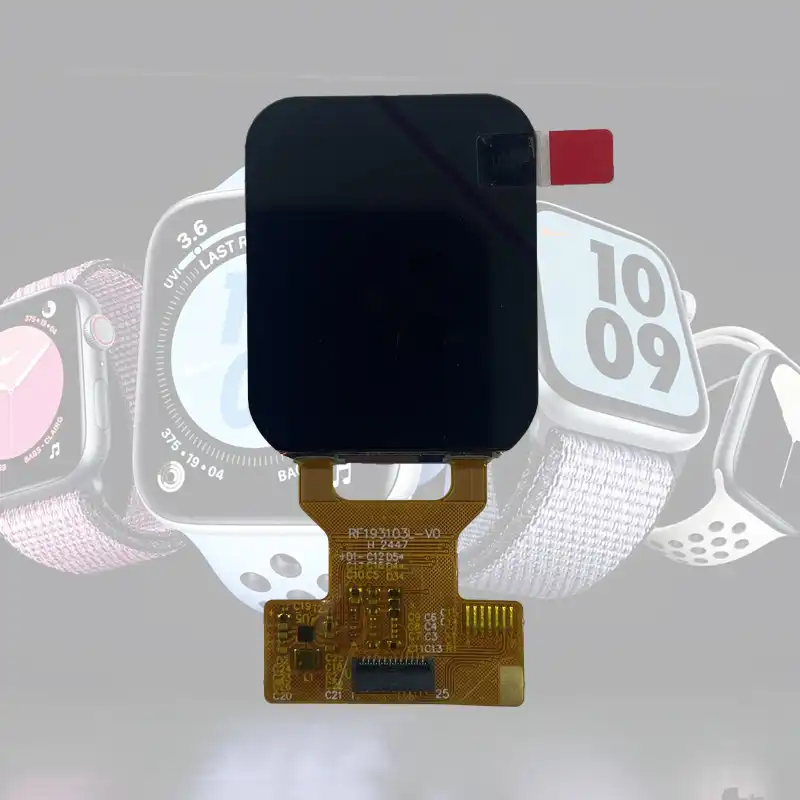

For Smart Wearables
Low-Power Consumption (260mW Normal Mode): Extends battery life for wearables.
Fast Response Time: Ensures smooth, lag-free user interactions.
For Action Cameras
Vibrant Colors & High Contrast: Captures vivid footage in challenging lighting.
Rugged Construction: Survives vibrations and harsh environments during outdoor activities.
