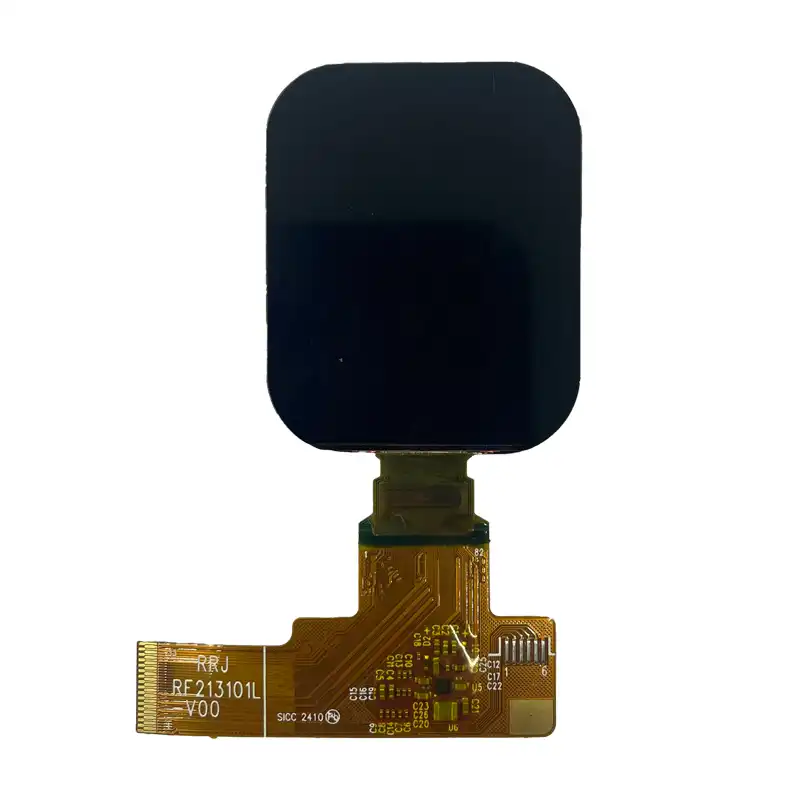

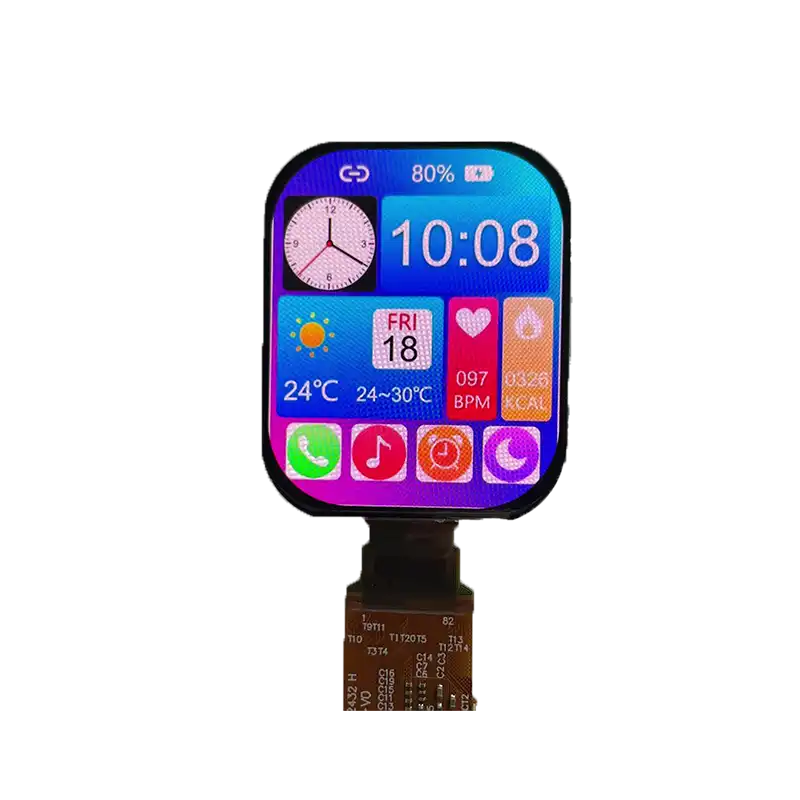

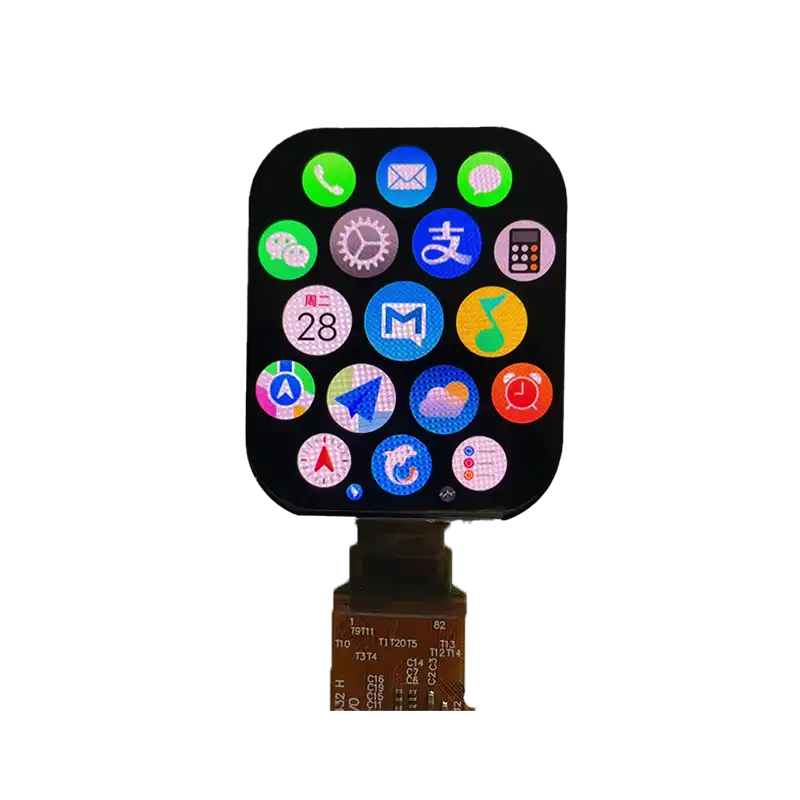

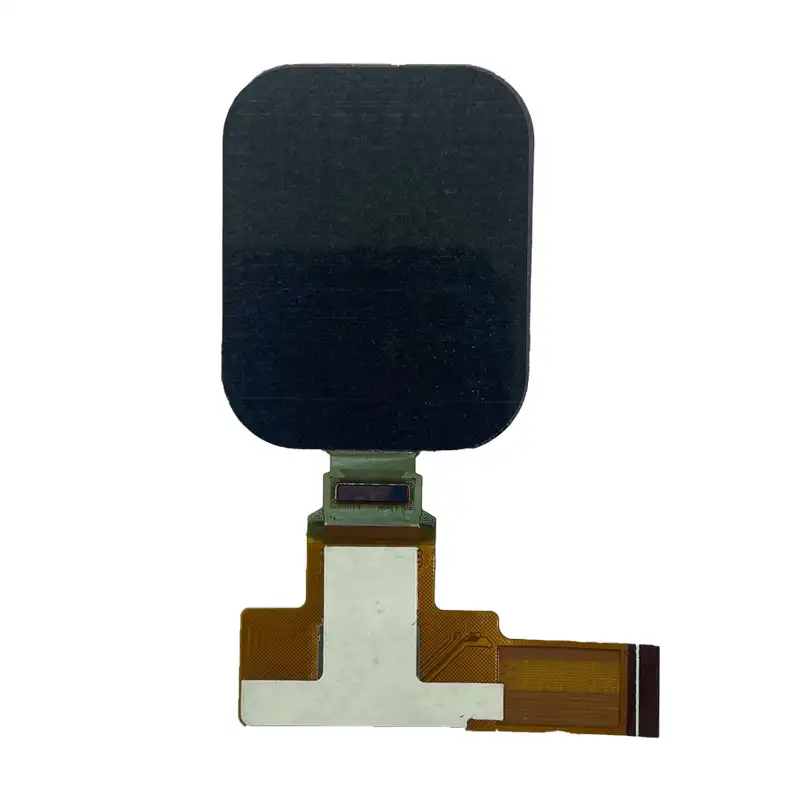

The 2.06-inch AMOLED display module is designed for harsh industrial environments, featuring a high resolution of 410(H)×502(V) and an ultra-high brightness of 600 nits (Typ), which remains clearly visible under strong light. It supports MIPI/QSPI/4-line SPI triple-mode interfaces, allowing flexible protocol switching through the IM[1:0] pins, compatible with mainstream industrial host platforms. The CO5300 driver chip provides a smooth 60Hz refresh rate, suitable for the compact space requirements of barcode scanners, sports cameras, and smart wearable devices.
Core Advantages
1.Industrial Grade Reliability
With ±6kV air discharge/±2kV contact discharge static protection (IEC61000-4-2)
Operating temperature range: -20°C to 70°C (96 hours high-low temperature cycle certification)
Mechanical strength: 0.8mm ultra-thin tempered glass + hardening coating
2.Ultra-Low Power Consumption Design
Dynamic power consumption: 239mW (normal mode), standby power consumption only 0.68mW
Supports hardware sleep-in (Sleep-in), wake-up response ≤10ms
Wide voltage compatibility: VCI (2.8V) + IOVDD (1.8V/2.8V)
3.Outstanding Optical Performance
60000:1 contrast ratio | 100% NTSC color gamut | White point chromaticity (x:0.300, y:0.315)
80° full viewing angle without color bias (CR≥10)
Uniformity ≥85% (9-point testing method)
Technical HighlightsInterface Flexibility: 30-pin FPC integrates display and touch control signals (TP-SDA/SCL), supports hot swapping.
Driving Solution: CO5300 chip supports frame synchronization (TE pin to eliminate tearing).
Lifespan Assurance: Continuous display lifespan ≥200 hours at 25°C with white light.
Environmental Certification: Compliant with RoHS standards.
Technical Parameters
| DisplayMode | AMOLED |
| Screen Size (inch) | 2.06 |
| Resolution | 410(W)×502(H) |
| ActiveArea(mm) | 33.087 (H)×40.511(V) |
| Outline(mm) | 70.36(W)x127.34(H)x2.17(D) |
| TechnologyType | LTPS |
| ColorDepth | 16.7M |
| Interface | MIPI/QSPI/4-Wire SPI |
| Surface Treatment | Hard Coating |
| Driver IC | CO5300 |
| TouchIC(Type) | —— |
| Luminance | 600 cd/m² |
| Viewing Angle | Full view |
| Light Source | Self-luminous |
| Temperature Operation | -20°C to 70°C |
| Temperature Storage | -30°C to 80° |
| Note 1: Requirements on Environmental Protection: RoHS | |

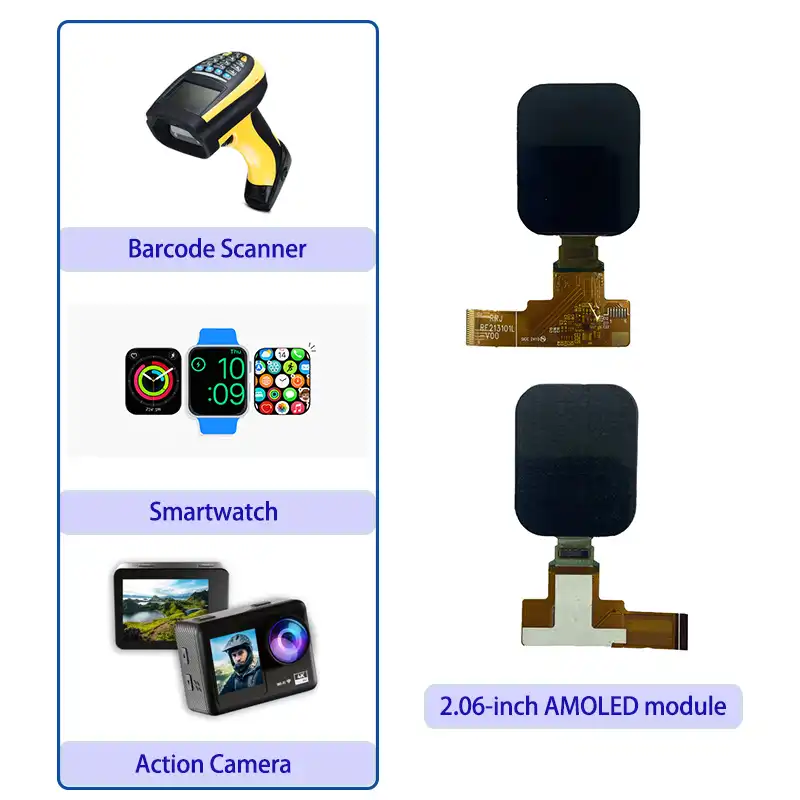

Application Scenarios
📦 Industrial Mobile Terminals: Handheld barcode scanners, warehouse PDAs
🎥 Sports Imaging Equipment: Action camera displays, drone image transmission monitors
⌚ Smart Wearables: Square dial smart watches, health monitors
🔧 Portable Instruments: HMI interactive panels, on-site testing equipment
