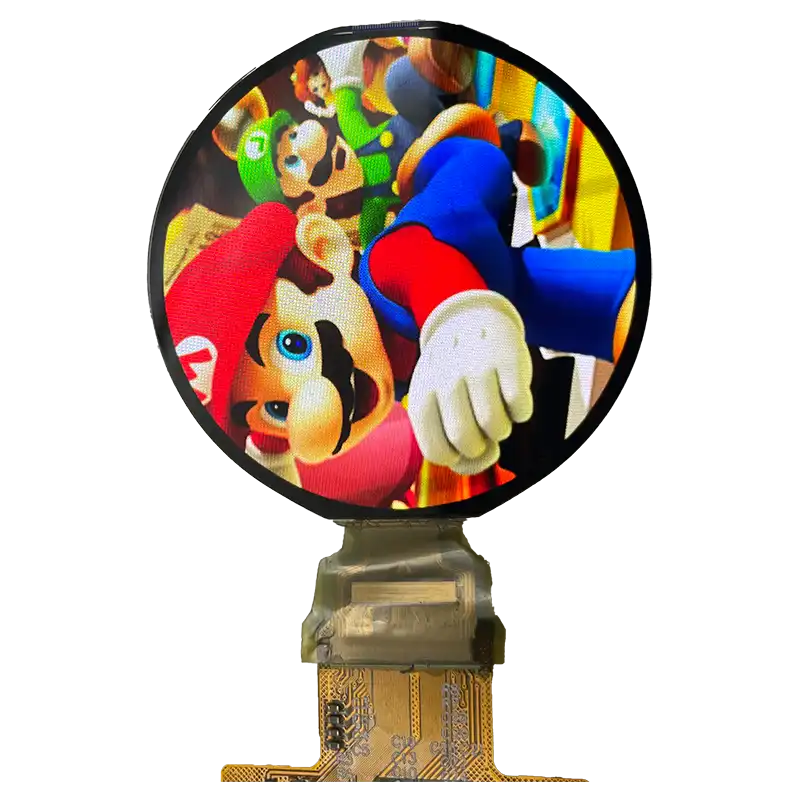

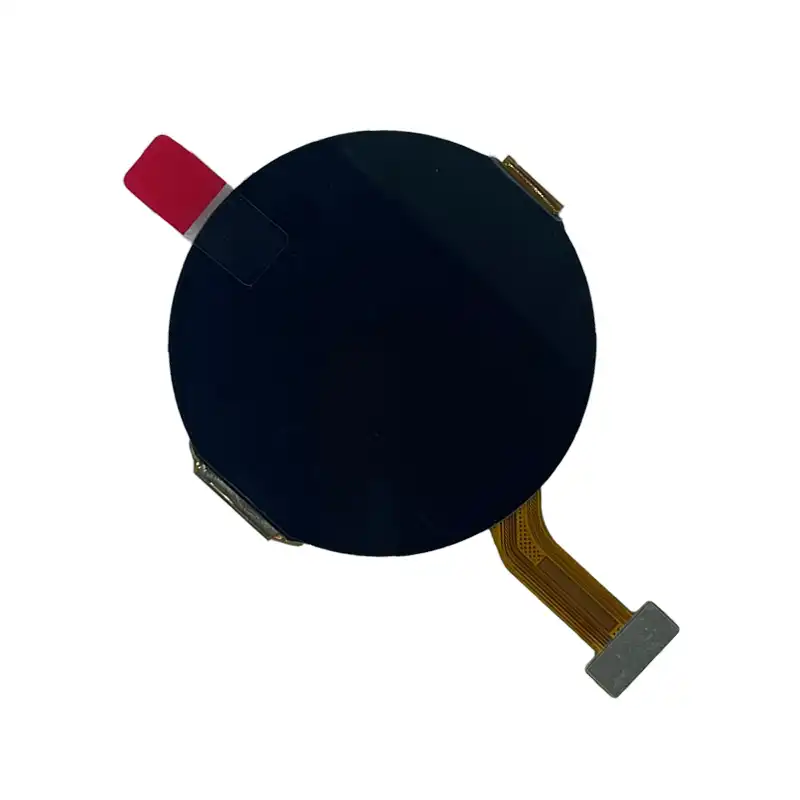

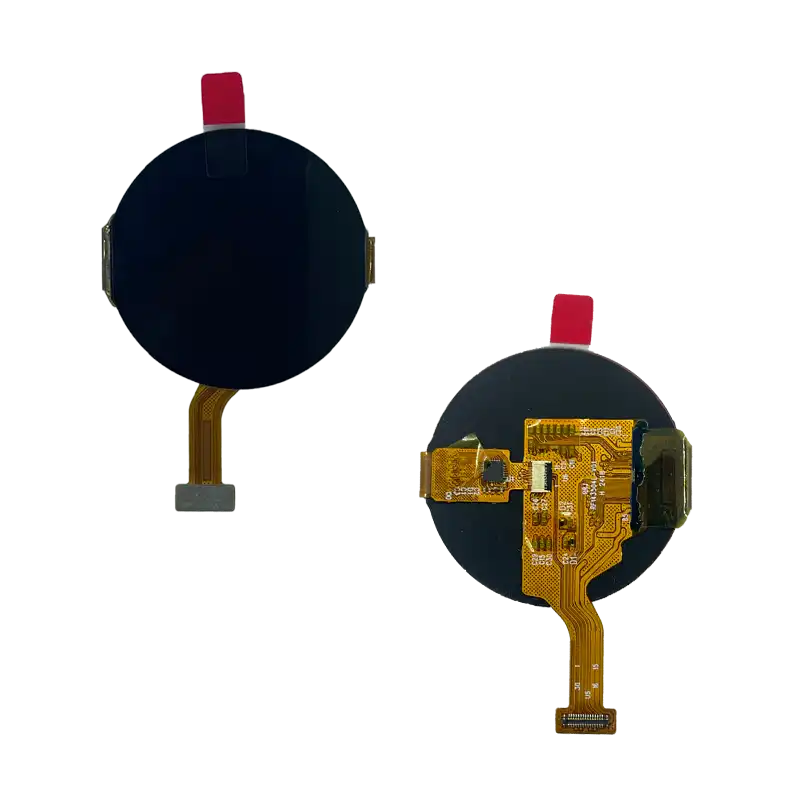

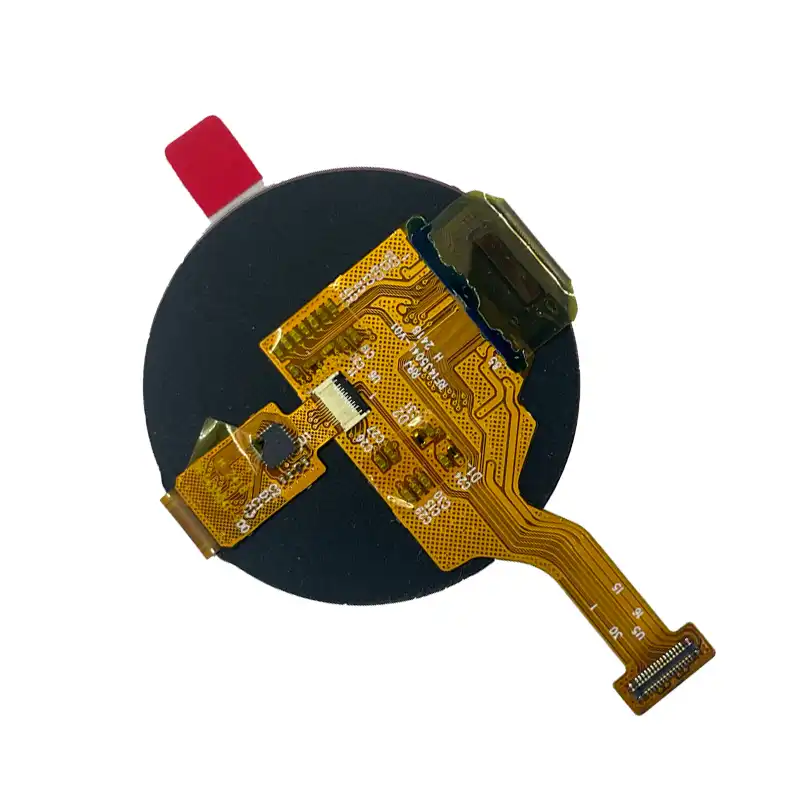

1.43" Circular OLED 466x466 MIPI for Smartwatches/Industrial

Model:BR143504-A1 Size:1.43inch Display Type:IPS Touchscreen:Capacitive Interface:MIPI Resources: 1.43INCH AMOLED Module

Inquiry Custom

DESCRIPTION

Shenzhen Brownopto 1.43" circular AMOLED: 466×466 full-round resolution, 450-nit brightness with MIPI interface. Designed for wearables, industrial knobs and medical devices. Features CST820 touch IC and -20℃~70℃ operation

Key Features

1.True Circular Display

Resolution: 466×466 full-circle pixels (no cropping)
Diameter: 36.35mm active area (1:1 aspect ratio)
Brightness: 450 nits (typ.), 495 nits peak (sunlight mode)
Color: NTSC 105% gamut, 100,000:1 contrast

2.Industrial-Grade Design

Interface: Single-lane MIPI DSI
Touch: Integrated CST820 IC (glove/wet hand support)
Temp range: -20℃~70℃ operating (-30℃~80℃ storage)
ESD: ±8KV air / ±4KV contact discharge

3.Optimized for Circular UI

Zero-bezel edge display (92.3% active area ratio)

1ms response time for dynamic rotary interfaces

Gamma 2.2±0.2 for smooth radial gradients

Technical Highlights

CS2000A-calibrated uniform brightness (<15% deviation)
240hrs 85℃/85% RH reliability certified
2μA deep sleep current

DisplayMode	AMOLED
Screen Size (inch)	1.43
Resolution	466(W)×466(H)
ActiveArea(mm)	36.348(W)×36.348 (H)
PixelPitch (um)	63.2 (W)×63.2(H)
Outline(mm)	39.15(W)x39.23(H)x0.8(D)
TP Outline	TBD
TechnologyType	LTPS
ColorDepth	16.7M
Interface	MIPI 4LANE
Surface Treatment	Hard Coating
Driver IC	CO5300
TouchIC(Type)	CST820
Luminance	450 cd/m²
Viewing Angle	Full view
Light Source	Self-luminous
Temperature Operation	-20°C to 70°C
Temperature Storage	-30°C to 80°
Note 1: Requirements on Environmental Protection: RoHS

Applications

✅ Wearables: Smartwatch faces, fitness trackers
✅ Industrial Knobs: CNC controls, mixer panels
✅ Medical: Portable monitors, glucose meters
✅ Automotive: Dashboard displays, HVAC controls
