4.4 inch AMOLED Display Module BR440102-A1 with Touch | 568×1210 MIPI Interface

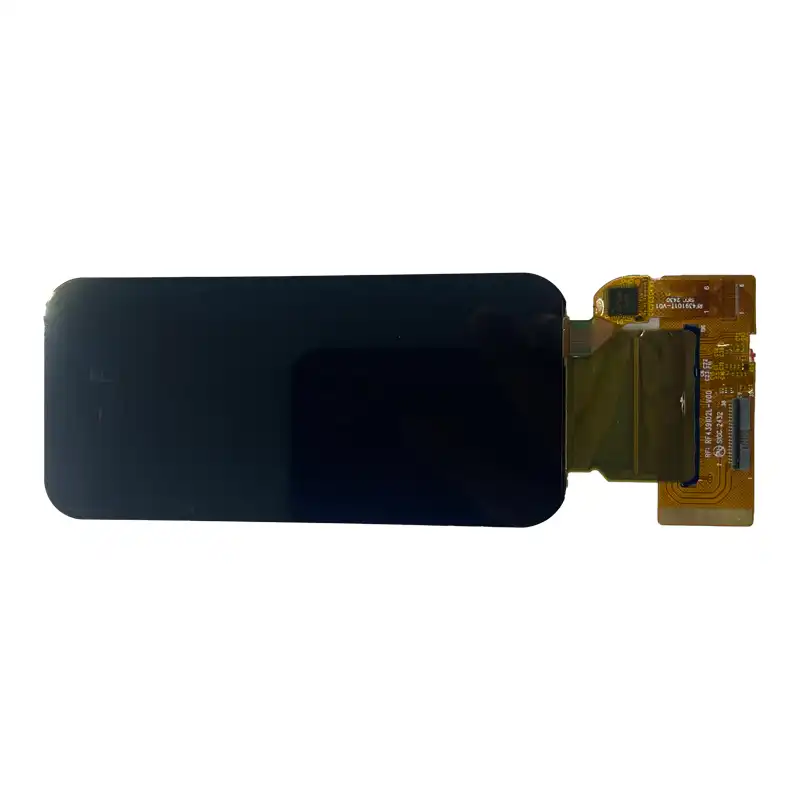

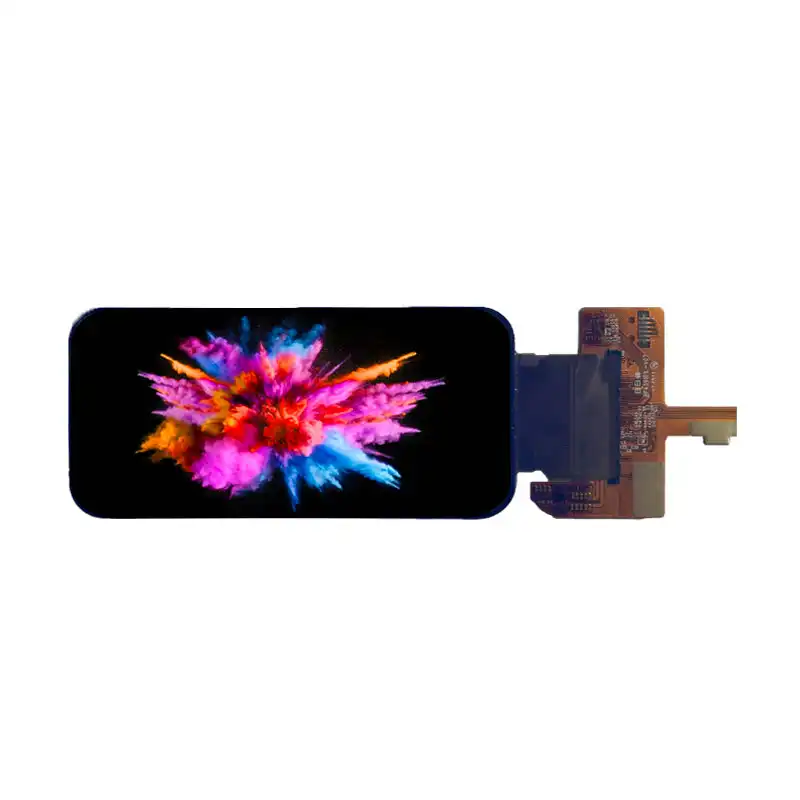

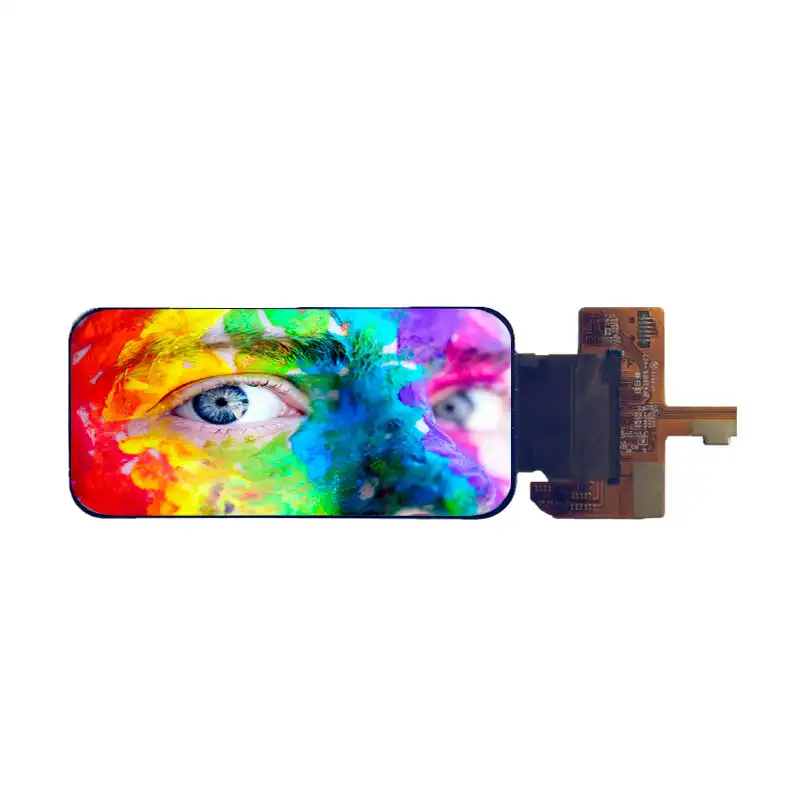

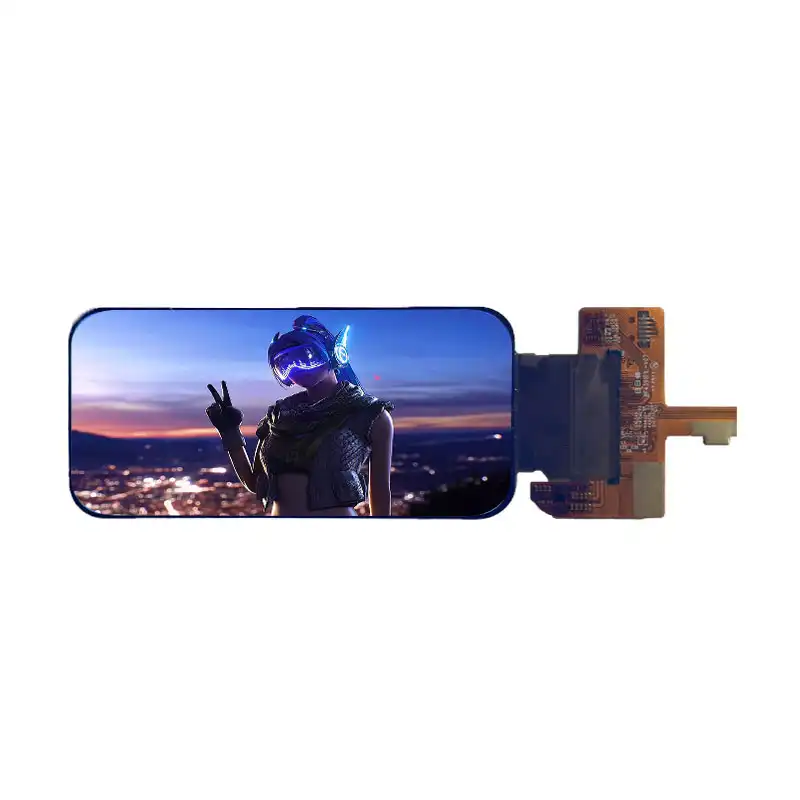

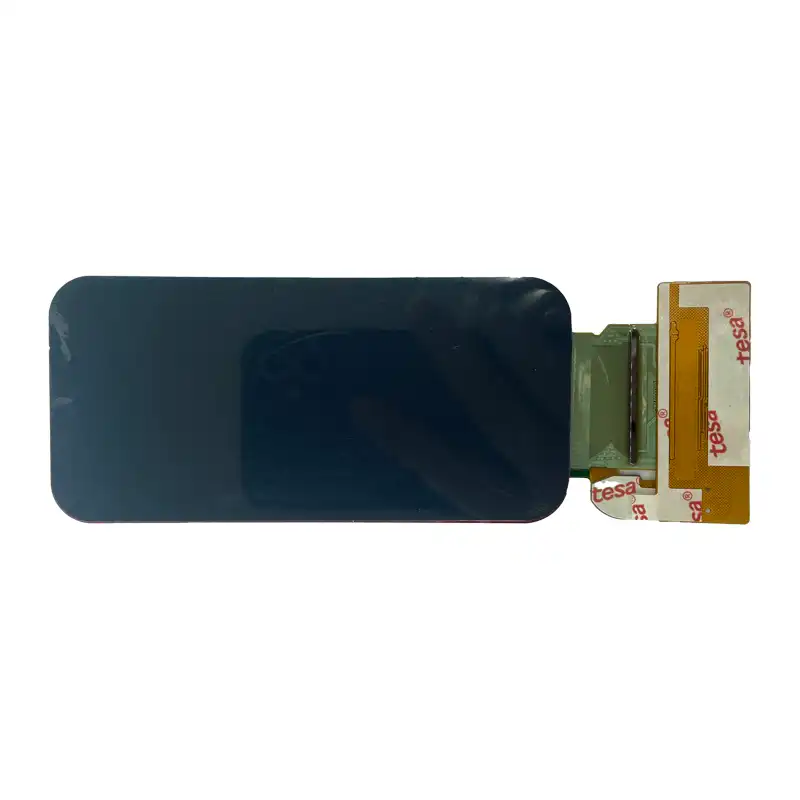

The 4.40-inch AMOLED module (Model: BR440102-A1) from Shenzhen Brownopto Technology Co., Ltd. is a high-resolution display designed for smart devices, industrial HMIs, and advanced user interfaces. With a sharp resolution of 568 × 1210 pixels and driven by the SD5207 driver IC, this LTPS-based AMOLED panel delivers stunning image quality, deep blacks, and ultra-high contrast. It features a MIPI 2-Lane interface, ensuring fast data transmission and seamless integration with modern SoCs. The module achieves a typical brightness of 600 nit, supports 16.7 million colors, and offers excellent viewing angles (80° in all directions). Built with an integrated touch panel (On-Cell Touch), it's ideal for compact yet powerful interactive applications. Operating reliably from -30°C to +80°C, this display combines performance, durability, and sleek design.

Key Features

• Display Size: 4.40 inch diagonal

• Resolution: 568 × 1210 pixels

• Active Area: 47.3712 × 100.914 mm

• Module Size: 49.13 × 103.55 × 0.75 mm (with FPC)

• Technology: AMOLED + LTPS Backplane

• Display Colors: 16.7 million (24-bit)

• Interface: MIPI DSI (2-Lane)

• Driver IC: SD5207

• Touch Panel: On-Cell Capacitive (CST3530 IC)

• Contrast Ratio: 100,000:1 (typ)

• Brightness: 600 nit (typ)

• NTSC Coverage: 97% (typ)

• Viewing Angle: 80° all directions (CR≥10)

• Operating Temperature: -30°C to +70°C

• Storage Temperature: -40°C to +80°C

• Lifetime: 250 hours (LT95, white pattern, 25°C)

Technical Specifications

Optical Performance

• Color Coordinates (CIE1931):

• Red: x=0.682, y=0.315

• Green: x=0.236, y=0.722

• Blue: x=0.138, y=0.046

• White: x=0.300, y=0.310

• NTSC Coverage: 97% (typical)

• Luminance Uniformity: ≥85% (measured at full white)

• Response Time: ≤2 ms (rise + fall)

Interface & Connectivity

This module uses a standard MIPI DSI 2-Lane interface for high-speed communication. Touch functionality is provided via I²C through the CST3530 controller. Key pins include:

• Power: ELVDD (+4.6V), ELVSS (-3.5V), AVDD (7.6V), VCI (3.0V), IOVCC (1.8V)

• MIPI Signals: CLKP/N, D0P/N, D1P/N

• Control: RESX (Reset), TE (Tear Effect)

• Touch: TP_SDA, TP_SCL, TSP_INT, TP_RST

Application Scenarios

• Smart Devices: Smartphones, handhelds, AR/VR accessories

• Industrial HMIs: Control panels, test equipment, automation systems

• Medical Devices: Portable monitors, diagnostic tools

• Consumer Electronics: Audio players, IoT controllers, wearables

• Automotive: Dashboard displays, infotainment systems (non-safety)

Handling Precautions

• Avoid exposure to moisture or high humidity environments.

• Follow proper ESD protection procedures during assembly.

• Adhere to recommended power-on/off sequences (see datasheet).

• Do not apply pressure to the display surface.

• Store in dark, dry conditions below 60% RH when not in use.

• Protect FPC from bending or twisting beyond specification.
