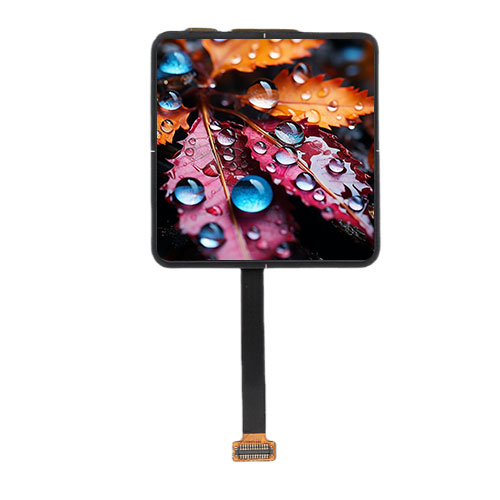

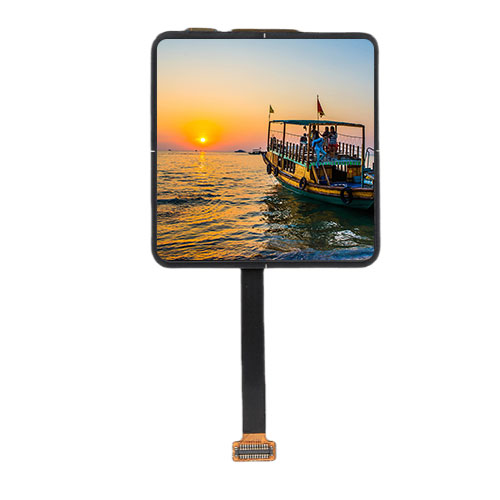

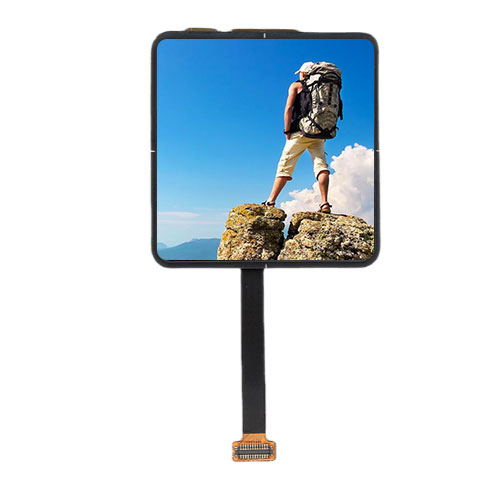

2.0" AMOLED Display Module with QSPI Interface for Industrial and Embedded Systems
Core Specifications
Size: 2.0" diagonal (active area: 47.3712 mm × 100.914 mm)
Resolution: 480×800 pixels (16.7M colors)
Brightness: 600 cd/m² (standard) with Gamma 2.2/2.5 options
Interface: QSPI (Serial Peripheral Interface) for seamless integration
Operating Temperature: -30°C to +70°C (industrial-grade durability)
Storage Temperature: -30°C to +70°C
Certifications: RoHS compliant
Power Consumption: Optimized for low-power embedded systems
Key Technical Advantages
1. High-Brightness Display (600 cd/m²)
Ensures visibility in direct sunlight or low-light industrial environments.
Gamma correction options (2.2/2.5) for precise color calibration.
2. QSPI Interface Compatibility
Simplifies integration into embedded systems (e.g., IoT devices, industrial controllers).
Reduces wiring complexity for compact designs.
3. Rugged Industrial Design
Survives mechanical shocks and vibrations in harsh environments.
Wide operating temperature range (-30°C to +70°C) for extreme conditions.
4. RoHS Compliance
Eco-friendly manufacturing for global market compliance.
Reliability & Quality Assurance
Defect-Free Manufacturing:
< 0.1% dead pixels (per IEC 61290-2-11).
Uniform brightness (>85% across the display).
ESD Protection: Resists ±2 kV contact discharge (IEC 61000-4-2).
Environmental Testing:
High-Temperature High-Humidity Test: 60°C, 90% RH for 240 hours.
Thermal Cycling: -40°C to +80°C (100 cycles).
Vibration Resistance: 10–55 Hz, 1.5 mm amplitude (1 hour per axis).
Target Applications
Industrial Control Panels: Durable, high-contrast display for factory automation.
Embedded Systems: QSPI interface ideal for IoT gateways, smart meters, and robotics.
Portable Electronics: Low-power design suitable for handheld devices and wearables.
Why Choose This Module?
Proven Reliability: Passes 100+ hours of thermal cycling and vibration testing.
Engineer-Friendly Integration: Detailed datasheets, QSPI compatibility, and technical support.
Cost-Effective for OEMs: Bulk pricing and customization options for large-scale production
