Compact. Bright. High Contrast.

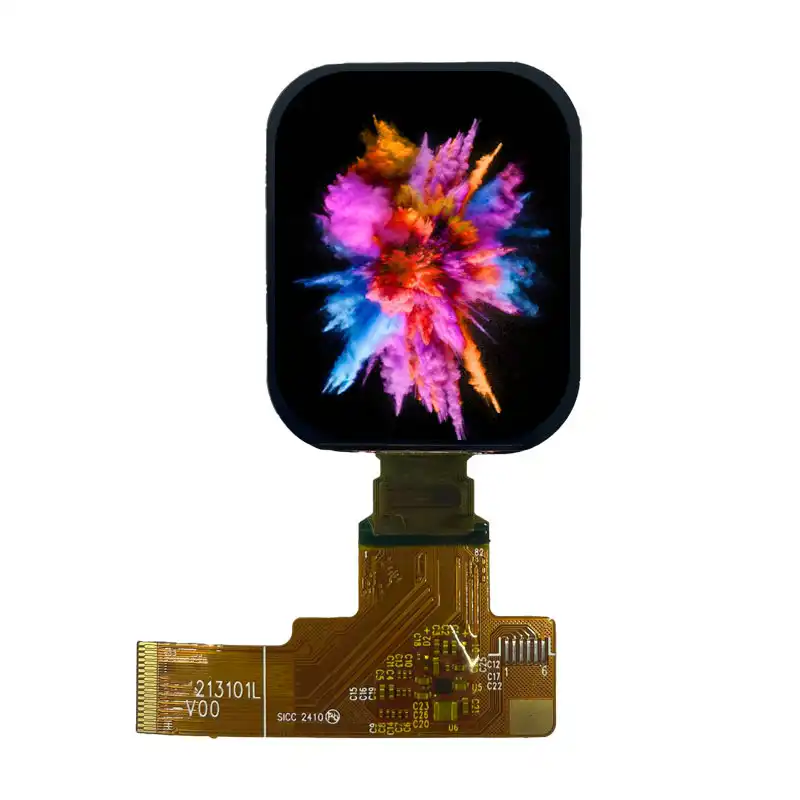

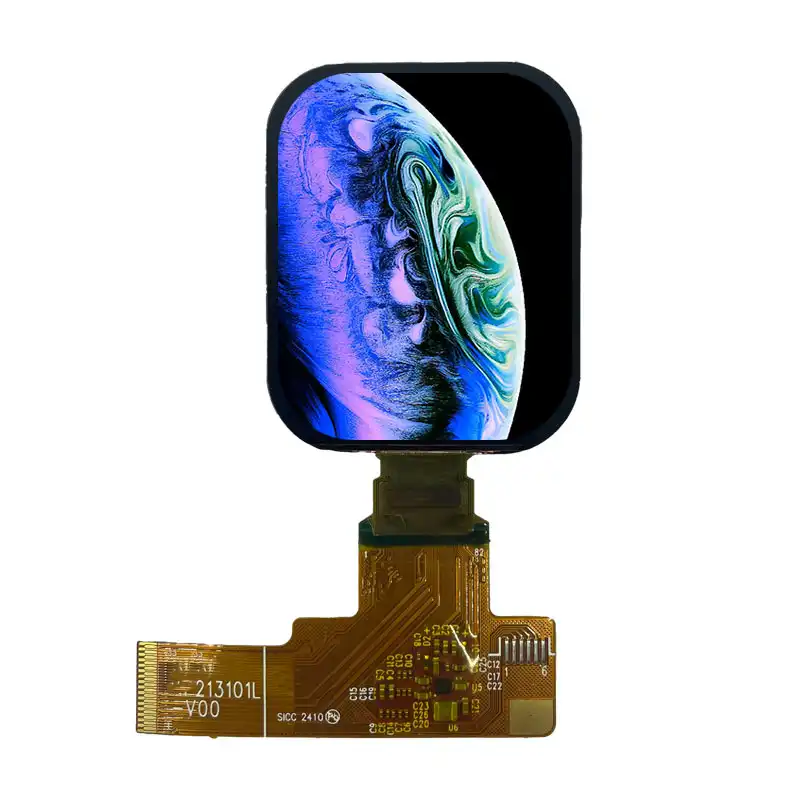

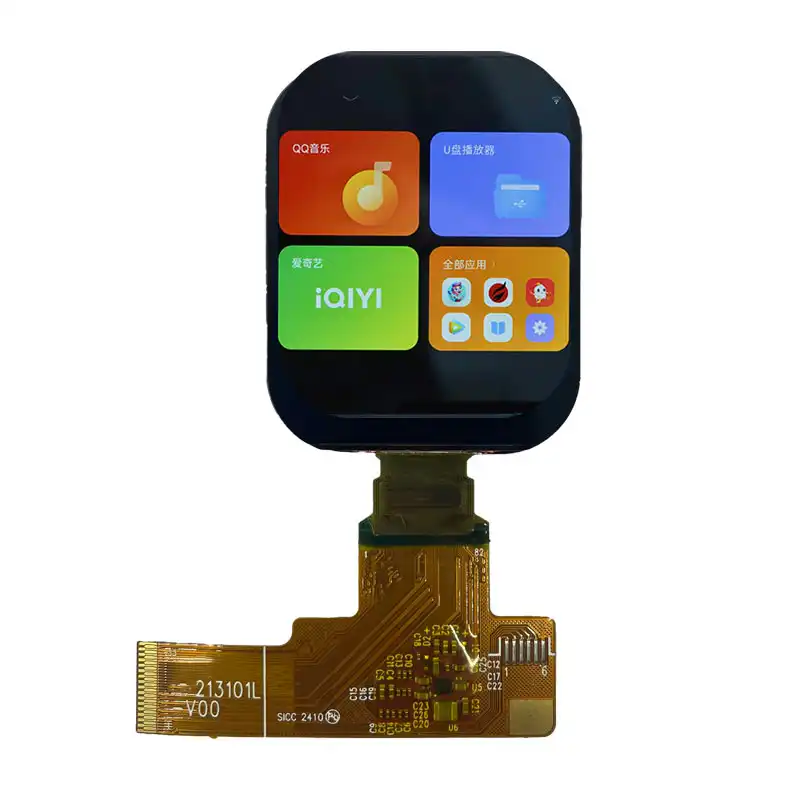

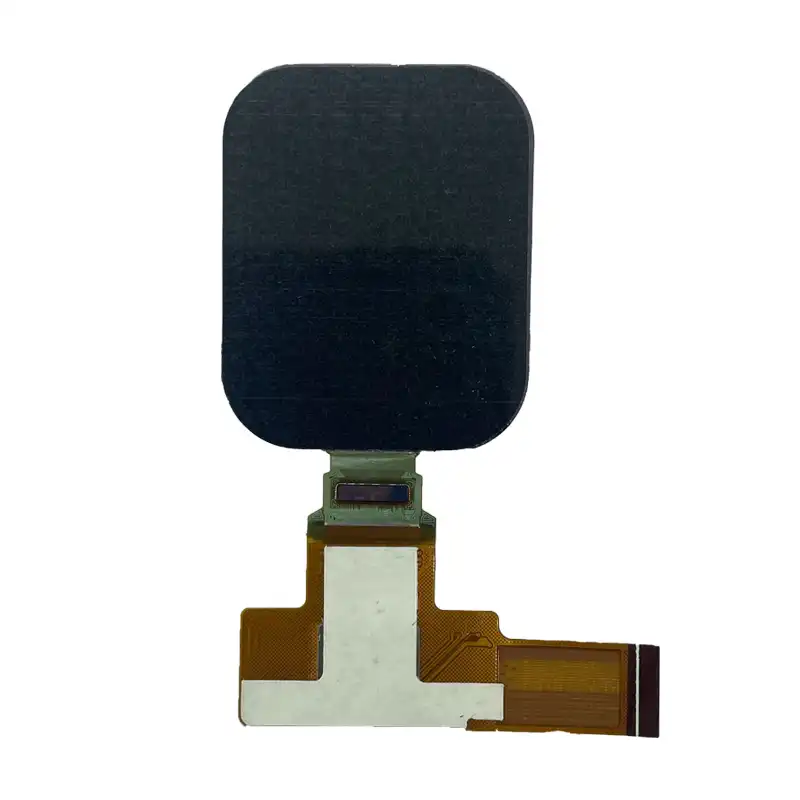

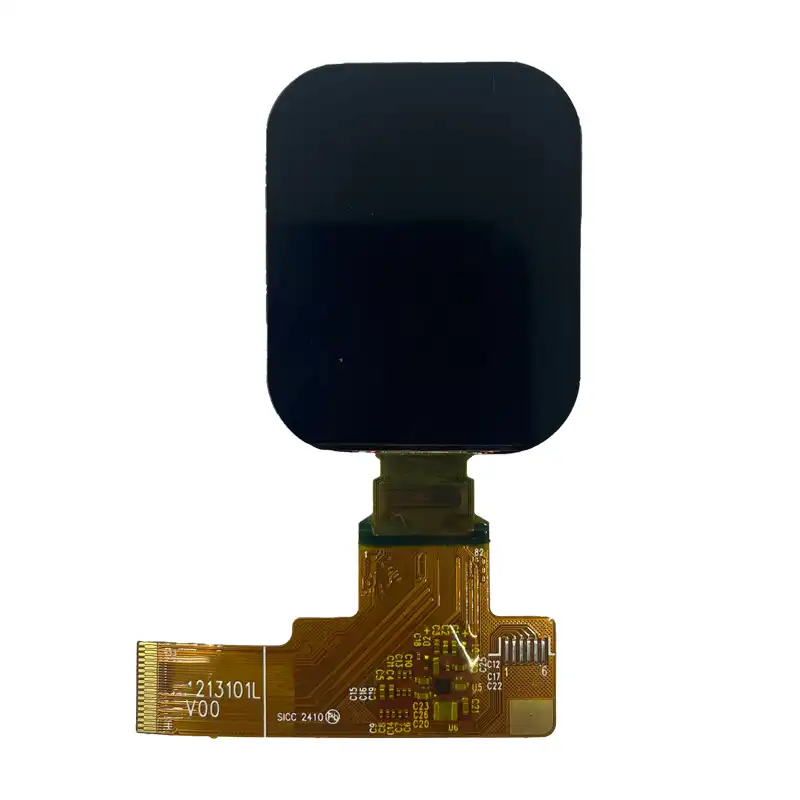

The 2.08-inch AMOLED module (BR208102-A1) from Shenzhen Brownopto Technology Co., Ltd. is a compact, high-performance display ideal for space-constrained applications. With a resolution of 320 × 680 pixels and an active area of 24.896 × 53.024 mm, this LTPS-based AMOLED panel delivers sharp visuals and vibrant colors. It features a MIPI DSI interface for efficient communication with host processors and is driven by the CO5300 driver IC. The display achieves a typical brightness of 600 nit and offers excellent contrast (>60,000:1), ensuring clear visibility even in bright environments. Designed for low power consumption, it supports Normal, Standby, and HBM modes, making it perfect for battery-powered devices like smartwatches, IoT gadgets, and portable medical tools.
Key Features
Display Size: 2.08 inch diagonal
Resolution: 320 × 680 pixels
Active Area: 24.896 × 53.024 mm
Module Size: 26.8 × 56.2 × 0.75 mm
Technology: AMOLED + LTPS Backplane
Color Depth: 16.7 million colors (24-bit)
Interface: MIPI DSI (1/2-Lane)
Driver IC: CO5300
Brightness: 600 nit (typ)
Contrast Ratio: 60,000:1 (min)
Viewing Angle: 85° all directions
Frame Rate: 60 Hz
Operating Temp: -30°C to +80°C
Lifetime: 200 hours (LT95, 25°C)
Technical Specifications
| Parameter | Value |
|---|---|
| Display Size | 2.08 inch |
| Resolution | 320(W) × 680(H) |
| Pixel Pitch | 77.8 × 77.98 μm |
| Active Area | 24.896(W) × 53.024(H) mm |
| Module Dimensions | 26.8(W) × 56.2(H) × 0.75(D) mm |
| Display Type | AMOLED |
| Backplane | LTPS |
| Color Depth | 16.7M (24-bit) |
| Interface | MIPI DSI (1/2-Lane) |
| Driver IC | CO5300 |
| Frame Frequency | 60 Hz |
| Luminance (Typ) | 600 nit |
| Uniformity (W255) | ≥85% |
| Contrast Ratio | 60,000:1 (min) |
| Viewing Angle | 85° (all directions, CR≥10) |
| NTSC Ratio | 97% (typ) |
| Lifetime (LT95) | 200 hrs (white pattern, 25°C) |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -40°C to +85°C |
Optical Characteristics
White Point (CIE1931): x=0.300, y=0.315
Color Coordinates:
Red: x=0.682, y=0.315
Green: x=0.240, y=0.710
Blue: x=0.140, y=0.048
Power Consumption: 239mW (Normal), 0.68mW (Standby), 444mW (HBM)
Interface & Power
This module uses a MIPI DSI interface with flexible lane configuration. Key electrical specs:
Analog Supply (VCI): 2.8V (typ)
Logic Supply (IOVDD): 1.8V or 2.8V
ELVDD Output: 3.3V
ELVSS Output: -3.3V
Control Signals: Reset (RSTX), TE (Tear Effect)
Application Scenarios
Wearables: Smartwatches, fitness trackers
IoT Devices: Smart sensors, home automation panels
Medical Tools: Portable monitors, diagnostic handhelds
Industrial HMIs: Compact control interfaces
Consumer Electronics: Audio players, mini displays
Handling Precautions
Avoid direct pressure on the display surface.
Use ESD-safe equipment during assembly.
Follow correct power-on/off sequence (refer to datasheet).
Store in dry, dark conditions when not in use.
Do not exceed absolute maximum ratings to prevent damage.
Ready to Use the BR208102-A1?
Contact us for samples, technical support, or customization.
Request a Sample
