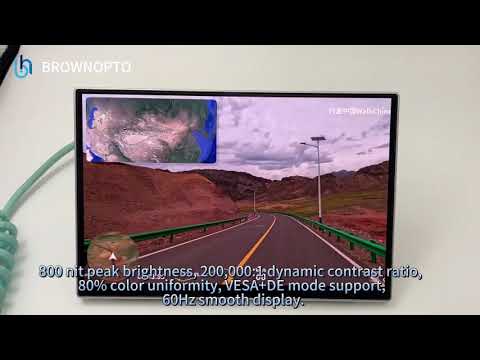

The 7.0 Inch AMOLED Display Module is a high-resolution, wide-viewing display solution designed for premium applications. With 1280×800 resolution, 840 nits brightness, and a contrast ratio of 200,000:1, it delivers vivid images and superior readability, making it suitable for automotive displays, medical devices, industrial control systems, and consumer electronics.
Key Features
Screen Size: 7.0 inch AMOLED
Resolution: 1280 × 800 pixels
Brightness: 840 cd/m² (typ.)
Contrast Ratio: 200,000:1
Viewing Angle: 80° (all directions)
Response Time: ≤0.1 ms
Interface: LVDS
Color Depth: 16.7M (24-bit RGB)
Driver IC: HX8903
Environmental Compliance: RoHS 2.0
Technical Specifications
| Parameter | Value |
|---|---|
| Display Size | 7.0 inch |
| Resolution | 1280 × 800 pixels |
| Brightness | 840 cd/m² (typ.) |
| Contrast Ratio | 200,000:1 |
| Viewing Angle | 80° (all directions, CR ≥10) |
| Response Time | ≤0.1 ms |
| Interface | LVDS |
| Color Depth | 16.7M (24-bit RGB) |
| Driver IC | HX8903 |
| Operating Temp. | -30°C ~ +85°C |
| Storage Temp. | -40°C ~ +90°C |
| Lifetime | >5000 hours @25°C |
| Compliance | RoHS 2.0 |
Application Scenarios
Automotive: In-vehicle infotainment systems, digital dashboards, and rear-seat entertainment.
Medical: Diagnostic equipment and patient monitoring requiring sharp and reliable visuals.
Industrial: Control systems, rugged tablets, and outdoor high-brightness displays.
Consumer Electronics: High-end tablets, smart home hubs, and portable devices.
Handling Precautions
Avoid mechanical shocks or pressure on the screen surface.
Use a soft, lint-free cloth for cleaning; avoid harsh chemicals.
Prevent electrostatic discharge by grounding during assembly.
Do not attempt to disassemble or modify the AMOLED module.
Frequently Asked Questions (FAQ)
What is the resolution of the 7.0 Inch AMOLED Module?
The module provides a resolution of 1280×800 pixels, delivering sharp and clear images.
What is the brightness level of this AMOLED module?
It reaches up to 840 cd/m² typical brightness, suitable for outdoor and automotive environments.
What applications use the 7.0 Inch AMOLED Display?
Automotive dashboards, medical equipment, industrial control systems, and consumer devices.
What is the contrast ratio of this AMOLED module?
The display achieves up to 200,000:1 contrast ratio, ensuring deep blacks and vivid colors.
What is the operating temperature range?
The AMOLED module operates from -30°C to +85°C, making it reliable in extreme environments.
Does the AMOLED module comply with RoHS standards?
Yes, the 7.0 Inch AMOLED Display Module is fully compliant with RoHS 2.0 environmental standards.
Interested in integrating this AMOLED solution?
Request a Quote
