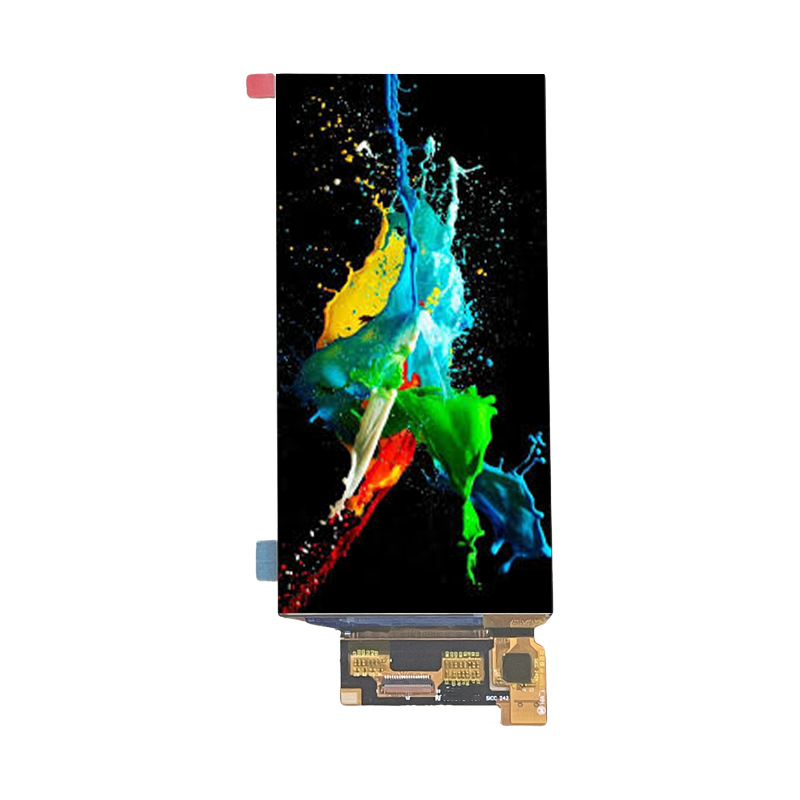

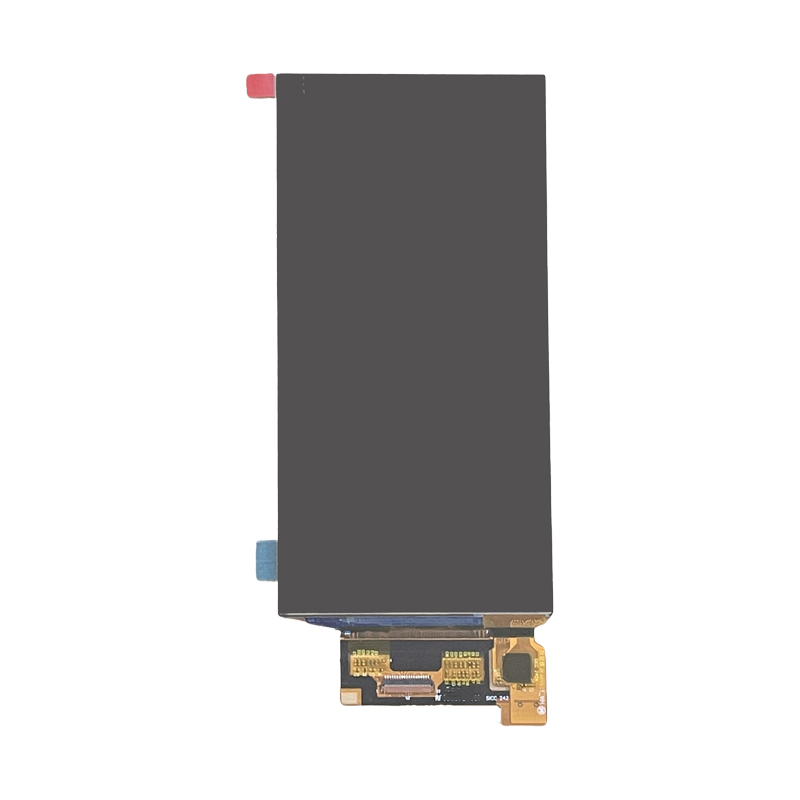

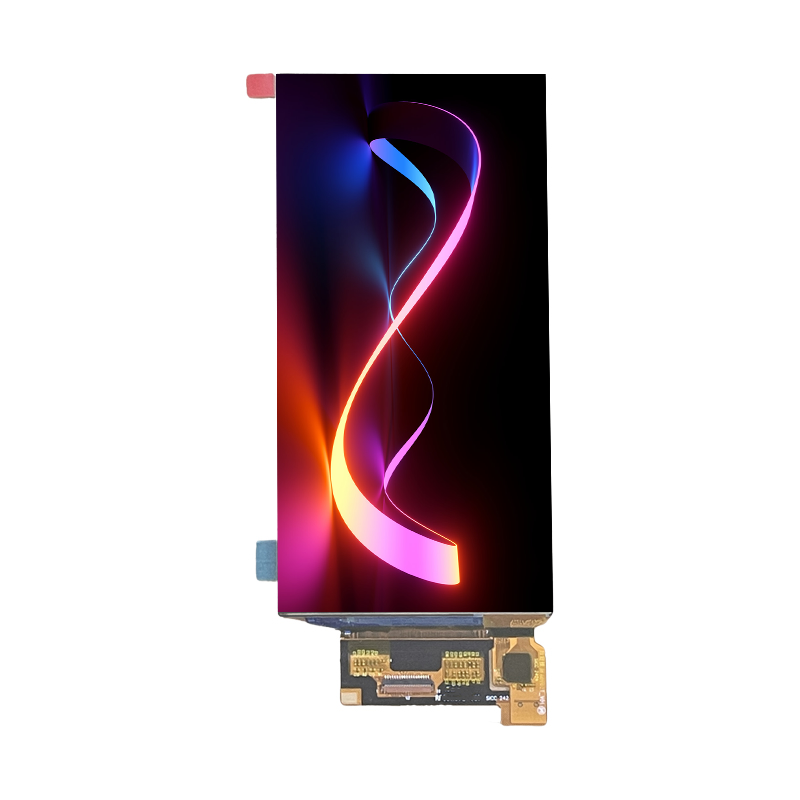

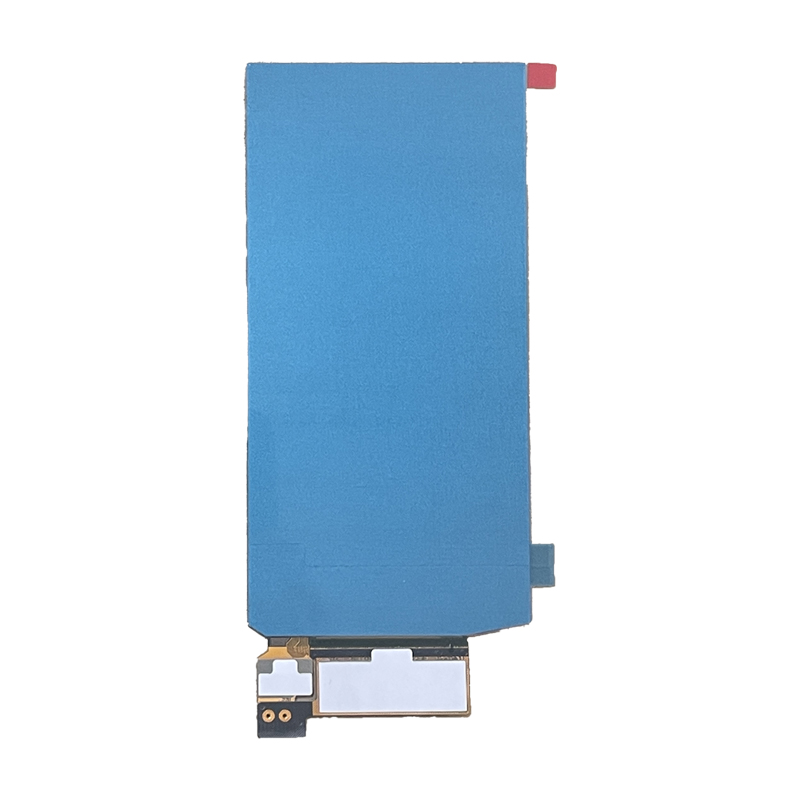

6.01" AMOLED Display
Model: BR601108-A1 (Industrial-grade Wide-Temperature Touch Solution)
Core Parameters
Display Technology: LTPS AMOLED
Resolution: 1080×2160 (FHD+, 403 PPI)
Brightness: 360 cd/m² (Standard)
Color Gamut: 95% DCI-P3 (High Color Saturation)
Interface: MIPI DSI 4-lane
Touch: Capacitive 10-point touch (IC: CST148)
Thickness: 0.773mm (Module)
Operating Voltage: VDDIO 1.65-3.3V / VCI 2.75-3.3V
Wide-Temperature Operation: -30°C ~ +85°C (Industrial-grade Reliability)
Driver IC: CH13721C
Power Consumption: 147mA@ELVDD (Full White Mode)

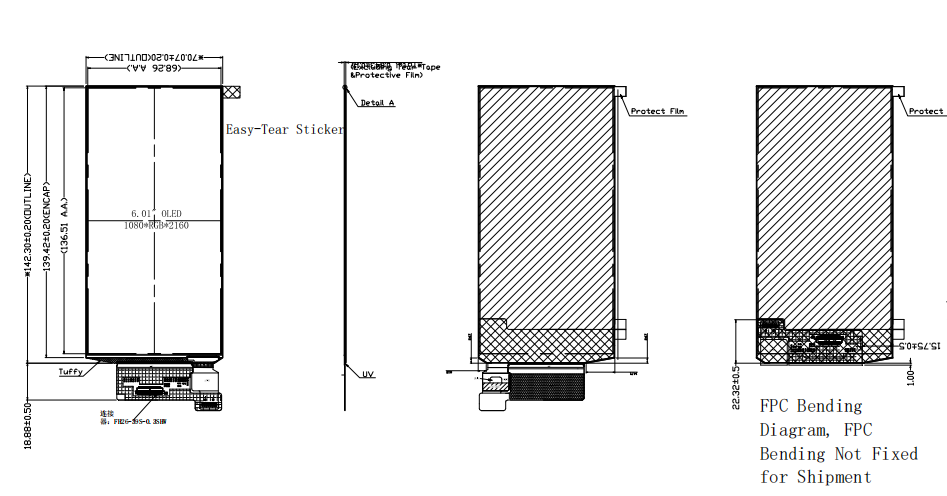

DisplayMode AMOLED Screen Size (inch) 6.01 Resolution 1080x2160 ActiveArea(mm) 68.256(W)×136.512 (H) PixelPitch (um) 63.2 (W)×63.2(H) Outline(mm) 70.066(W)x142.297(H)x0.773(D) TP Outline 76.40(W)x156.60(H)x2.0(D) TechnologyType LTPS ColorDepth 16.7M Interface MIPI 4LANE Surface Treatment Hard Coating Driver IC CH13721C TouchIC(Type) CST148 Luminance 360 cd/m² Viewing Angle Full view Light Source Self-luminous Temperature Operation -20°C to 70°C Temperature Storage -30°C to 80° Note 1: Requirements on Environmental Protection: RoHS
Key Features
✅ Ultra-thin Frameless Design: 0.7mm OLED glass layer, no backlight module, supports customized PCB integration
✅ MIPI High-Speed Transmission: 4-channel DSI interface, supports a transmission rate of up to 896 Mbps
✅ Strong Environmental Adaptability: Passes certifications for startup at -30°C, operation at 70°C, and ±8kV ESD
✅ Precise Touch Control: Integrated projected capacitive touch, supports TE anti-tearing signal (Tearing Effect)
Target Application Fields
▶ Satellite Communication Equipment
A high brightness of 360 cd/m² ensures visibility even in strong outdoor light, while the -30°C wide temperature range supports operation in extreme environments.
▶ Law Enforcement Recorder/Police Terminal
10-point touch control enables tactical operations, and the MIPI interface is compatible with embedded systems, meeting the demands of mobile law enforcement.
▶ Industrial 3D Printing Control Screen
1080P high-definition display captures printing details clearly, with tolerance to 85°C high temperatures for workshop environments, and an anti-static design (IEC61000-4-2).
▶ Portable Medical Devices
A 95% DCI-P3 color gamut accurately reproduces medical images, and the ultra-thin module saves device space.
