Stretched LCD Solutions for Restaurants and Hospitality Venues

Introduction to Stretched LCD Displays

Stretched LCD displays—also known as bar LCD, ultra-wide LCD, or shelf-edge LCD—are panels with elongated aspect ratios such as 16:3 or 32:9. By repurposing narrow architectural spaces (over counters, along bars, elevator jambs, corridor soffits), they deliver high-impact content without overwhelming the interior design. In restaurants and hospitality, where every inch of front-of-house real estate matters, the stretched form factor turns underused lines of sight into revenue-generating media.

Why do ultra-wide formats fit hospitality venues so well? Because sightlines in dining rooms, lobbies, and concourses are typically horizontal. Guests scan across host stands, countertops, and bars; stretched displays align to that motion, minimizing obstruction while maximizing legibility. They fit where standard 16:9 screens look bulky or cause glare, and they can be tiled into ribbons to guide guests from entry to order point.

Key Benefits of Stretched LCD in Hospitality

Ultra-Wide Form Factor for Limited Spaces

Bars, back-bars, soffits, and menu rails are slim. Stretched displays nestle into these zones with minimal projection, preserving clearances and customer flow. You can present category headers, upsell bands, or allergen icons without blocking the kitchen pass or POS.

High Brightness & Wide Viewing Angles for Public Areas

Hospitality lighting is mixed—downlights, wall washers, daylight from glazing. Stretched LCDs with 700–1500 nits and IPS/VA panels maintain readability across wide seating areas and standing queues. Anti-glare or anti-reflective coatings help tame hotspots.

Energy Efficiency for 24/7 Operation

Efficient backlights, ambient light sensors, and scheduled dimming reduce energy consumption during off-peak hours. Compared to LED cabinets sized for long ribbons, stretched LCDs often use less power at equal perceived brightness in close-range environments.

Seamless Integration with Restaurant & Hotel Interiors

Custom enclosures, flush mounts, and finish-matched trims allow bar-type screens to disappear into millwork. With proper cable routing and CMS templates that respect brand typography and color, the result looks bespoke rather than bolted-on.

Restaurant Use Cases

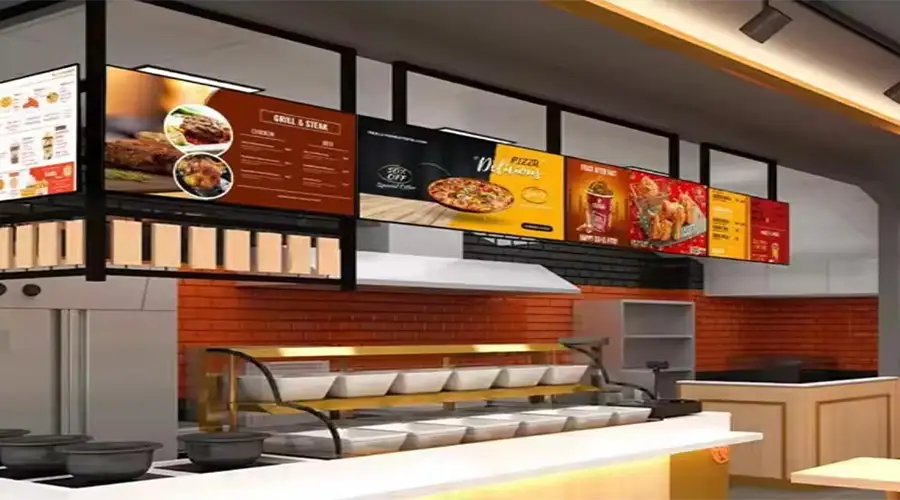

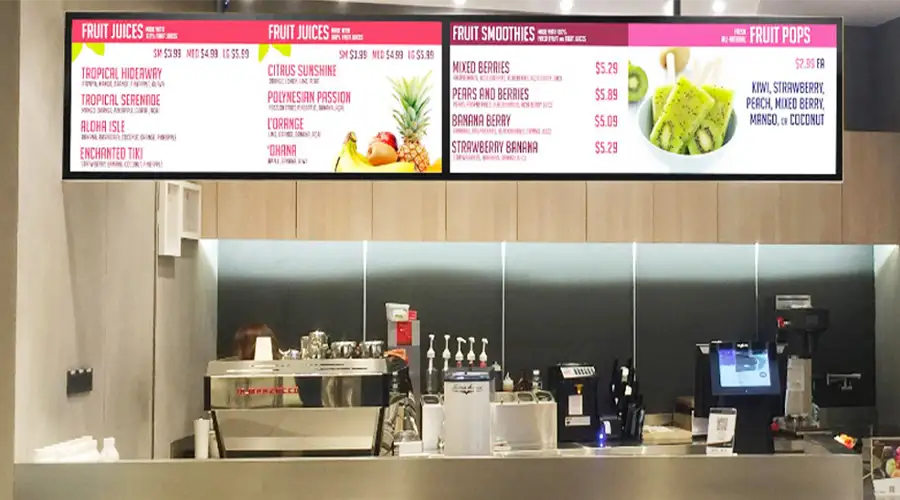

Digital Menu Boards

Ultra-wide boards excel at category segmentation: burgers | bowls | sides | beverages. Templates can adapt counts and pricing automatically from the POS. Day-part rules swap breakfast layouts to lunch, inject happy-hour pricing, and highlight low-stock substitutions.

• Dynamic pricing tied to POS and inventory for accurate labels.

• Nutritional badges and allergen flags aligned to items.

• Animated accents to draw attention without overwhelming the whole canvas.

Promotional Displays

Seasonal offers and combo meals benefit from motion and proximity. Stretched banners can run above the main menu as an upsell ribbon or along the bar to promote flights and pairings. Integrate loyalty program QR codes sized for 1–2 m scans.

Queue & Order Status Displays

Self-service lanes and pickup shelves need concise progress updates. Wide tickers list order numbers, estimated prep times, and pickup instructions. Color cues and subtle motion guide attention without strobing or distracting the kitchen.

Hospitality Venue Applications

Hotel Lobby Information Screens

Welcome guests with location-aware content: daily events, meeting room allocations, concierge tips, and transportation updates. Stretched displays fit transom spaces and elevator lobbies where standard TVs are cumbersome.

Entertainment & Cinema Bars

Loop film trailers, concession combos, and seat availability along concession counters. The ultra-wide band complements architectural lines while keeping the sightline open to staff.

Transportation Terminals with Restaurants

Blend departure boards with food service menus. A unified stretched ribbon can reserve left segments for schedules and right segments for quick-serve offers, synchronized by time of day and passenger flows.

Technical Features of Stretched LCD Displays

Available Sizes & Aspect Ratios (8.6–86 inches, 16:3, 32:9, custom)

Common SKUs range from 8.6", 12.3", 23.1", 28.6", 35", to 49" and 86" stretched, with aspect ratios such as 16:3, 32:9, and fully custom cuts. Choose dimensions that respect sightlines, counter depth, and mounting constraints.

Resolutions & Connectivity (HD, FHD, 4K / HDMI, LVDS, RS232, Network control)

Native resolutions vary from HD-class to 4K wide. For simple deployments, HDMI input with an Android/SoC media player or signage box suffices. For integrated systems, LVDS/eDP panels with embedded boards reduce cabling. RS-232/CEC allows power and input control; networked CMS enables remote scheduling and health checks.

Durability (24/7 operation, wide temp range, IP-rated)

Look for 24/7 duty-cycle ratings, wide temperature tolerance (e.g., 0–40°C indoor; higher for vestibules), and appropriate IP ratings if near entrances. Conformal coatings and metal enclosures improve longevity in kitchens and bars.

Customization (touch screen, enclosure, software integration)

Add PCAP touch overlays for interactive menus or wayfinding. Specify custom bezels, color-matched trims, and glass treatments (AG/AR/AF). Ensure your CMS integrates with POS for price sync and with loyalty apps for dynamic offers.

Comparison with Traditional Displays

Stretched LCD vs Standard LCD Menu Boards

• Fit & aesthetics: Stretched aligns to architectural lines; standard 16:9 often feels bulky.

• Legibility: Ultra-wide layouts suit category ribbons; standard LCDs require multiple panels or cramped text.

• Cabling: Fewer screens and simplified mounts reduce clutter.

Stretched LCD vs LED Panels in Restaurants

• Pixel pitch: At close range (1–3 m), LCD’s high PPI beats fine-pitch LED cost and moiré risk.

• Reflections: LCD with AR glass can outperform glossy LED modules in bright lobbies.

• Maintenance: LCDs have fewer field-replaceable tiles; LEDs can be modular but need alignment and color calibration.

Cost-Effectiveness and ROI

LCD hardware costs are predictable across sizes; installation is simpler in narrow spaces. Operators report faster content deployment, more flexible day-parting, and measurable uplifts on promoted items—often offsetting CAPEX within a year in high-traffic venues.

Case Study Example

Fast-Food Chain Using 32:9 Stretched LCDs for Menus

A national quick-service brand replaced a three-panel 16:9 menu with a single 49" stretched 32:9 ribbon above each counter. The new layout separated “Meals | Add-ons | Drinks” with an animated upsell band. Integrated POS sync ensured prices updated chain-wide every morning.

• Outcome: 14% uplift on add-ons, 9% faster average order times due to clearer grouping.

• Ops: Centralized content reduced store-level updates by 50%.

• Guest feedback: Less glare and better readability from the queue.

Hotel Group Using Bar LCDs in Elevators and Lobbies

A multi-property hotel group installed 23.1" bar displays in elevators for event schedules and 35" in lobbies for welcome messages and local tips. Templates switched automatically by time and event calendar.

• Outcome: 18% increase in event attendance from on-site guests.

• Ops: Concierge calls about schedules dropped significantly.

• Brand: Custom trims matched interior finishes, maintaining a premium look.

Buying Considerations for Restaurants & Hospitality Venues

Choosing the Right Size & Aspect Ratio

Map viewing distances and font sizes first. For 1–2 m viewing, aim for 20–28 px cap height for key prices and 14–18 px for descriptors. Select aspect ratios that prevent truncation of category headings and allow logical grouping (e.g., 32:9 for two-column menus + promo band).

Brightness & Visibility in Different Environments

Target 700–1000 nits for most interiors; 1200–1500 nits near glazed facades. Add AR coatings to reduce reflections and dim at night for comfort and energy savings. Test on-site with full-white and dark content to probe hotspots and reflections.

Integration with POS & CMS Systems

Choose a CMS that supports POS price sync, inventory-driven item availability, role-based approvals, and device health monitoring. Ensure RS-232/CEC or network APIs exist for power and input control. Standardize players (Android/SoC or Windows/Linux) to simplify support.

Pro tip: Pilot in one venue with A/B layouts before rolling out. Track attach rates, dwell time, and order throughput. Use those metrics to finalize templates and brightness policies.

Future Trends in Hospitality Digital Signage

• Smart menu boards with AI-driven content: Promote items based on inventory, weather, time of day, and loyalty profiles.

• Interactive stretched LCDs with touch capability: Guests browse allergens, customize orders, or explore wine lists without blocking staff.

• Sustainability: High-efficiency backlights, local dimming, and schedules that cut energy while maintaining readability.
