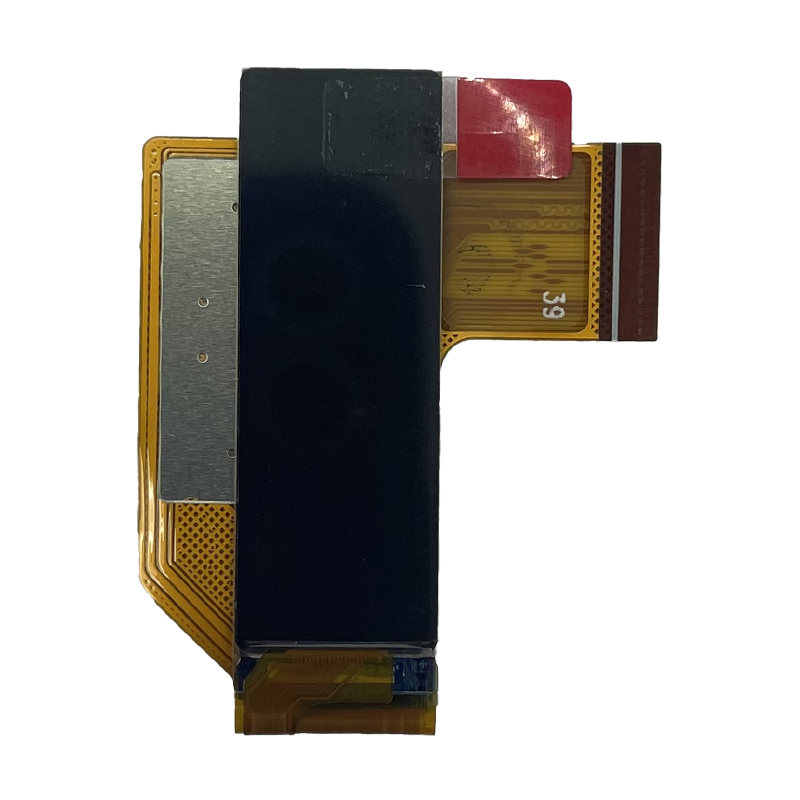

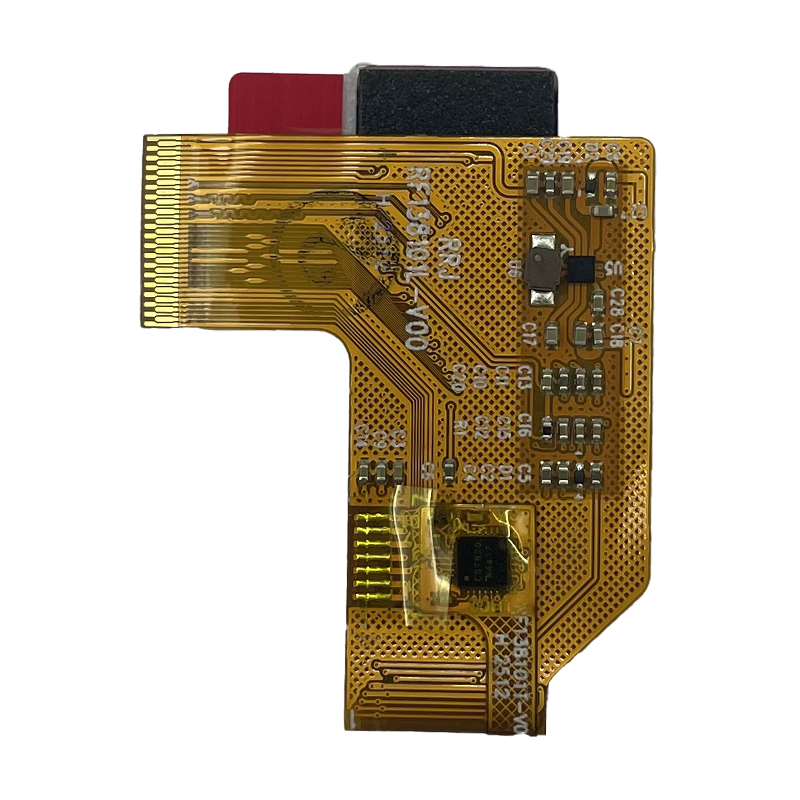

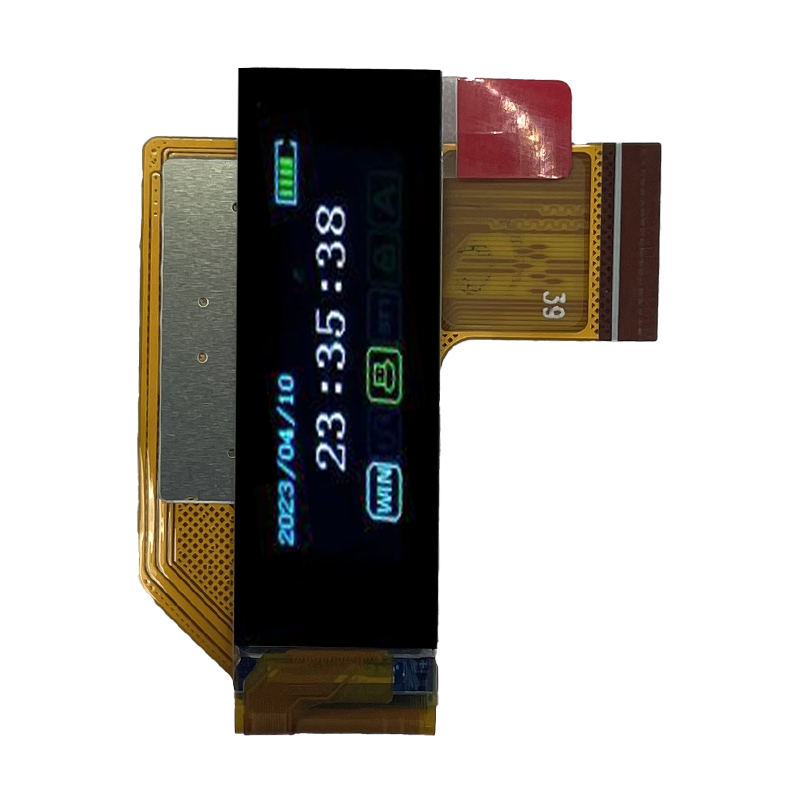

1.38-Inch AMOLED Display Module | 128×400 Resolution | Ultra-Low Power for Wearables

1.38-Inch AMOLED Display Module | 128×400 Resolution | Ultra-Low Power for Wearables

Model:AMOLED Size:1.38 Display Type:IPS Touchscreen:Capacitive Interface:SPI/QSPI Resources: 1.38INCH AMOLED Module
Inquiry Custom

DESCRIPTION

Shenzhen Brownopto 1.38-inch AMOLED module: 128×400 resolution, 600-nit brightness, MIPI/QSPI/SPI interfaces. Ideal for smartwatches, health trackers, e-cigarettes, and IoT devices. Ultra-low 2.7mW standby power. Request specs now!

Core Features
1.High-Definition Bar-Type Display

  • Resolution: 128×400 pixels, optimized for wearable devices

  • Brightness: 600 nits (Typ.), ensuring clear outdoor visibility

  • Color: 16.7M colors, 100% NTSC wide color gamut, 100,000:1 ultra-high contrast ratio

  • Viewing Angle: 85° full viewing angle (left/right, up/down) with no color shift

2.Ultra-Low Power Design

  • Operating Mode: 276mW (normal) | Standby Mode: Only 2.7mW

  • HBM Mode: 632mW (high-brightness scenarios)

  • Wide Temperature Support: -20℃~70℃ (operating) / -30℃~80℃ (storage)

3.Industrial-Grade Interface & Driver

  • Multi-Protocol Support: QSPI, SPI, Dual SPI

  • Driver IC: ICNA3306, integrated reset timing control

  • Power Management: ELVDD (4.6V), ELVSS (-2.4V) dedicated OLED power supply

4.Compact Structure

  • Module Dimensions: 12.435mm × 38.41mm × 0.78mm

  • Active Display Area: 10.675mm × 33.36mm

DisplayMode AMOLED
Screen Size (inch)1.38
Resolution128(W)×400(H)
ActiveArea(mm)10.6752 (H)×33.36(V)
Outline(mm) 12.435(H) ×38.410(V)×0.78(T)
TP Outline TBD
TechnologyTypeLTPS
ColorDepth16.7M
InterfaceQSPI/SPI/Dual SPI
Surface TreatmentHard Coating
Driver ICICNA3306
Luminance600 cd/m²
Viewing Angle Full view
Light Source Self-luminous
Temperature Operation -20°C to 70°C
Temperature Storage -30°C to 80°
Note 1: Requirements on Environmental Protection: RoHS

Technical Advantages

  • Reliability Certification: Passed high-temperature & high-humidity tests (96Hr@40℃/90%RH) and ESD tests (±6KV air discharge)

  • Optical Performance: Compliant with CIE1931 color gamut standard, supports BM-7 professional calibration

  • Fast Response: video mode at 60Hz frame rate, SPI clock speed up to 50MHz

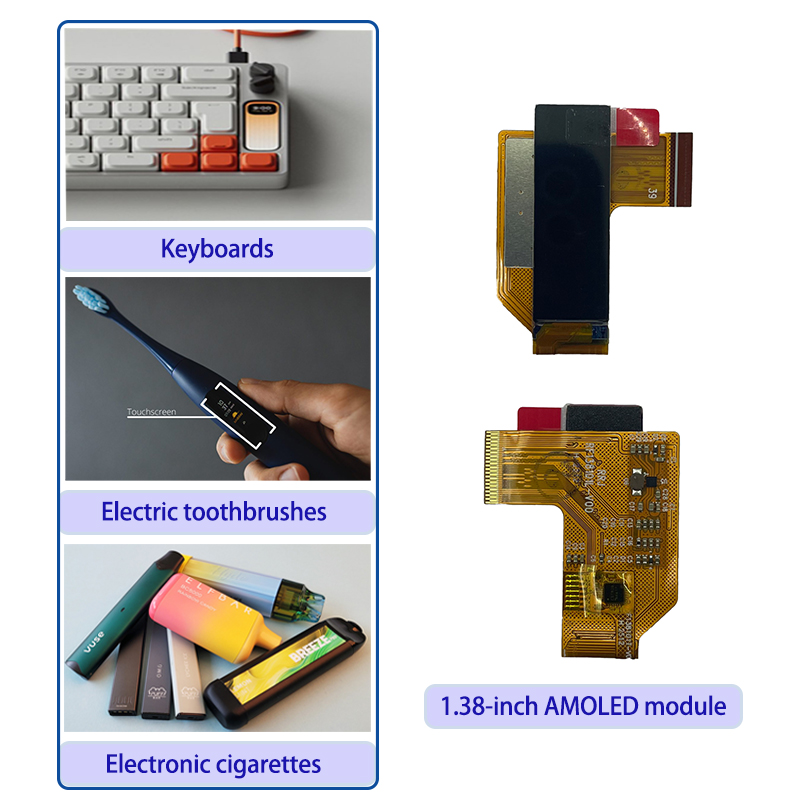

Target Applications

✅ Wearable Devices: Smartwatch displays, fitness tracker bands
✅ Healthcare: Portable glucose meters, heart rate monitors

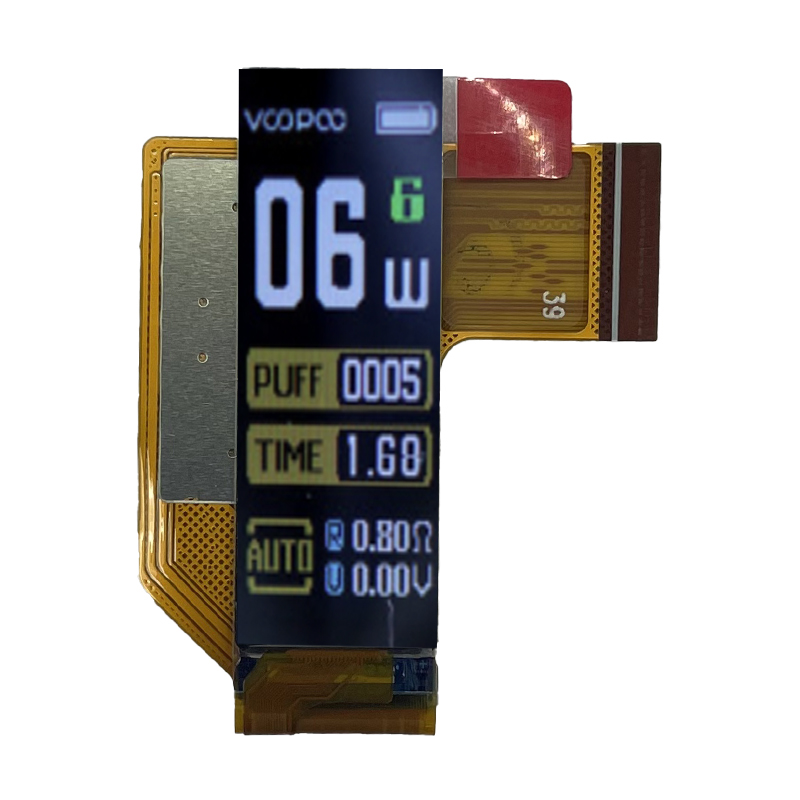

✅ Consumer Electronics: E-cigarette screens, electric toothbrush UI interfaces
✅ Industrial HMI: Compact control panels, IoT sensor terminals
