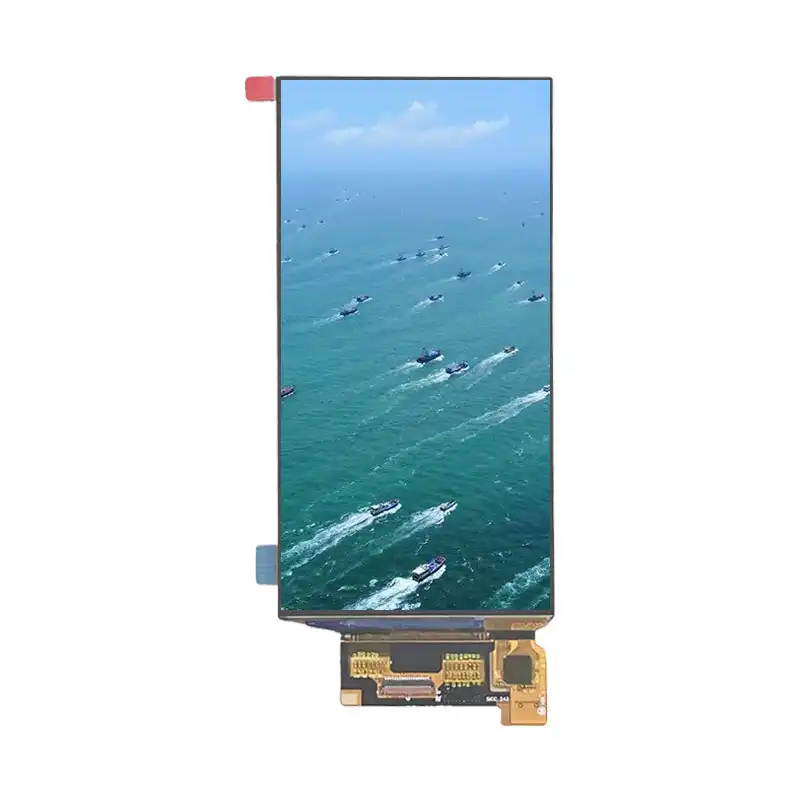

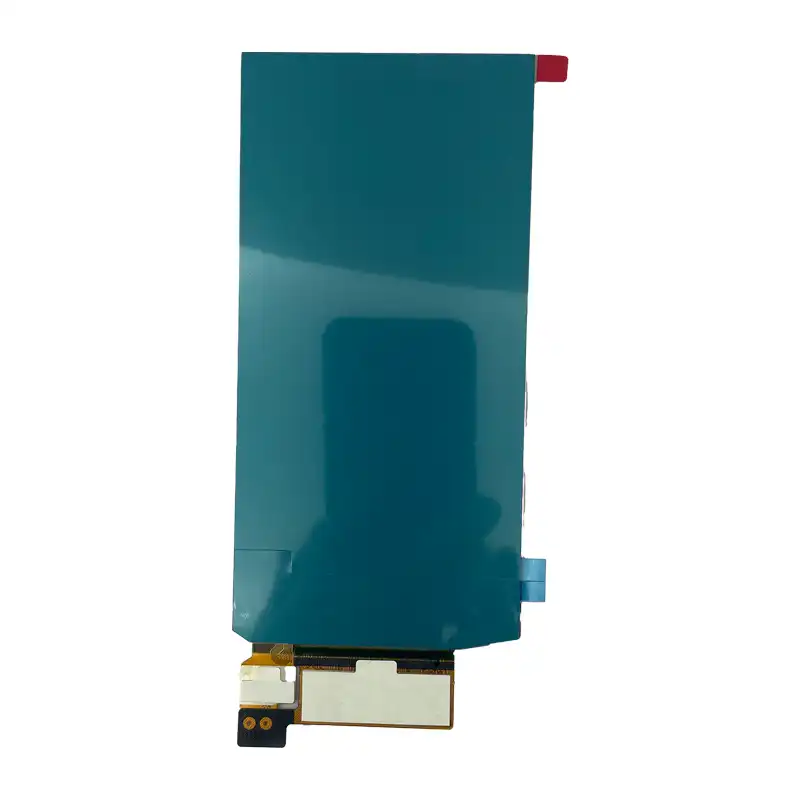

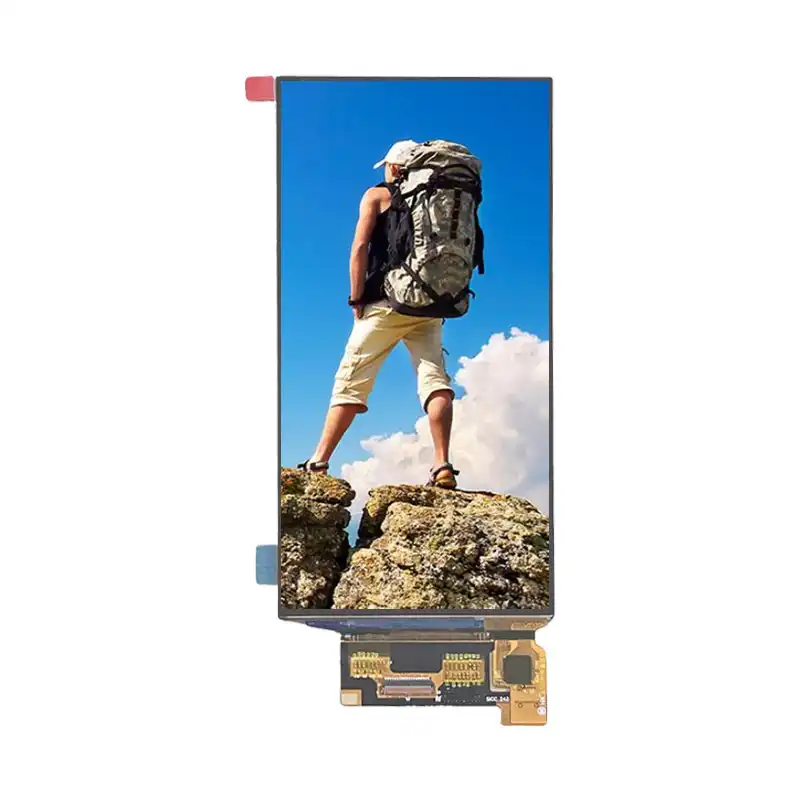

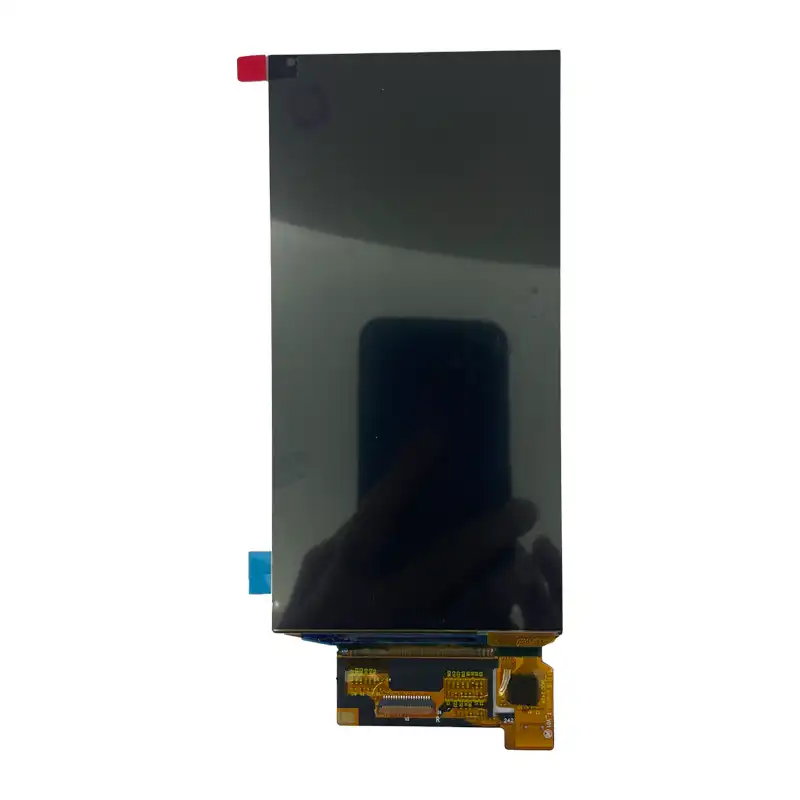

The 6.0 Inch AMOLED Display Module (Model: BR600108-A1) is a high-resolution, slim-profile flexible AMOLED panel designed for modern mobile and embedded applications. Featuring a 1080×2160 FHD+ resolution (18:9 aspect ratio), MIPI 4-lane interface, and integrated touch controller, this display delivers vibrant colors, deep blacks, and ultra-fast response times. Ideal for smartphones, industrial HMIs, medical devices, and smart wearables.
Key Features
Screen Size: 6.0 inch Flexible AMOLED Panel
Resolution: 1080 × 2160 pixels (FHD+, 18:9)
Aspect Ratio: 18:9 (Modern smartphone format)
Active Area: 68.256 × 136.512 mm

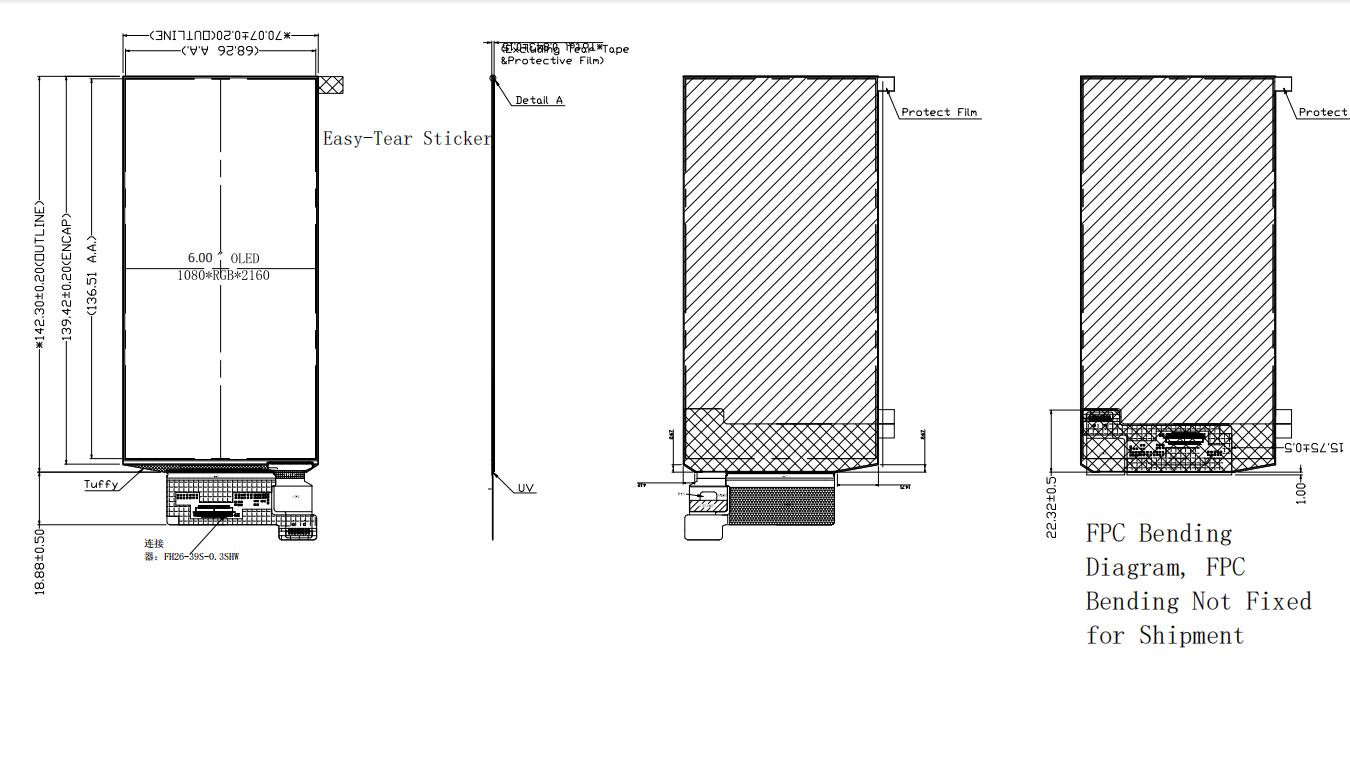

Module Size: 70.066 × 142.297 × 0.773 mm
Brightness: 360 cd/m² (Typical)
Contrast Ratio: >100,000:1 (True black, AMOLED advantage)
Interface: MIPI DSI 4-lane
Driver IC: CH13721C
Touch IC: CST148 (Capacitive Touch)
Technology: LTPS Backplane, Hard Coating Surface
Compliance: RoHS, Green Design
Technical Specifications
| Parameter | Value |
|---|---|
| Model No. | BR600108-A1 |
| Screen Size | 6.0 inch |
| Technology | Flexible AMOLED (LTPS) |
| Resolution | 1080 × 2160 (FHD+) |
| Aspect Ratio | 18:9 |
| Active Area | 68.256 × 136.512 mm |
| Module Size | 70.066 × 142.297 × 0.773 mm |
| Pixel Pitch | 63.2 × 63.2 μm |
| Interface | MIPI DSI (4-lane) |
| Driver IC | CH13721C |
| Touch IC | CST148 |
| Color Depth | 16.7M (24-bit) |
| Power Supply (VCI) | 3.0 V (Typical) |
| Power Supply (ELVDD) | 4.4 V (Typical) |
| Power Supply (AVDD) | 6.4 V (Typical) |
| Luminance (White) | 320 (Min) / 360 (Typ) cd/m² |
| Contrast Ratio | >100,000:1 |
| Response Time | <1ms (Typical) |
| Operating Temp. | -20°C ~ +70°C |
| Storage Temp. | -30°C ~ +80°C |
| Compliance | RoHS |
Application Scenarios
Smartphones & Wearables: High-end mobile devices, foldables, smartwatches.
Industrial HMI: Compact control panels, handheld terminals.
Medical Devices: Portable monitors, diagnostic tools with high contrast needs.
IoT Devices: Smart home hubs, voice assistants with visual feedback.
Handling & Integration Precautions
Avoid static discharge; handle in ESD-safe environment.
Follow correct power sequence: AVDD → ELVDD → RESET → MIPI signals.
Do not short ELVDD/ELVSS; use regulated power supply (e.g., PMIC).
Keep FPC connector clean and avoid dust during assembly.
Store in dry, dark place; avoid UV exposure and high humidity.
Frequently Asked Questions (FAQ)
What is the resolution of the 6.0 inch AMOLED module?
It has a resolution of 1080×2160 pixels (FHD+) with an 18:9 aspect ratio, ideal for smartphone-like displays.
What interface does this display use?
The module uses a MIPI DSI 4-lane interface for high-speed video transmission and supports command/video mode.
Which driver and touch ICs are used?
Driver IC: CH13721C, Touch IC: CST148. Both support stable performance and low power modes.
What is the typical brightness?
The typical luminance is 360 cd/m² under full white pattern, suitable for indoor and moderate ambient light.
Does it support brightness control?
Yes, brightness can be adjusted via MIPI command 51h with 256 levels (0x00 to 0xFF).
Is the display RoHS compliant?
Yes, the module meets RoHS environmental standards and is lead-free and green-design compliant.
Need samples or technical support for BR600108-A1?
