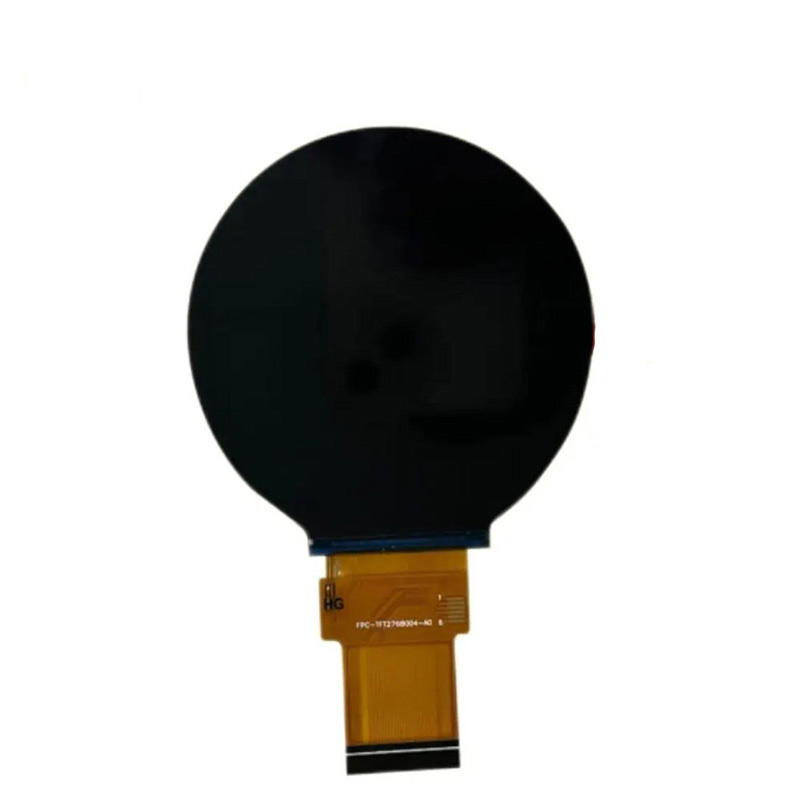

2.76 inch TFT LCD Special-Shaped RGB Interface without Touchscreen

2.76 inch TFT LCD Special-Shaped RGB Interface without Touchscreen

Model:BR24BS001A2-V0 Size:2.76" Circular | 480x480 Pixels Display Type:Special-Shaped Touchscreen:NONE Interface:RGB Resources:
Inquiry Custom

DESCRIPTION

BR280B007A2-V0 Introduction

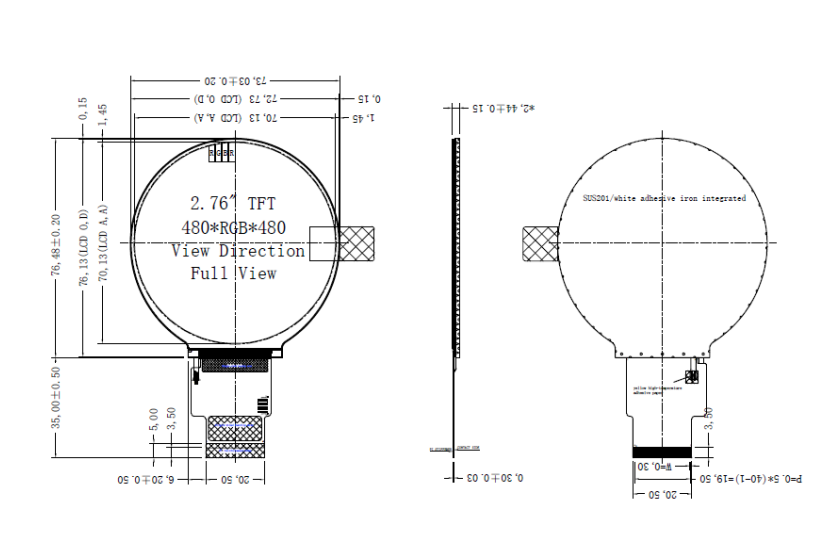

This TFT display module has a display format of 480*RGB*480 dots and uses an RGB interface for input data. It has a viewing angle of All O’CLOCK and uses the ST7701 IC driver. With 16.7 million display colors, it can produce true color images. The module size is 73.03(W)76.482.44(T) mm and the active area is 70.13(W)*70.13(H) mm. It has an operating temperature range of -20 to +70 ℃ and can be stored in temperatures between -30 to +80 ℃. The weight of the module is to be determined.

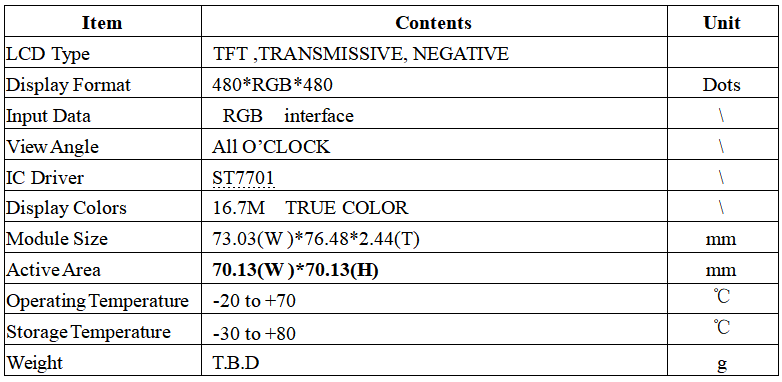

Correlation Parameter

tft lcd display module-6008
