10.1 inch For HDMI Signal TFT Display With Resistive Touch Screen Size:10.1" HDMI | 1024x600 P

Model:BR101JII3650-A3 V.1 Size:10.1" HDMI | 1024x600 Pixels Display Type:HDMI Display Touchscreen:Capacitive Interface:HDMI Resources:

Inquiry Custom

DESCRIPTION

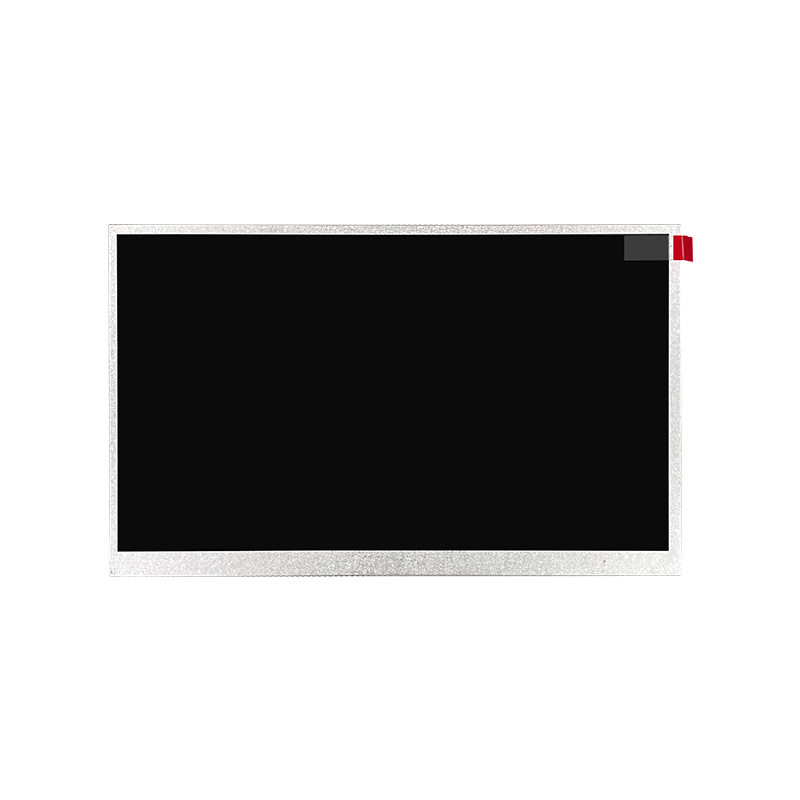

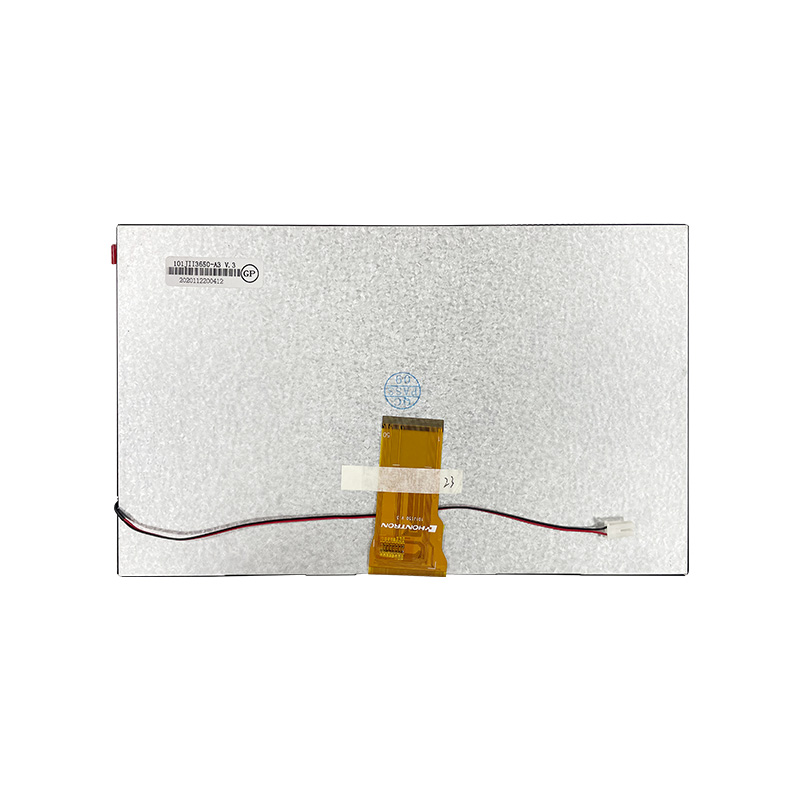

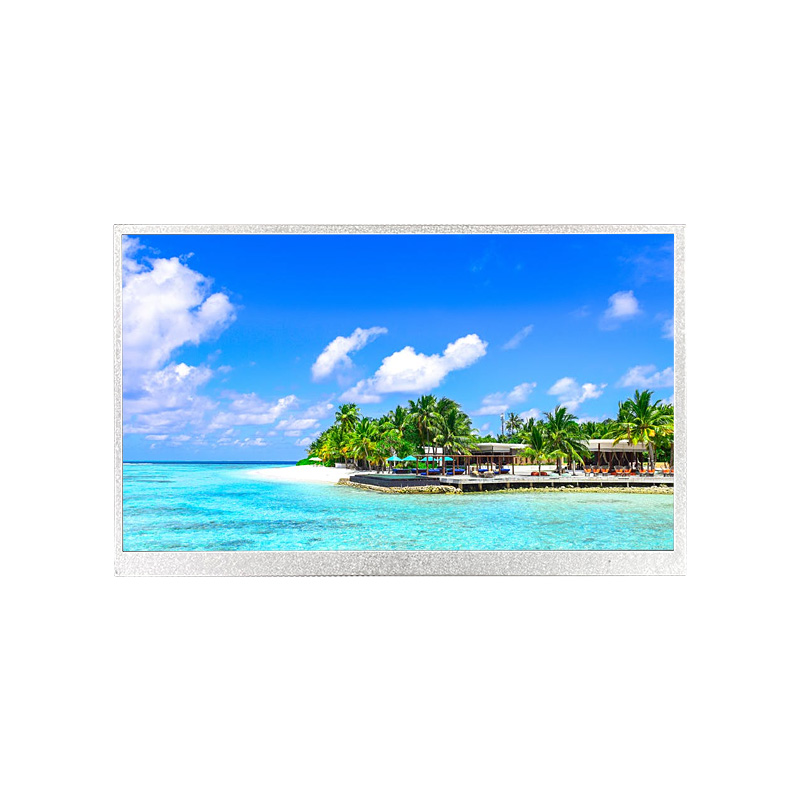

BR101JII3650-A3 V.1 HDMI Display Module Overview

Product Name: BR101JII3650-A3 V.1 HDMI Display Module
Manufacturer: Shenzhen Brownhan Technology Co., LTD
Release Date: February 28, 2020
Version: v1

Overview

The BR101JII3650-A3 V.1 HDMI Display Module is a versatile 10.1-inch display with a resolution of 1024×600, featuring a capacitive touch panel. This module is designed for use as a computer monitor and supports various mainstream gaming consoles and other multimedia devices.

Key Features

High Color Gamut and Longevity: The display offers high color gamut, pure chromaticity, and long-lasting color life.
Configurable Resolution: Hardware resolution is 1024×600, with software-configurable settings up to 1920×1080.
Multi-Touch Capability: Supports 5-point capacitive touch control with a tempered glass capacitive touch panel.
Broad Operating System Support: Compatible with Pi OS, Ubuntu, Kali, Retropie, and Jetson Nano. When used as a computer monitor, it supports Windows 11/10/8.1/8/7.
Audio Output: Equipped with a 3.5mm audio interface and supports HDMI audio output.

Technical Specifications

Display Interface: HDMI 1.1 (Type A)
Touch Interface: USB 1.1 (Full Speed, Micro USB)
Screen Size: 10.1 inches diagonal
Resolution: 1024RGB×600 pixels
Display Type: TFT/IPS
Audio Power Amplifier: 3W per channel output power in BTL mode

Physical Characteristics

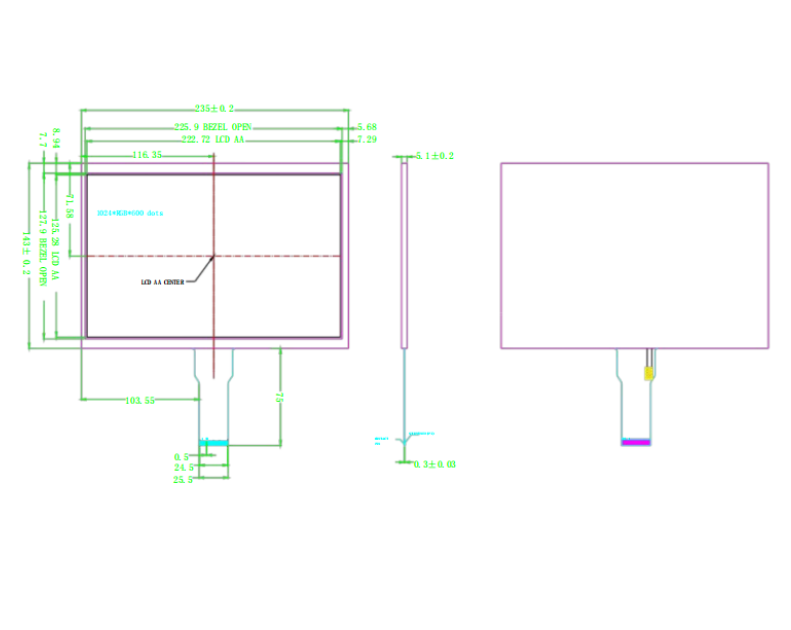

Module Dimensions: 235.00×143.00 mm
Weight: 483 grams
Materials: ROHS compliant

Operating Environment

Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Humidity: Up to 60% RH at 60°C

Installation and Operation

For PC Use: Supports Windows 11/10/8.1/8/7 systems. Connect the USB interface for touch functionality and the HDMI interface for display functionality.
For Jetson Use: Connect to Jetson Nano's USB and HDMI interfaces; no additional software configuration is required.
For Other Devices: Detailed installation steps and precautions are provided to ensure stable operation.
