HOME>PRODUCT > TFT LCD DISPLAY > Standard LCD Displays >
  • 7.0 inch Standard High brightness LVDS interface TFT without Touchscreen1
  • 7.0 inch Standard High brightness LVDS interface TFT without Touchscreen2
  • 7.0 inch Standard High brightness LVDS interface TFT without Touchscreen3
  • 7.0 inch Standard High brightness LVDS interface TFT without Touchscreen4

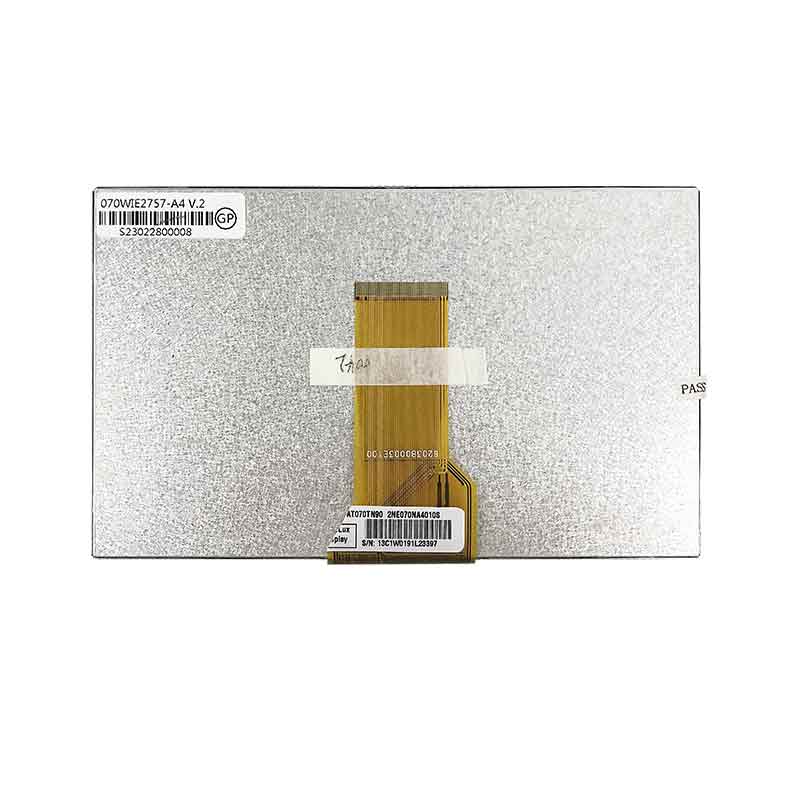

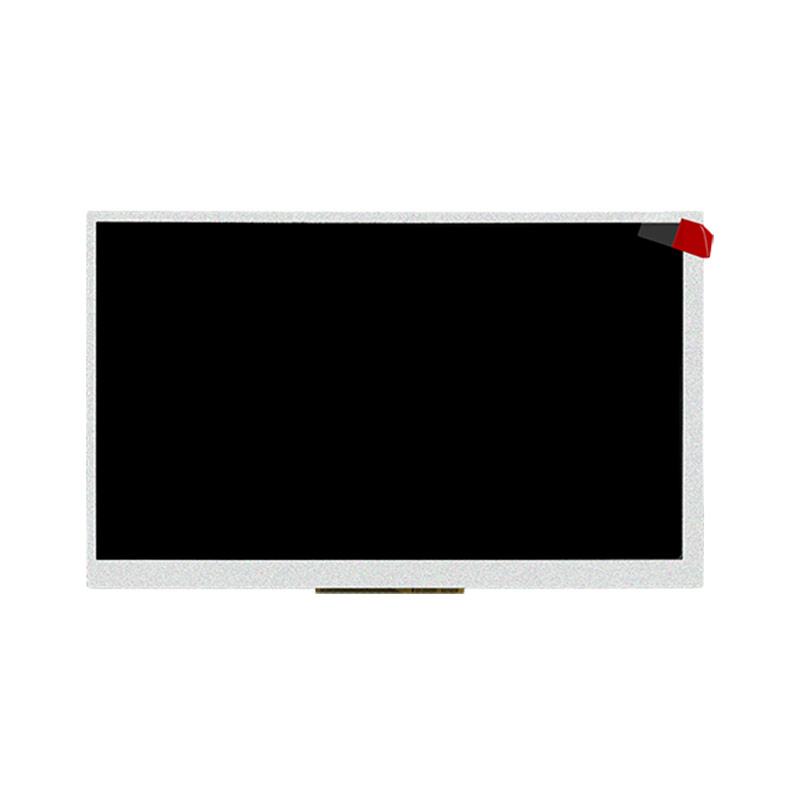

7.0 inch Standard High brightness LVDS interface TFT without Touchscreen

7.0 inch Standard High brightness LVDS interface TFT without Touchscreen

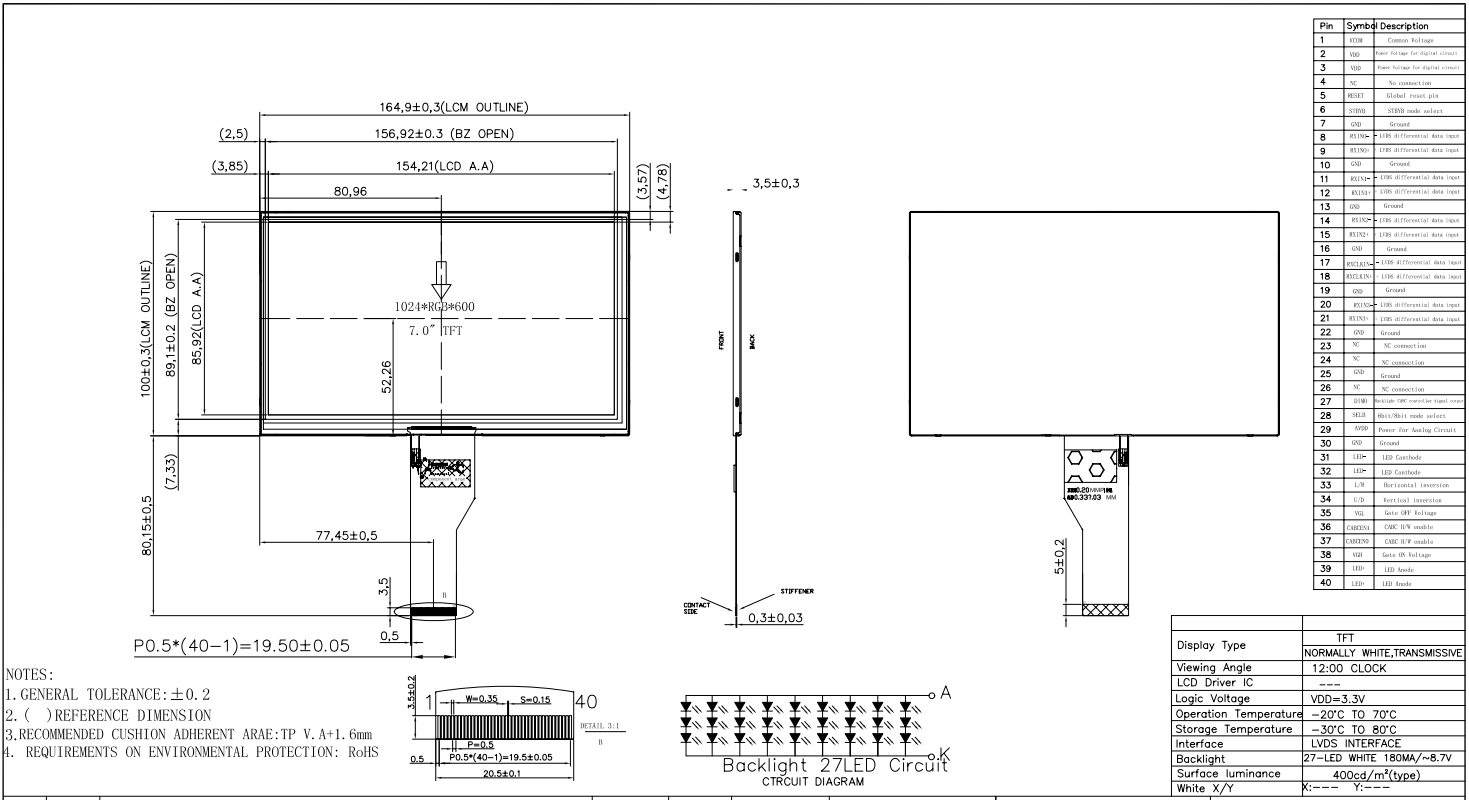

Model:BR07OJIE2735-A4 V.10 Size:7.0" Diagonal | 1024x600 Pixels Display Type:Standard Touchscreen:None Interface:LVDS Resources: 070JIE2735-A4-V.10 SPEC（40pin）
Inquiry Custom

DESCRIPTION

BR07OJIE2735-A4 V.10 Introduction

This LCD module employs an a-Si TFT active matrix as its driving element, delivering a resolution of 1024 x 3 (RGB) x 600. It features a Normal White, Transmissive display mode and a finely tuned pixel pitch. Additionally, its surface has been treated with a hard coating for enhanced resilience. The module employs an RGB-stripe color arrangement, with communication facilitated via a LVDS interface. This module, with its remarkable performance and robust features, can serve a wide range of applications.

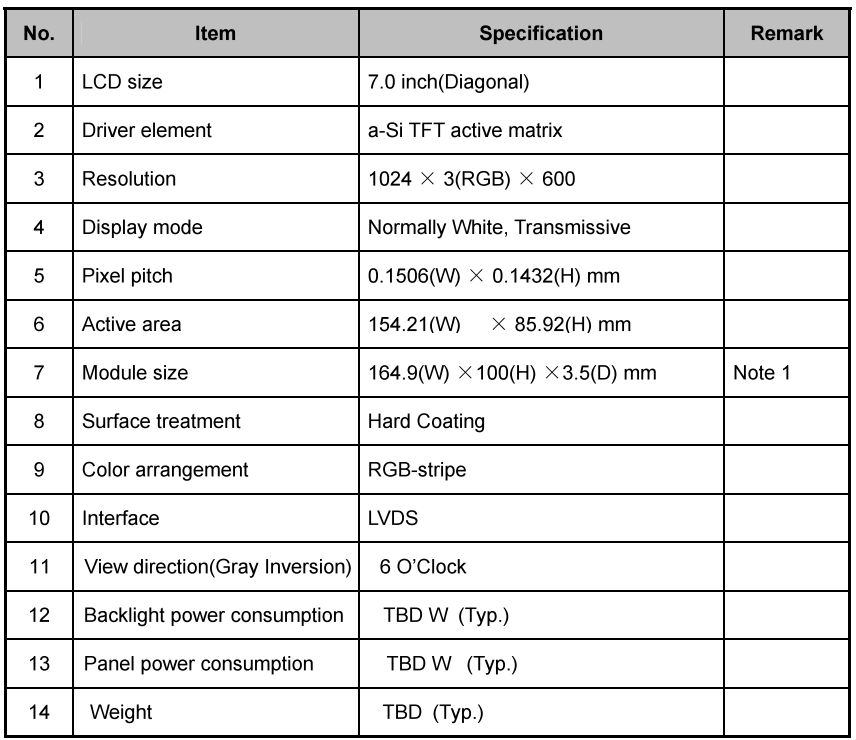

Correlation Parameter

tft lcd display-7101

Latest articles

BR07OJIE2735-A4 V.10 Custom Solutions

  • TFT LCD Display Customizations

    TOUCHSCREEN ENHANCEMENT

    Boost your device’s interactivity with our advanced touchscreen technology. We tailor the panel shape and glass thickness to your requirements, enhancing your product’s user experience.

  • TFT LCD Display Customizations

    CUSTOM CABLE DESIGN

    Steady and efficient hardware connections play a vital role in guaranteeing optimal display performance. Our bespoke cabling solutions ensure consistently stable and efficient connectivity, supporting your display unit’s essential operations.

  • TFT LCD Display Customizations

    INTERFACE CUSTOMIZATTFT CUSTOM

    Upgrade your device's performance with our custom display interface solutions. We offer a wide range of commonly used interfaces, such as MIPI, TTL/RGB, MCU, LVDS, EDP, and SPI, tailored to meet your specific device requirements for maximum efficiency.

  • TFT LCD Display Customizations

    COVER GLASS CUSTOMIZATION

    Protect and enhance your display with our premium cover glass solutions. Our customized options, including appropriate thickness and optical bonding, ensure long-lasting durability and superior performance.

  • TFT LCD Display Customizations

    SOFTWARE/FIRMWARE CUSTOMIZATION

    Elevate display performance and user experience with our customized software and firmware solutions. We optimize the user interface to meet your device's specific needs, ensuring maximum operational efficiency.

  • TFT LCD Display Customizations

    INTELLIGENT CONTROL BOARD

    Utilizes high-performance processors and advanced algorithms to achieve fast response and high-efficiency data processing capabilities. Supports various communication protocols to ensure seamless connection with external devices.

  • TFT LCD Display Customizations

    BACKLIGHT CUSTOMIZATION

    We offer comprehensive backlight customization services to meet unique requirements. Our team collaborates closely with customers to develop tailored solutions that enhance the visibility and performance of our TFT LCD display modules, precisely matching application needs.

  • TFT LCD Display Customizations

    RESOLUTION CUSTOMIZATION

    We offer resolution customization services to meet unique visual requirements. Our team collaborates closely with customers to develop tailored resolutions that enhance the clarity and performance of our TFT LCD display modules, precisely matched to application needs.

  • TFT LCD Display Customizations

    CUSTOM MOUNTING OPTIONS

    Mounting Add-Ons: We offer a range of custom mounting options for our TFT display modules. These include various mounting brackets, bezels, and other accessories designed to ensure secure and precise installation in a variety of applications.
